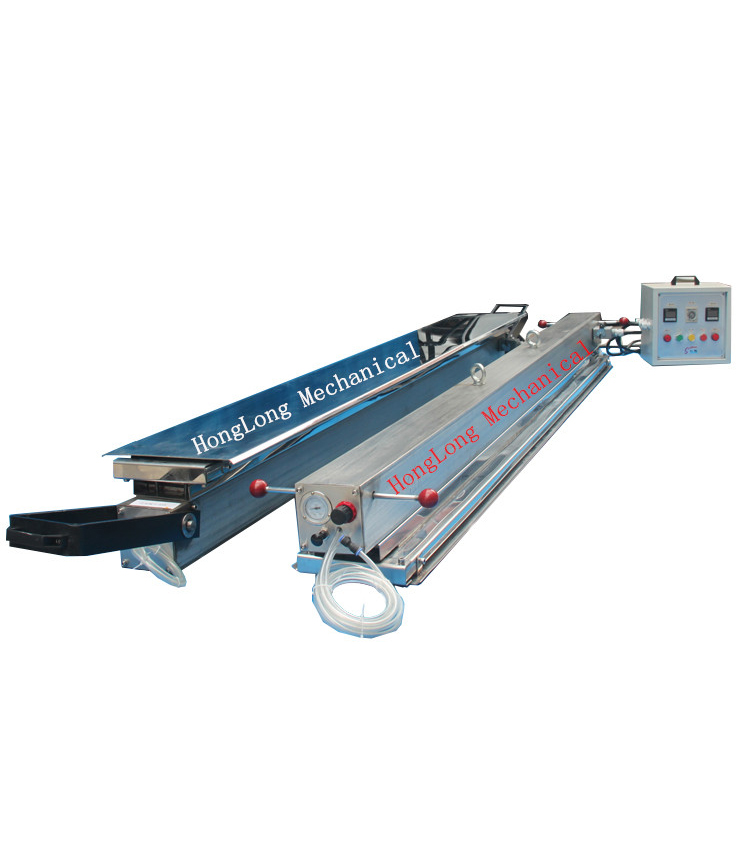

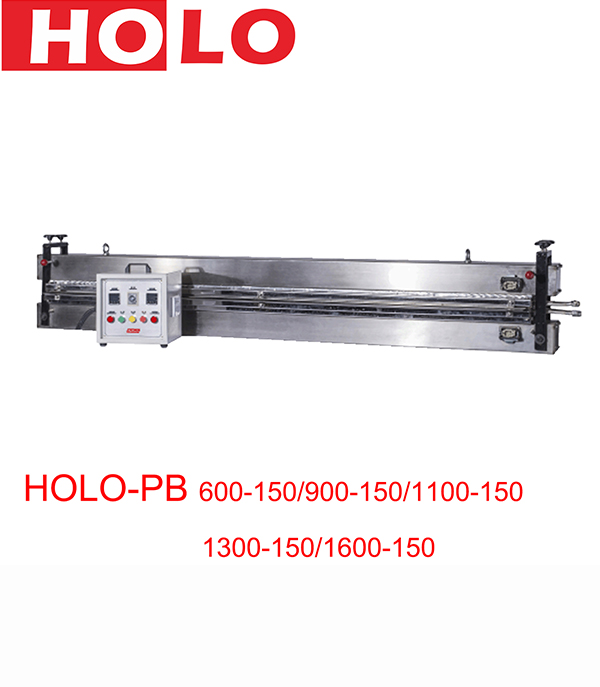

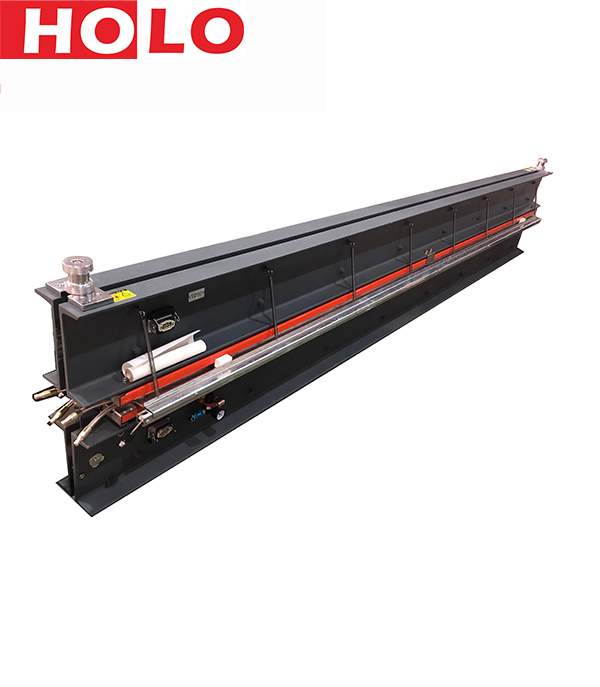

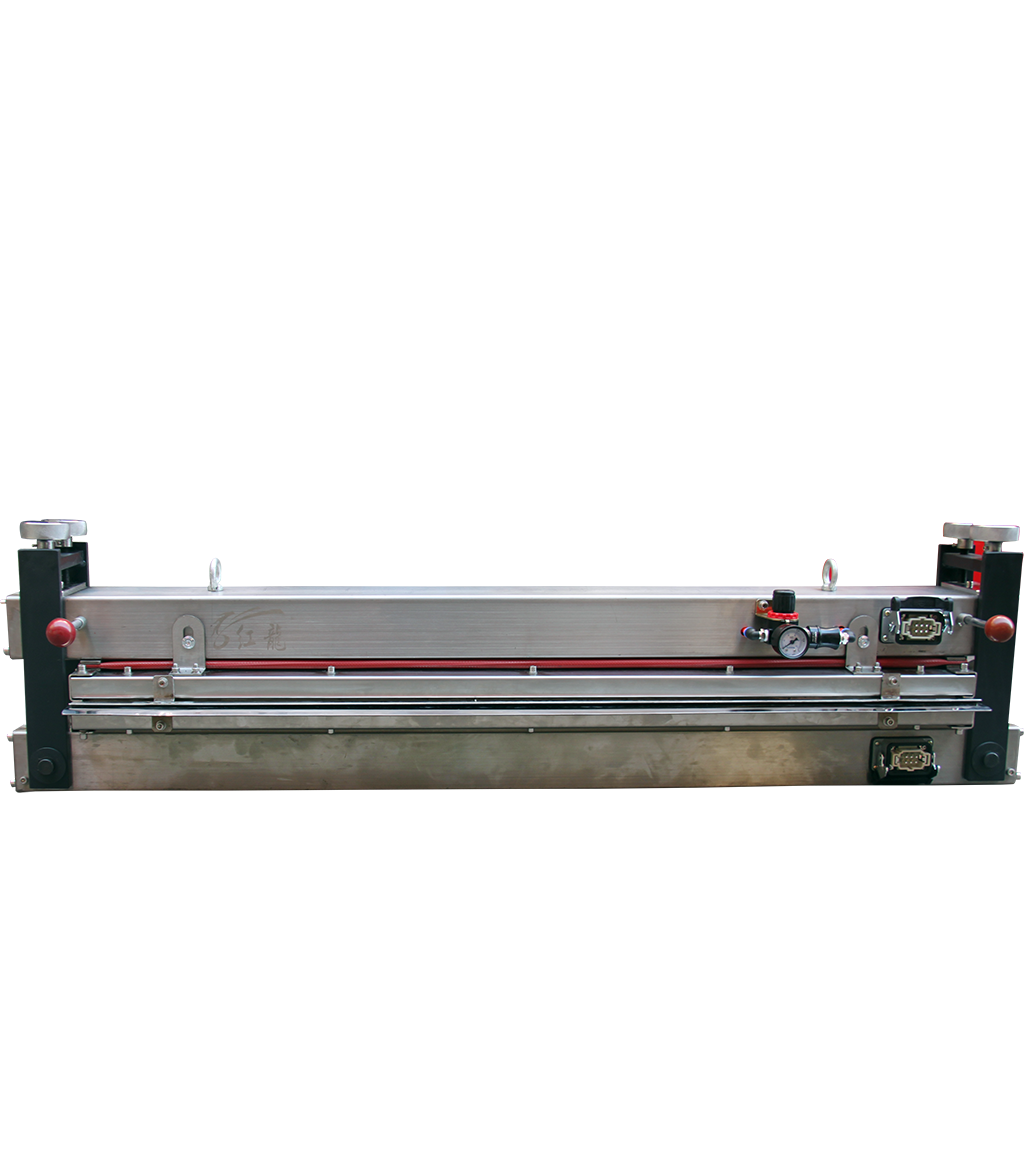

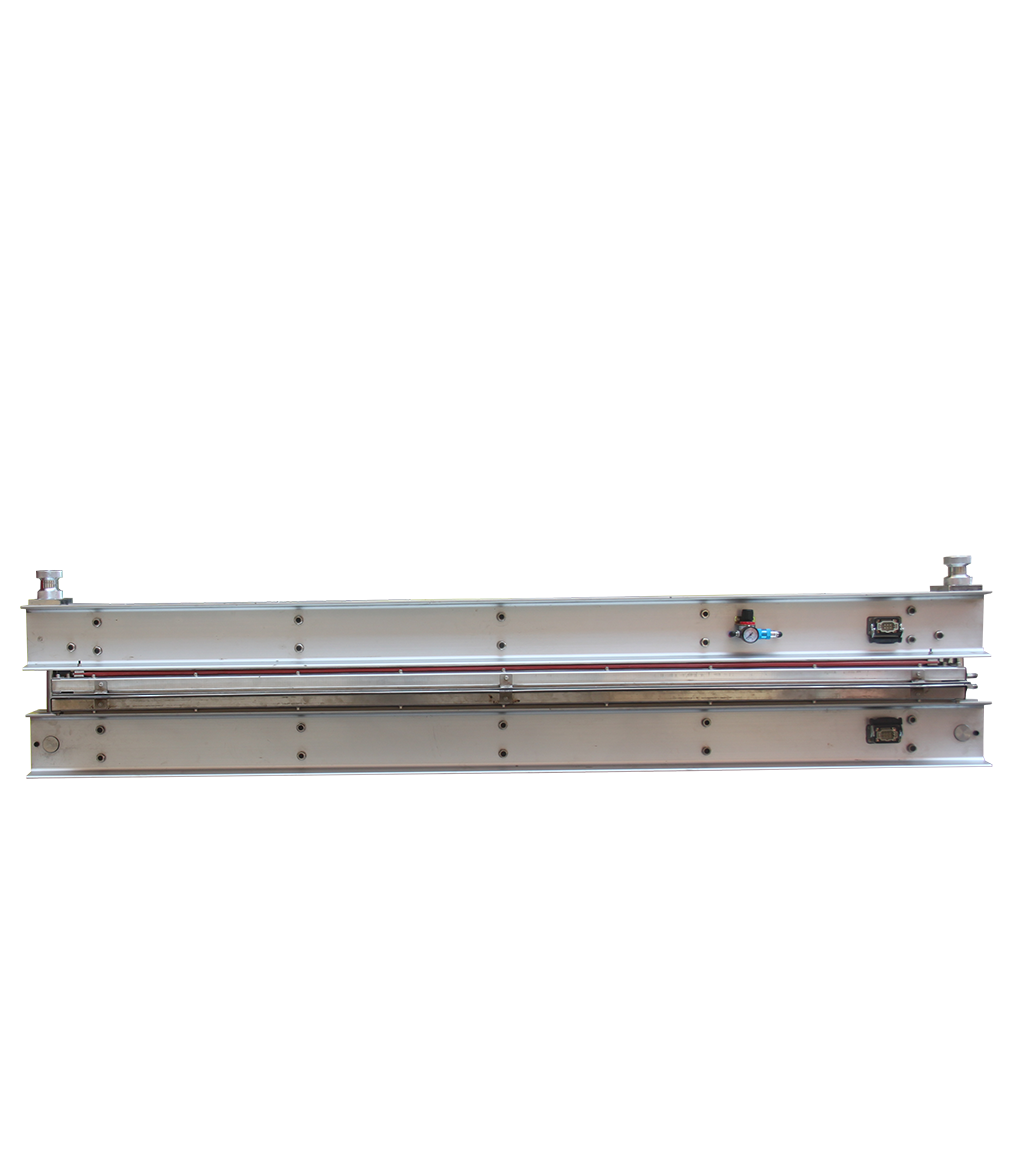

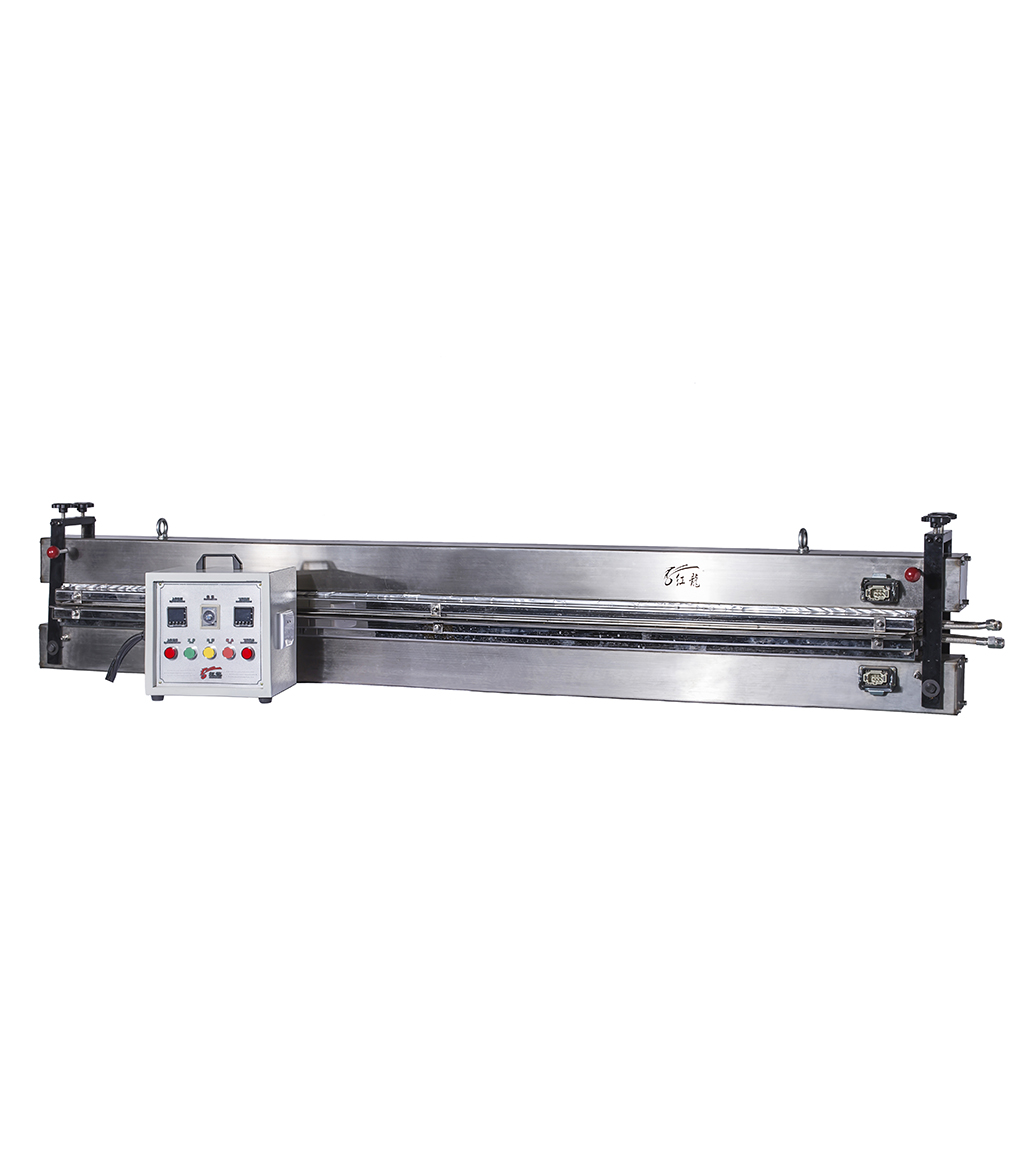

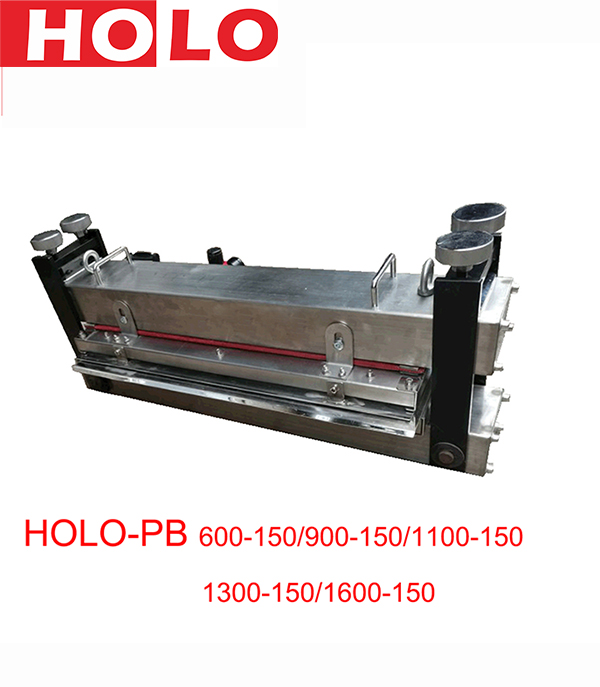

HOLO PB Conveyor belt Water Cooled Press Machine

Product Description
Product Description

    Available for several conveyor belt widths from 600mm up to 5000mm.


    From 600mm-2100mm press machine made by stainless steel,Up to 2100mm press made by Aluminium.


    Up and Bottom heating platen can set to different temperature separatly.


    Width of heating platen: 150mm or 200mm.



Features and Benefits:
Features and Benefits:

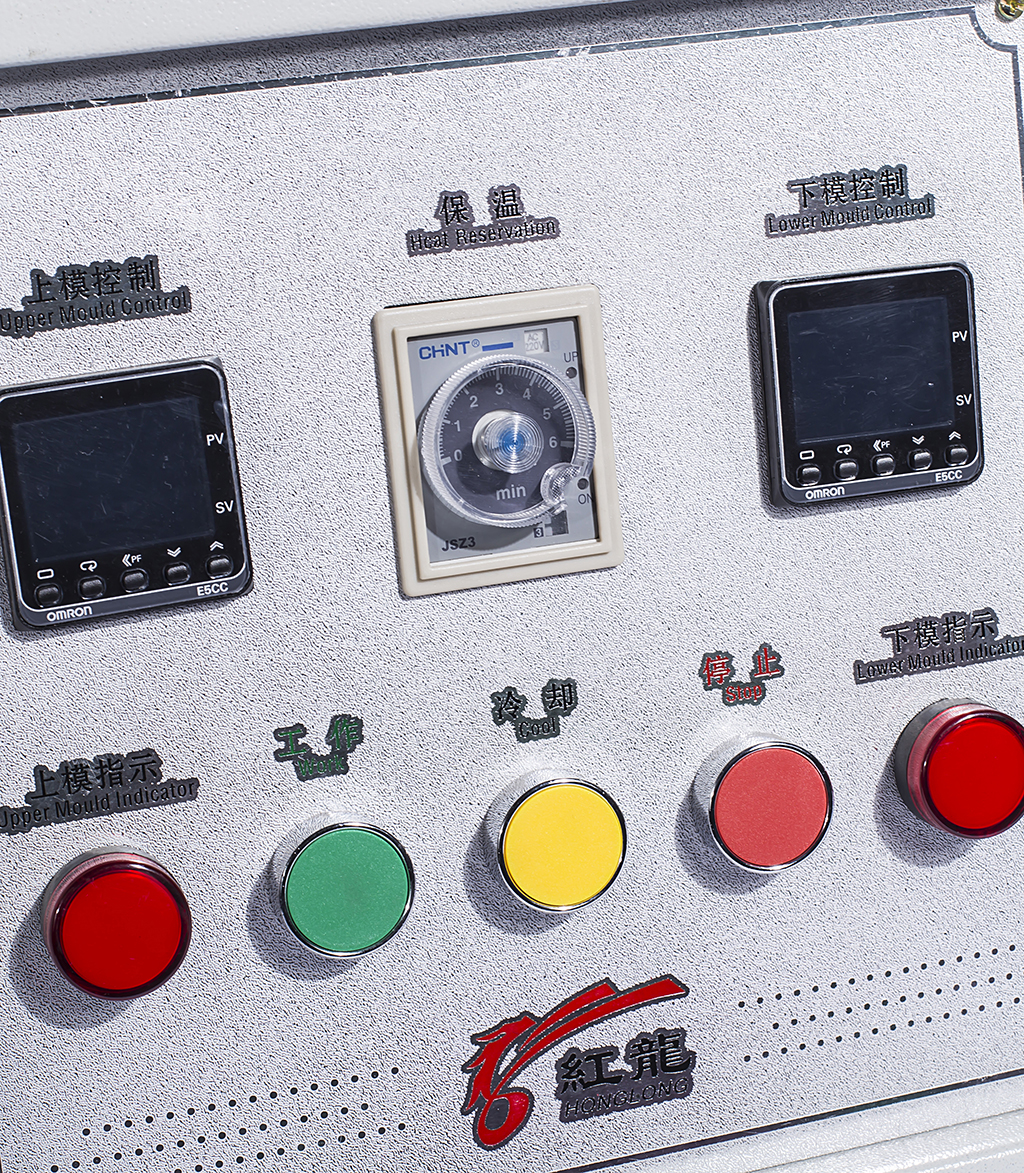

    Easy to program control unit


    Up and bottom plate can be different temperature


    Ongoing works without breaks


    For widest Conveyor belt up to 5000mm


    Economy and practicality

Accessories and options

    Temperature control box water pump ship along with machine


    Air Compressor need prepare by yourself


    Stand frame is available for option

Parameters110013001600210032004200
Effective belt length (mm)100012001500200030004000
Effective belt width(mm)150  (200)150(200)150  (200)150  (200)150  (200)150  (200)
Upper weight( KG)35425794160208
Lower weight(KG)414963102208210
Total weight(KG)8791125196340430
Total length      (mm)141015601910242035504555
Total width(mm)310320390390550650
Maximum Pressure      (Bar)222222
Max. temperature     ( ℃)200200200200200200
Package size(L*W*H) (mm)2050*480*5402300*480*5402450*550*4902950*600*4903730*830*3004730*830*300
Shipping Weight(KG)133150170250400500
Power(W)3300360048006300900012000
Note: Considering that the data update takes time, please ask the salesperson for accurate packaging data and machine size
