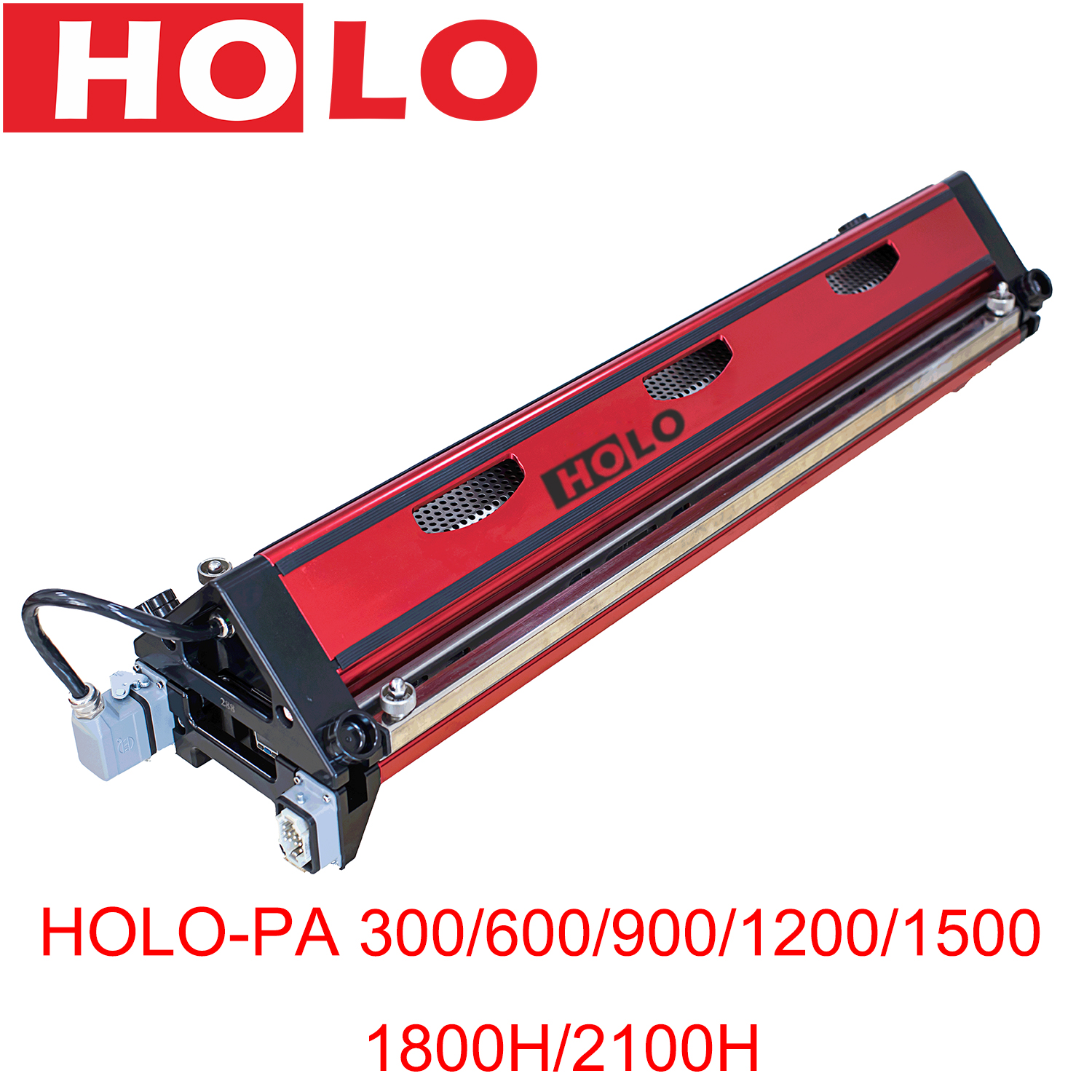

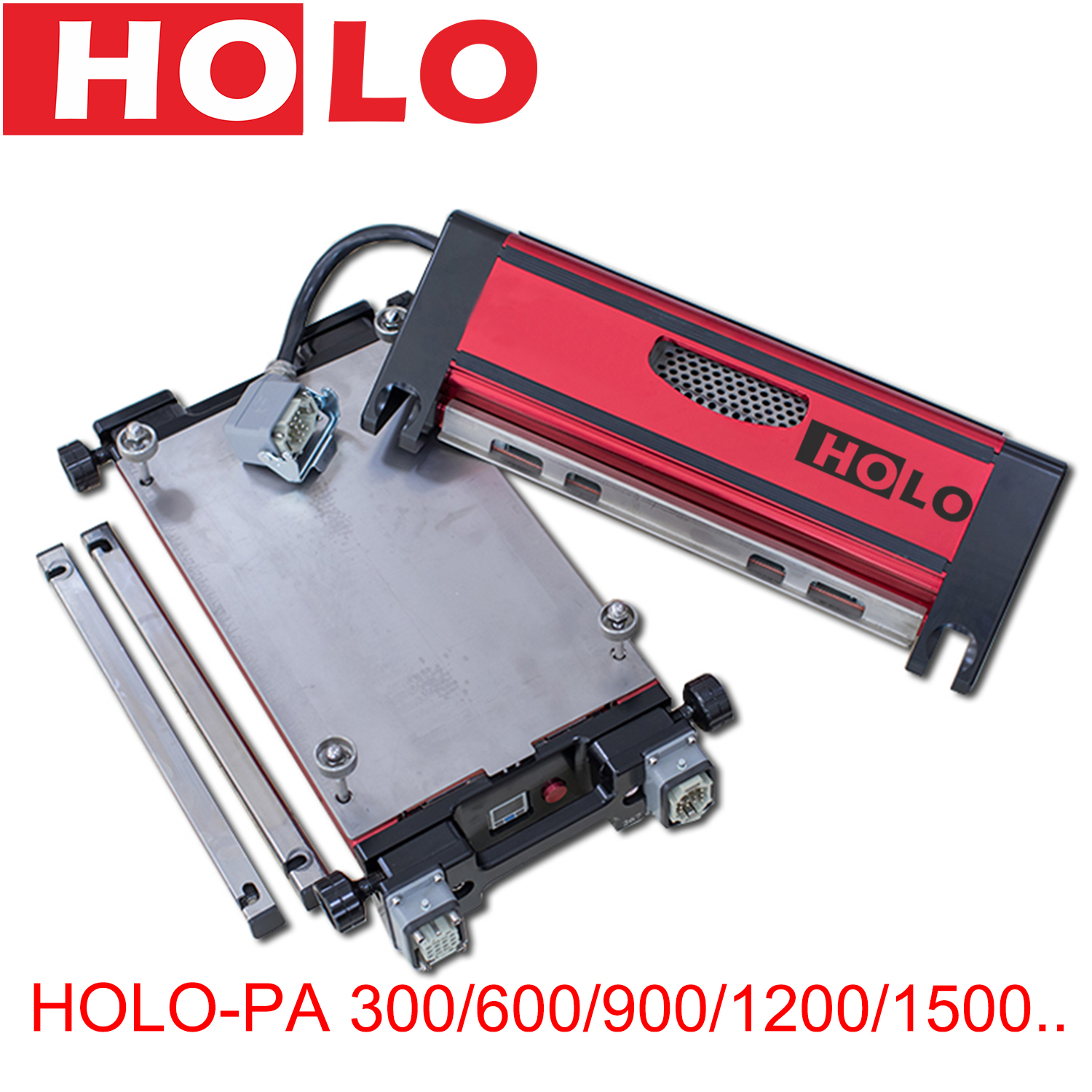

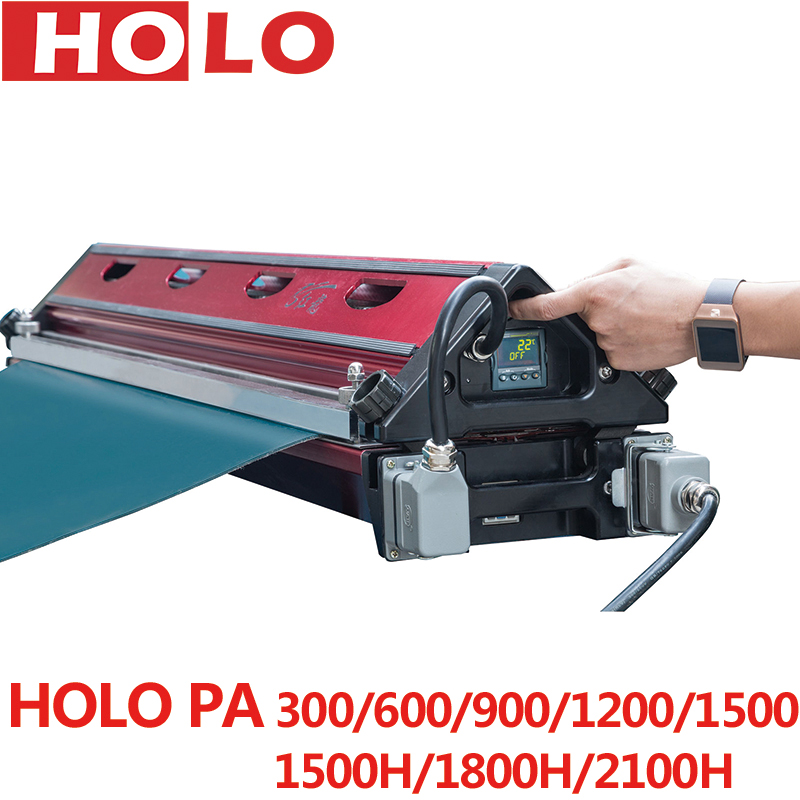

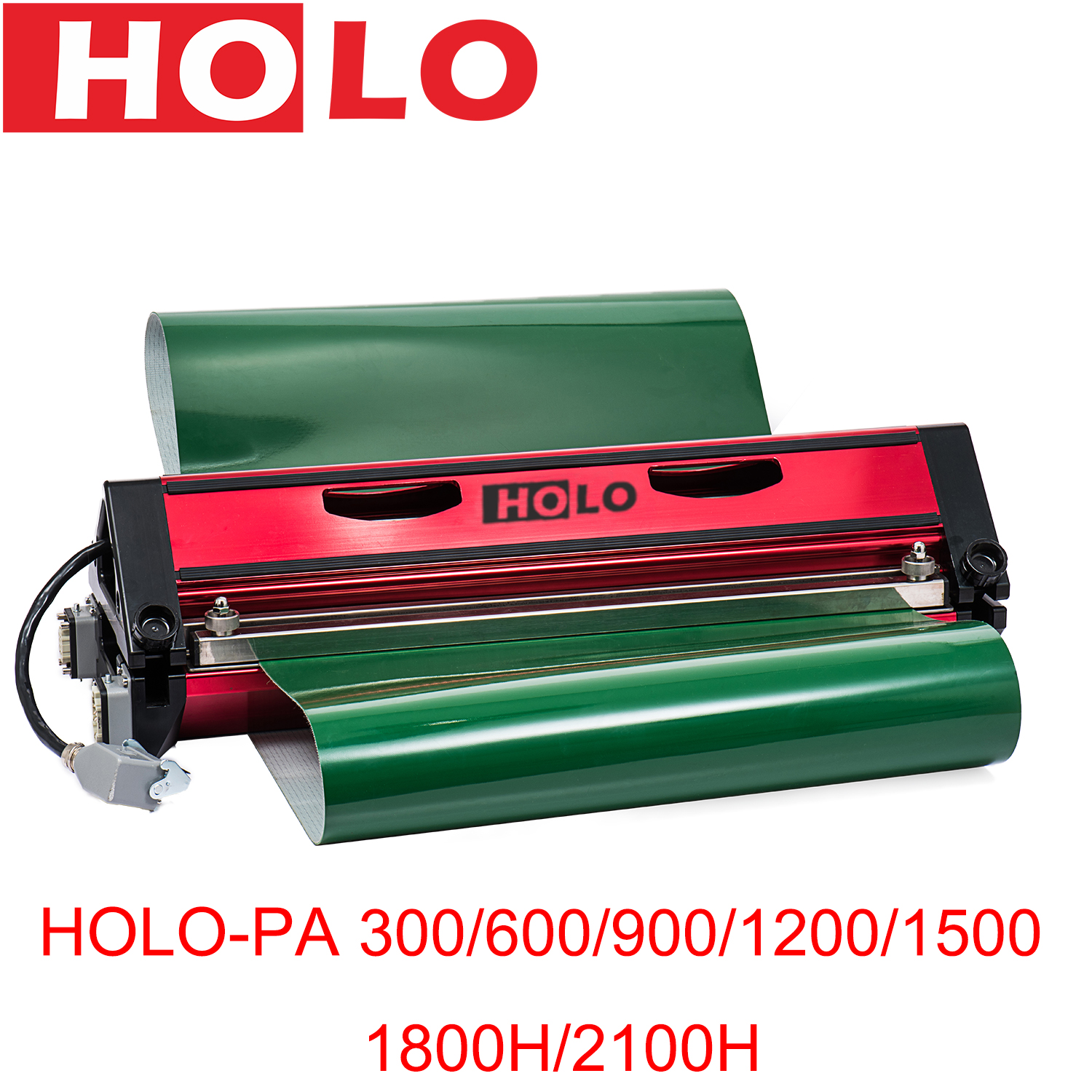

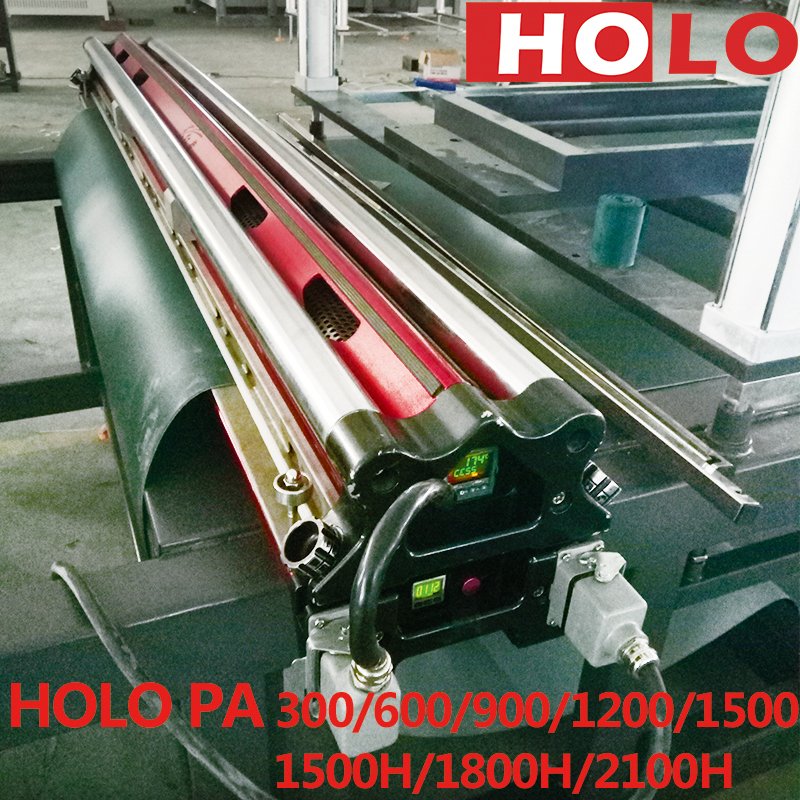

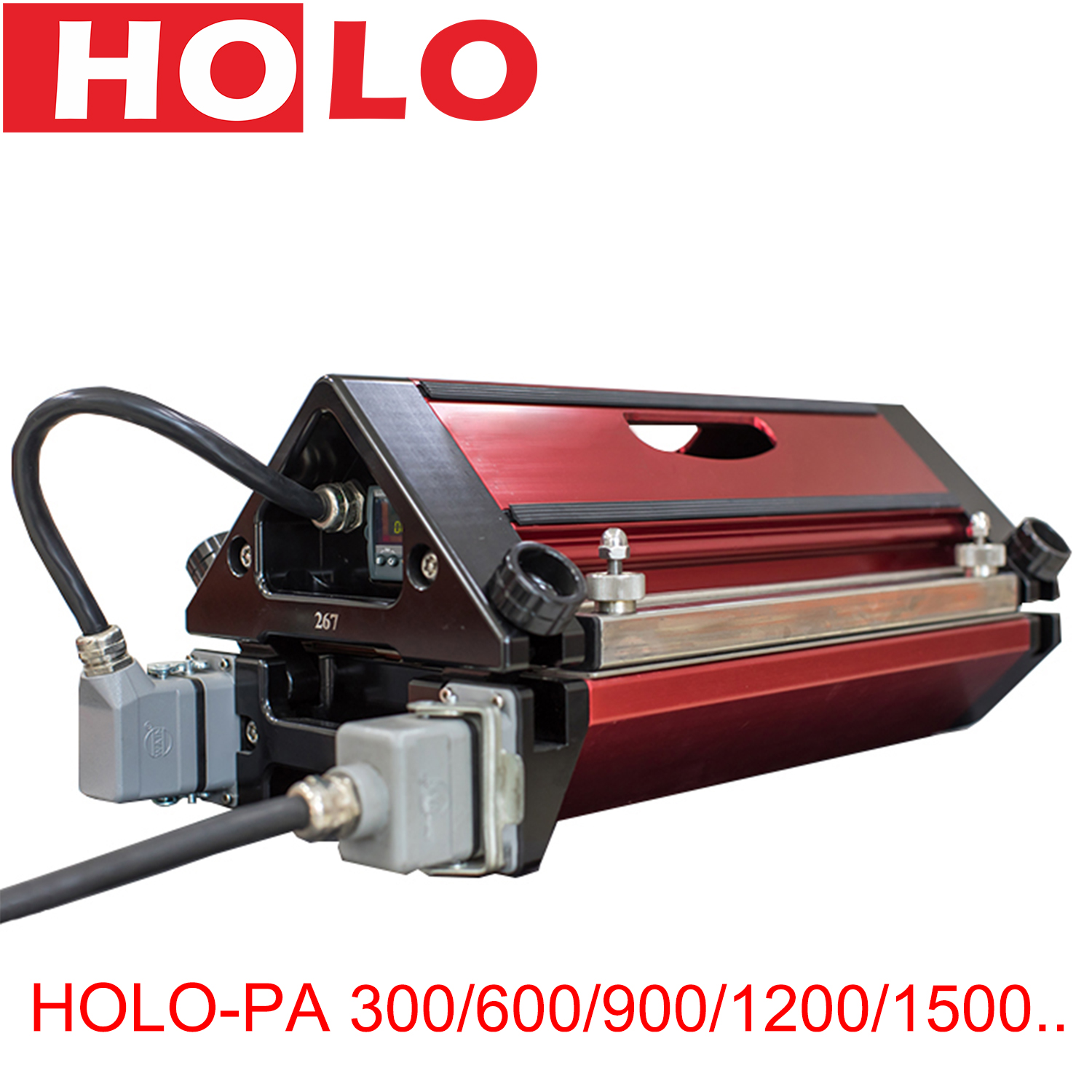

HOLO PA Air Cooled Press

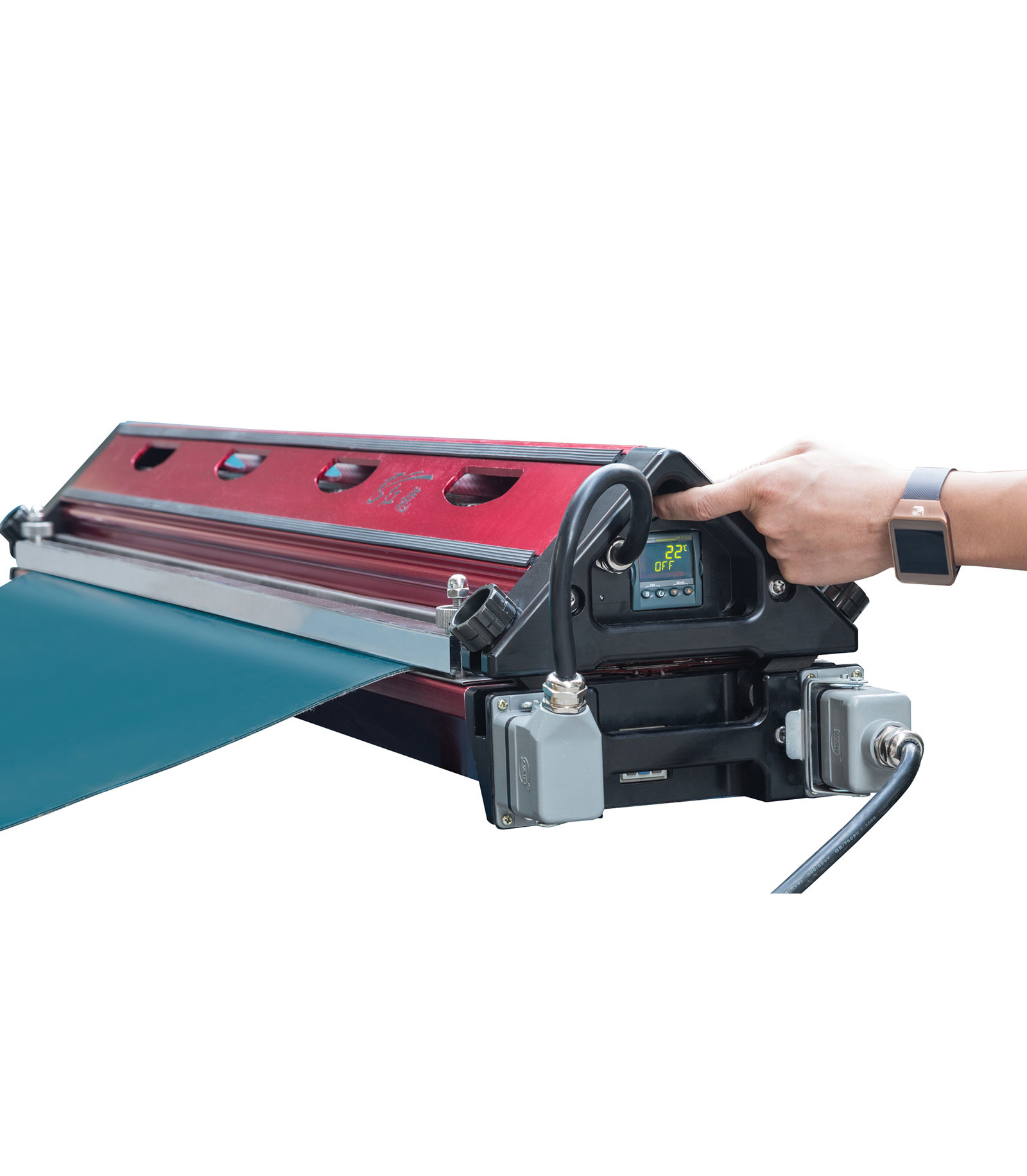

Holo PA Air cooled press has all componets integrated into the tool,allowing a user to plug it simply into electricity and it's ready for use.

Fast and Portable Splicing,can be bring to anywhere easily.

Specifications:

•Holo PA series air cooled press,have different models from 300mm to 2100mm.

•Used for PVC/PU/PVK Belt and thermoplastic belt materials etc.

•Portable splice press,light weight and with flight case as standard packing,easily removed to anywhere for on-site joint work.

•Fast Splicing:Heating and cooling time:no more than 12mins.

•All-in-one design:Integrated air cooling system and also air compressor inside.To ensure that belt is quickly cooled down and auto press on,without water pump or additional air compressor.The air compressor made in Germany.

•Reliable and automatic temperature control with time controlling(in one meter,also you can sent by yourself).High quality Euro thermistor.The temperature controller from Eurothern,made in UK.

•Air pressure controller (set the air pressure and display the current pressure),High quality SMC Controller.

Product Description

1.Air Cooling

Use High Quality Axial fan from Taiwan,With CE.

Anodizing Surface,no painting.

-----------------------------------------------------------------

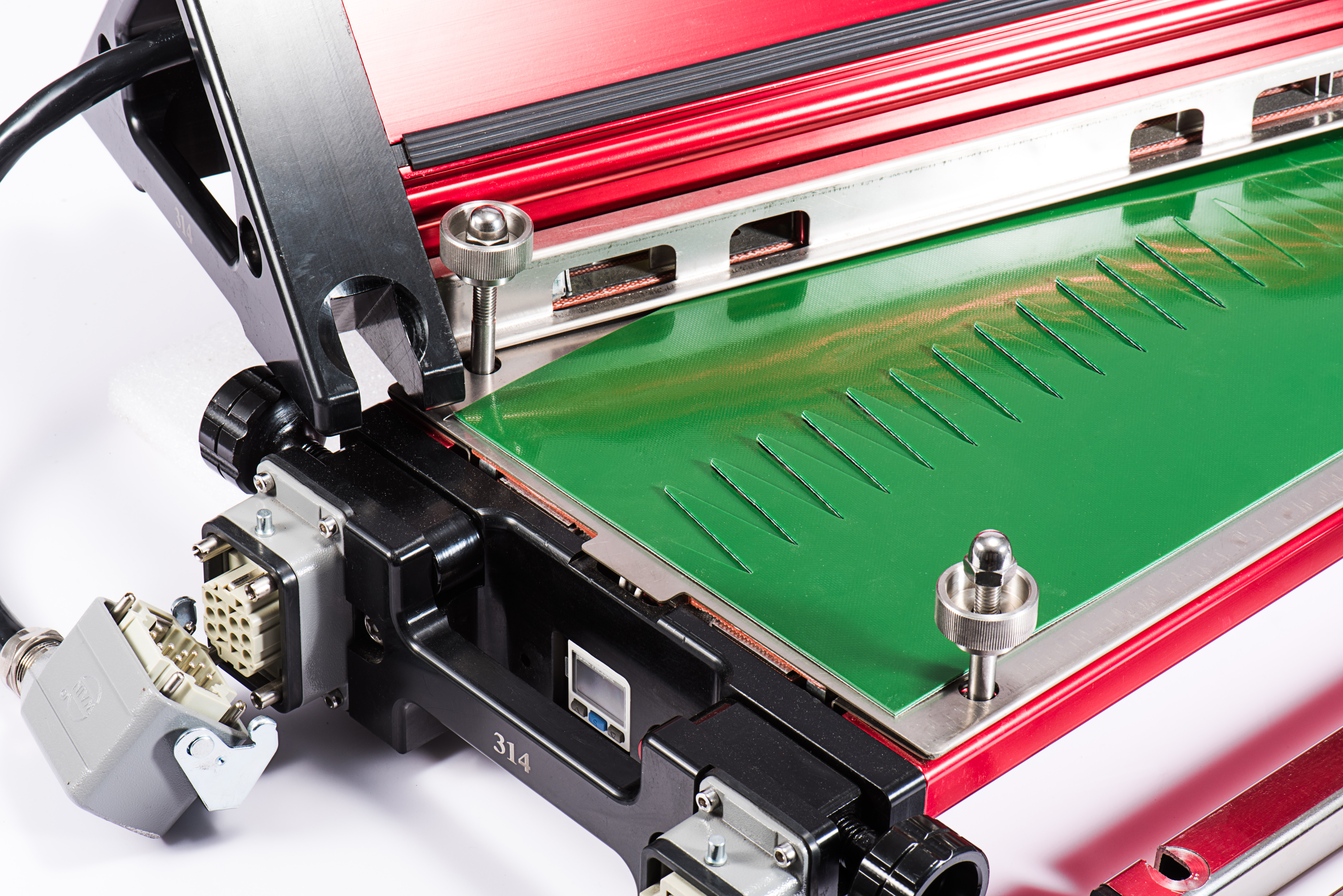

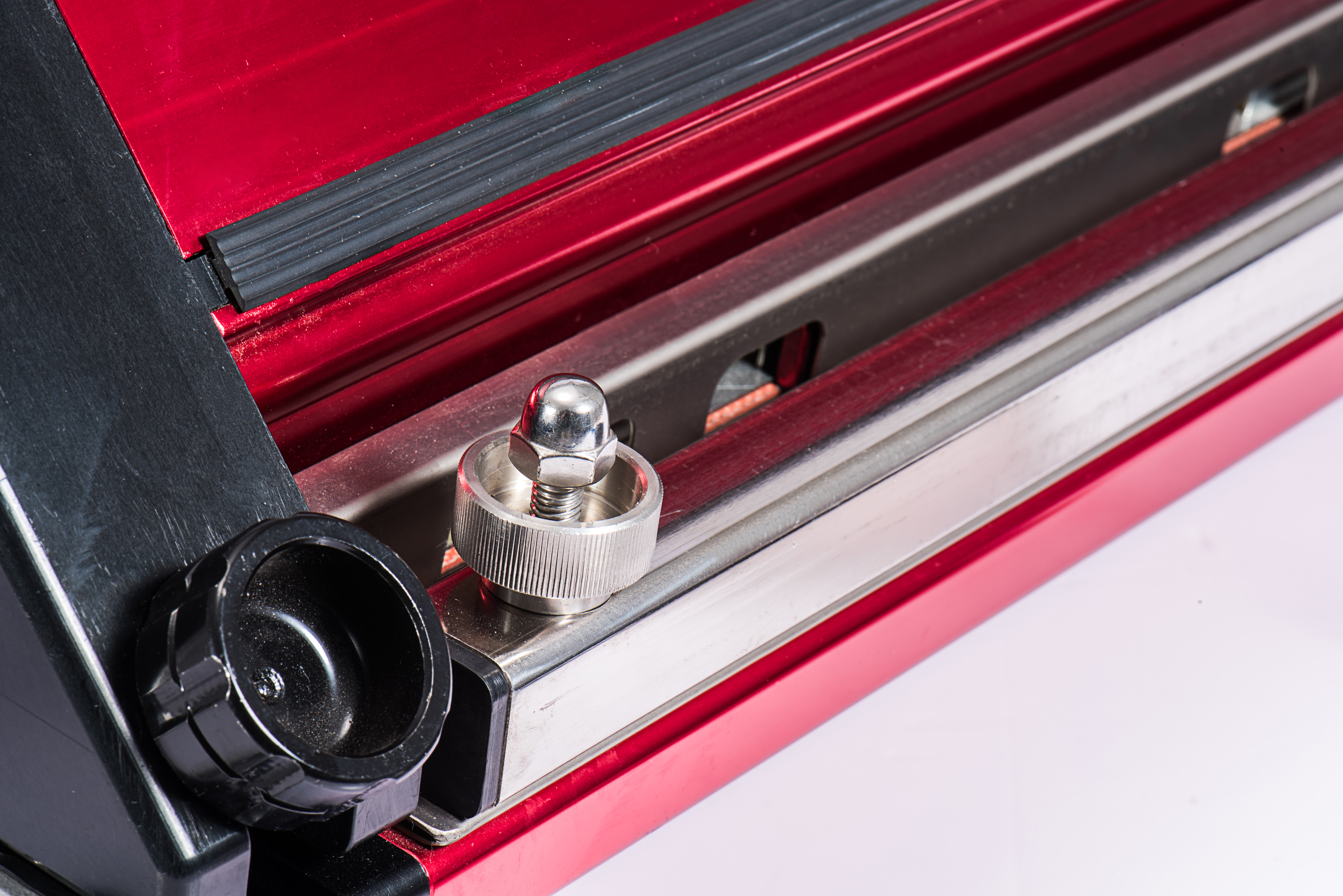

2.Clamp Bar Studs&Thumbnuts

Fix tightly long belt in case of sliding

-----------------------------------------------------------------

3.Completed Splicing Process Within 12 mins

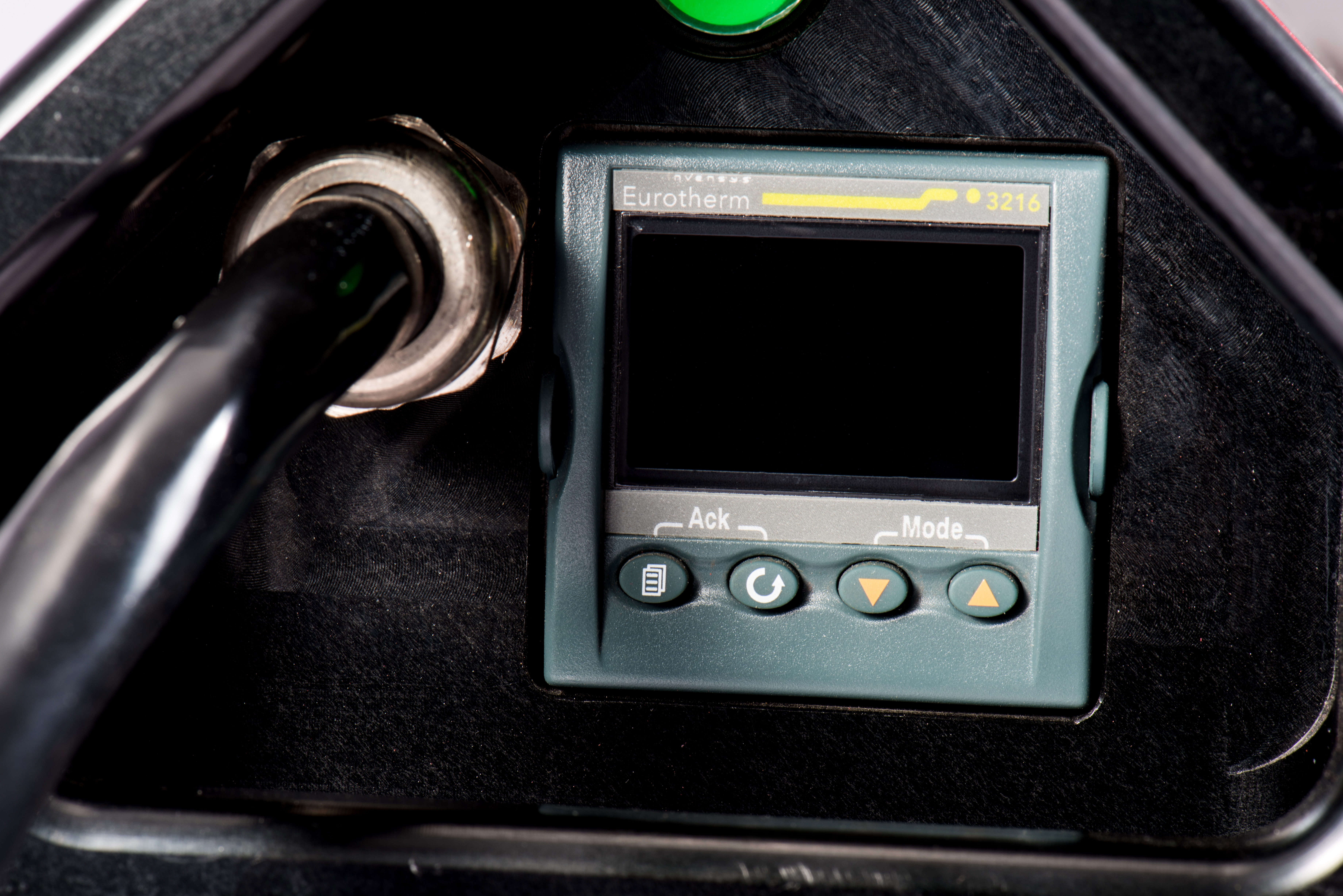

Eurotherm Controller from UK,

SMC pressure controller from Japan

-----------------------------------------------------------------

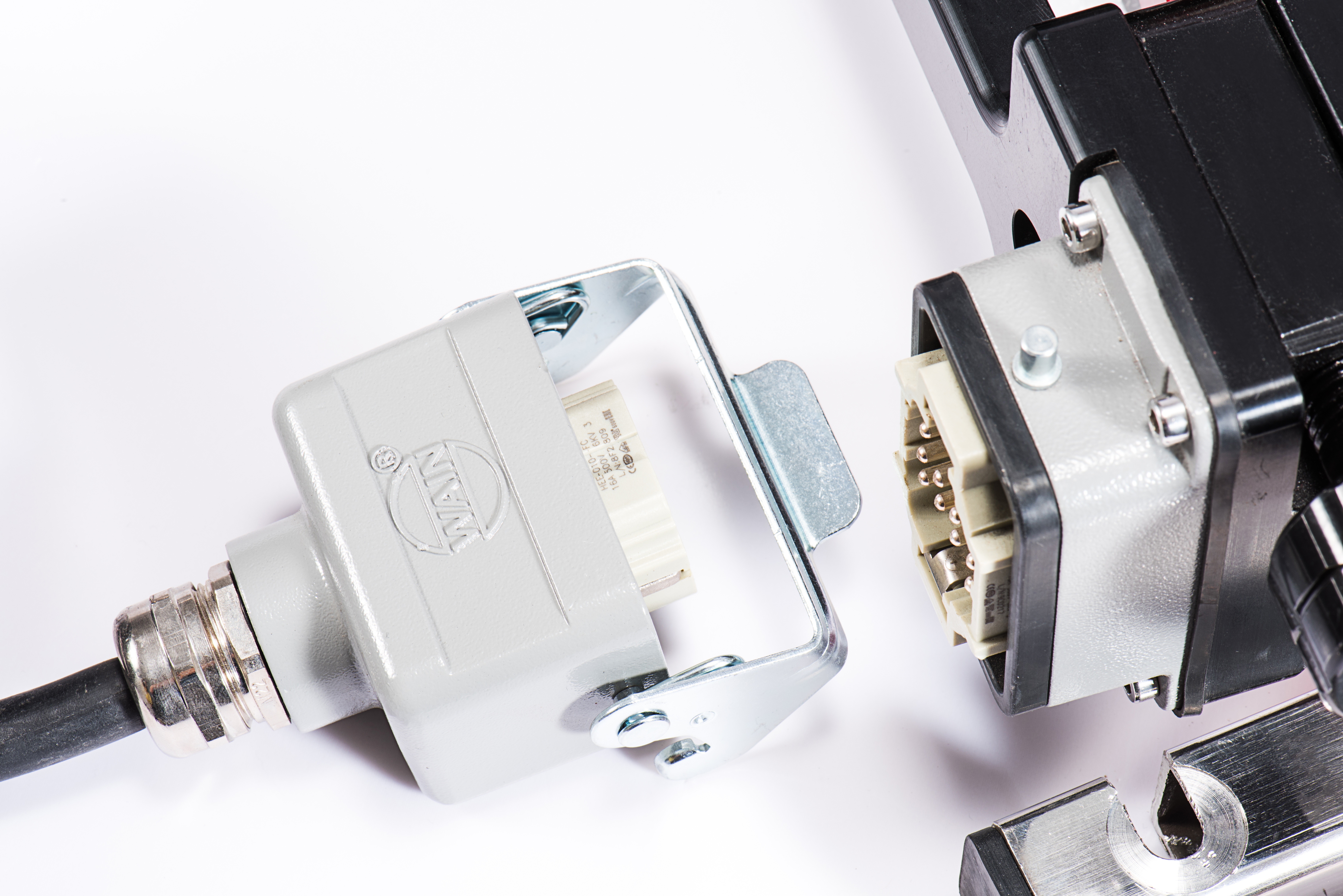

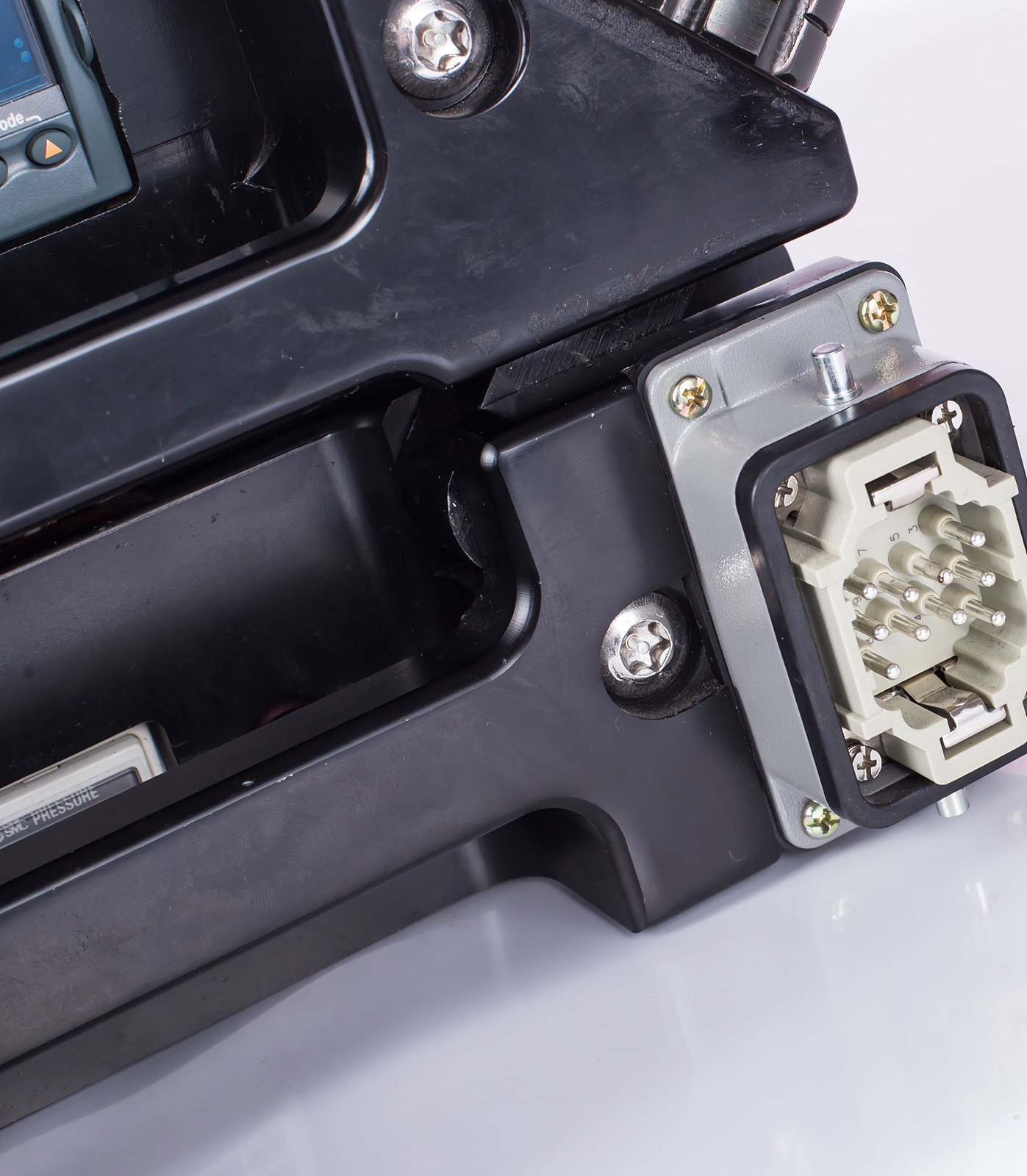

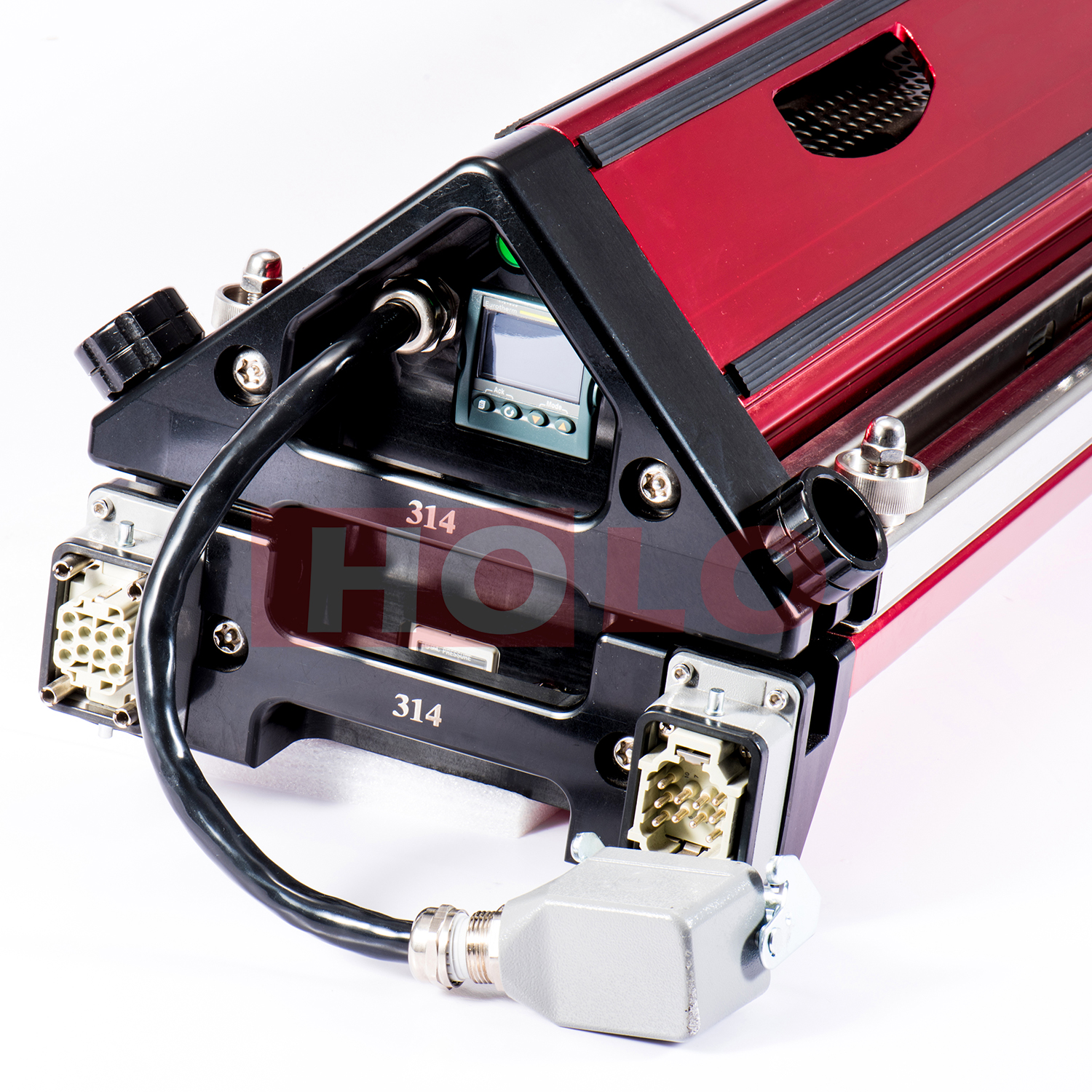

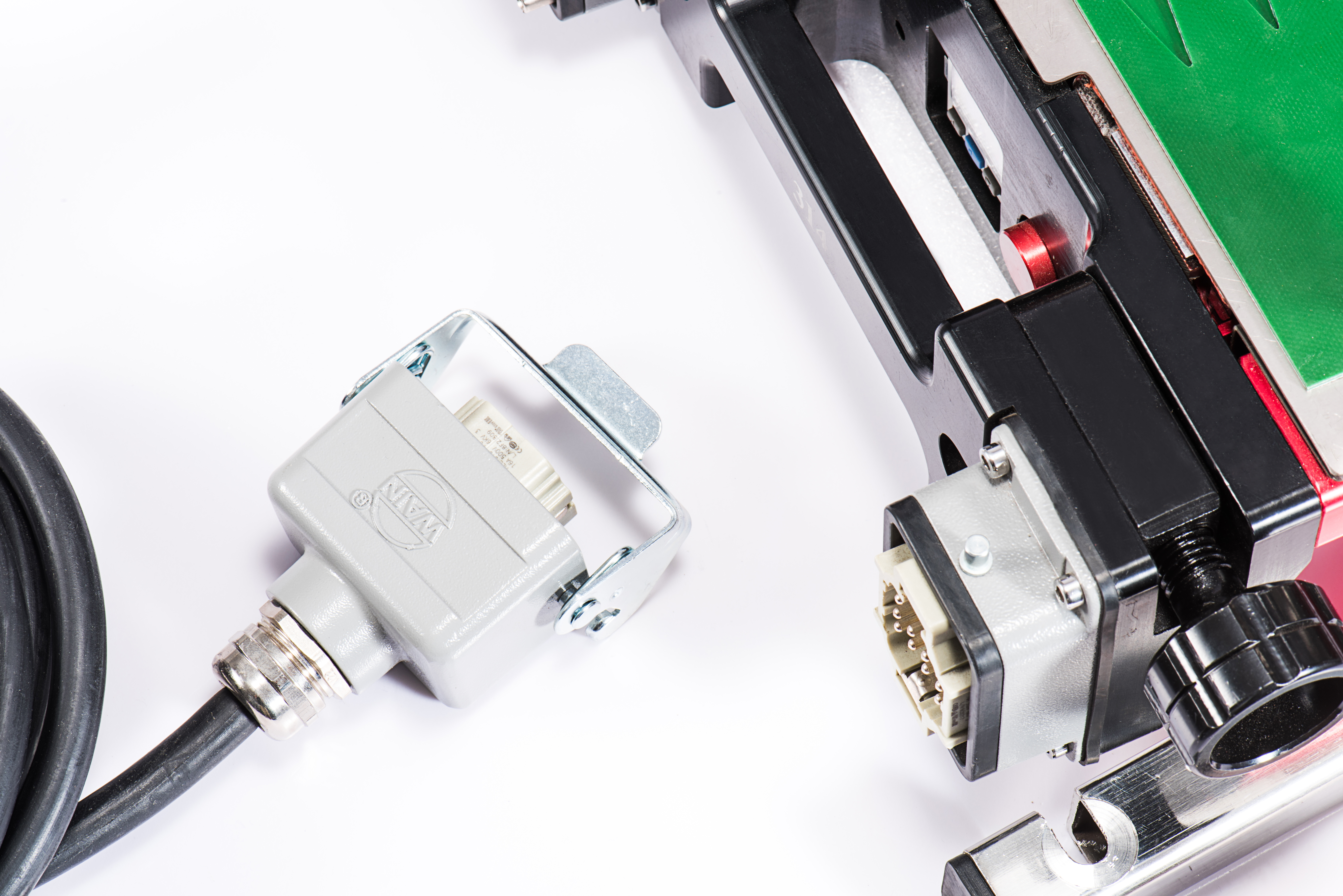

4.Electric Connect(500V)

From WAIN ELECTRICAL with CE.

Simply plug it into electricity and it's ready for use

-----------------------------------------------------------------

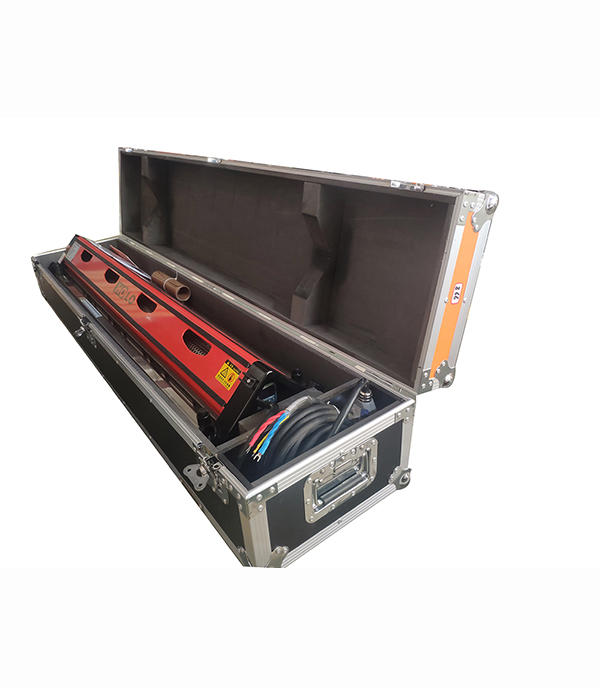

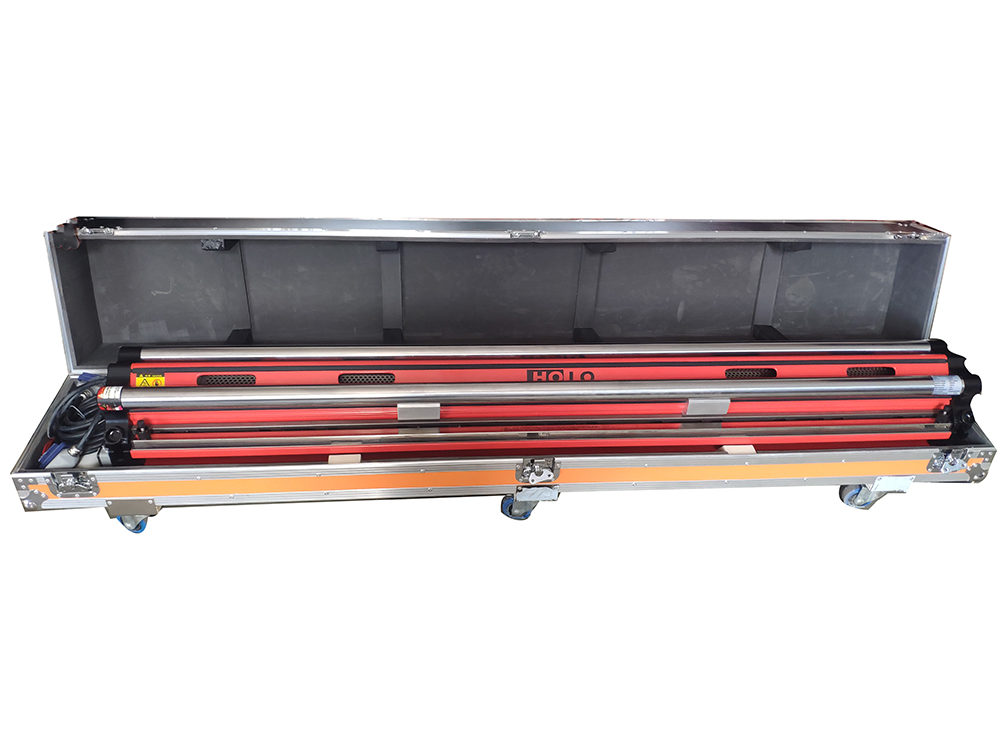

5.Flight Box with Wheels

It's easy to bring anywhere for belt splicing and work on-site

Features and Benefits:

•Splice times as short as 8-12 minutes .

•All-in-one unit with no external components .

•Two dwell levels of temperature for different conveyor belt .

•Light and easy to handle.

Accessories and options

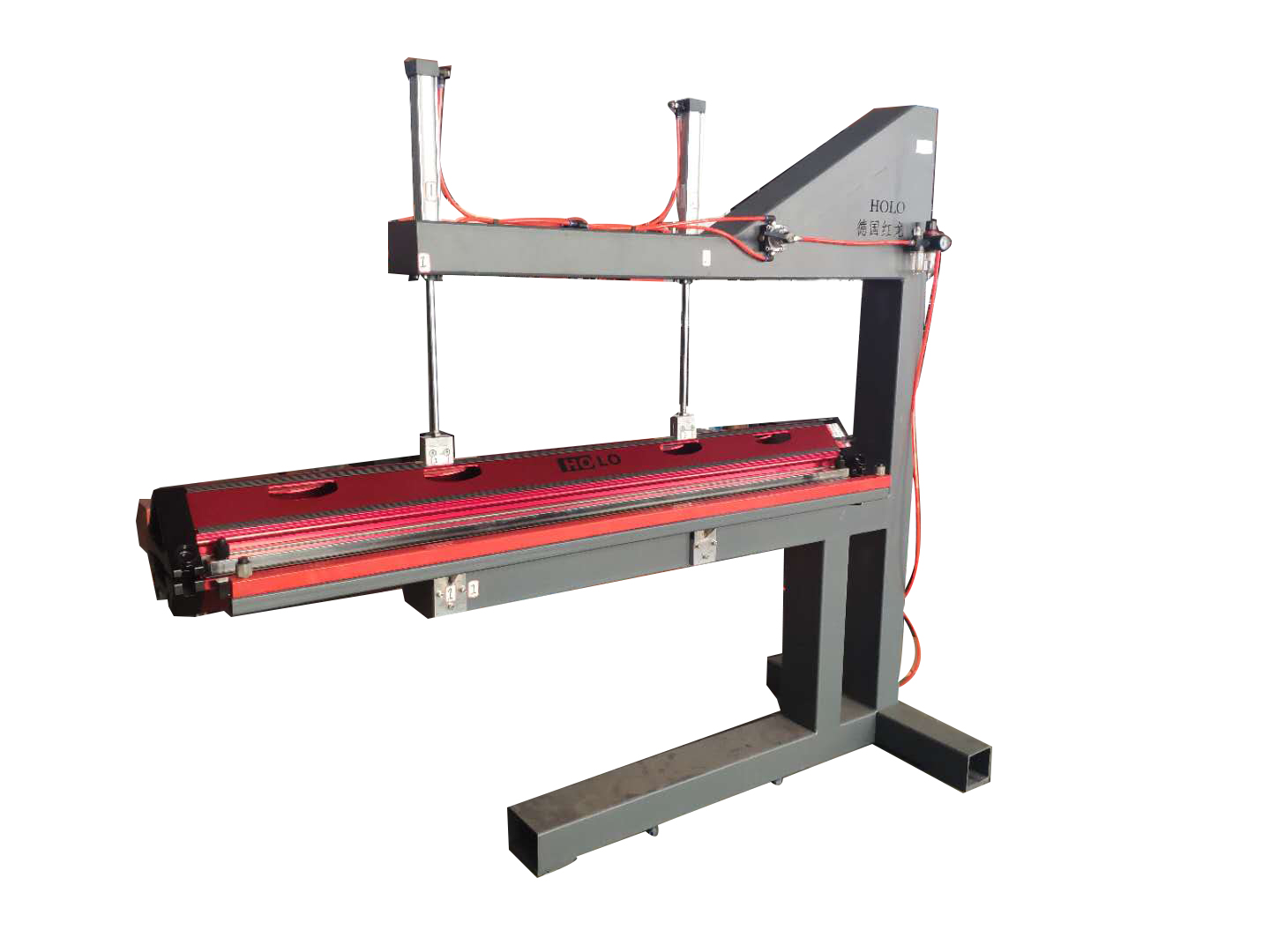

•Press stand and extension cable is option for efficiency in the fabrication workshop.

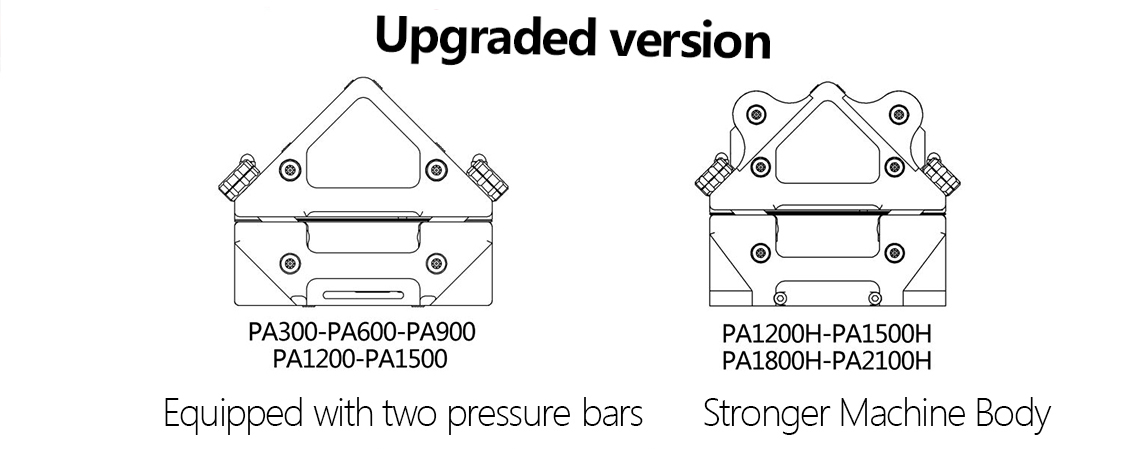

Reinforce Type

On 2016,HOLO has rainforce type for all cooled press machine from 1500mm -2100mm

Product Model :PA1500H PA1800H PA2100H

With two rainforce bar on the top beam ,it helps enhance machine strength to avoid top beam bow when heating .

Updated Model

HOLO PA Air Cooled Press

Technical Datasheet

Tool Specifications	PA300	PA600	PA900	PA1200	PA1500	PA1500H	PA1800H	PA2100H
Effective length	305 mm	610 mm	914 mm	1219mm	1524mm	1524mm	1829mm	2160mm
Effective width	130 mm	130 mm	130 mm	130mm	130mm	130mm	130mm	130mm
Weight lower part	10 kg	16 kg	20 kg	28.5KG	30KG	45KG	32KG	36kg
Weight upper part	11 kg	13 kg	18 kg	25.5KG	30KG	53KG	42KG	55kg
Weitht Bumper	/	/	/	/	/	37kg	43kg
Total weight	21 kg	30 kg	38 kg	54KG	62KG	100KG	121KG	142kg
Length	505 mm	805 mm	1105 mm	1405mm	1705mm	1705mm	2005mm	2360mm
Overall Height	220 mm	225 mm	225 mm	225mm	225mm	225mm	225mm	255mm
Overall Width	250mm	250mm	250mm	250mm	250mm	255mm	255mm	255mm
Max. pressure	2Bar	2Bar	2 Bar	2bar	2bar	2bar	2bar	2bar
Max. temperature	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C	200 ˚C
Dimensions fortransport (mm)	712 x 352 x280	1012 x 352 x 280	1312 x 352 x 280	1612 x 352 x 280	1912 x 352 x 280	1912 x 352 x 280	2212352300	2567352300
Weight for transport	26 kg	35 kg	43 kg	84KG	96KG	153kg	176KG	219KG
Power	1.6KW	2.8KW	4KW	5.2KW	6.4KW	7KW	7.6KW	8.8KW

Electric Power

Voltage	PA300	PA600	PA900	PA1200	PA1500	PA1500H	PA1800H	PA2100H
Single PH/220V	9A	13A	18A	27A	33A	33A
Three PH/230V	5A	8A	9A	13A	16A	16A	18A	20A
Three PH/380V	5A	8A	9A	13A	16A	16A	18A	20A
Three PH/460V	5A	8A	9A	13A	16A	16A
