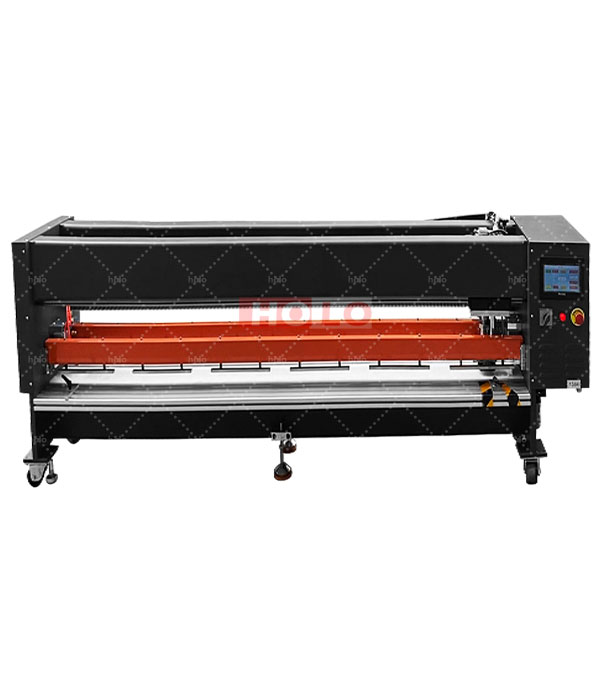

Product Description
With standard finger size 10*80 and 20*80mm

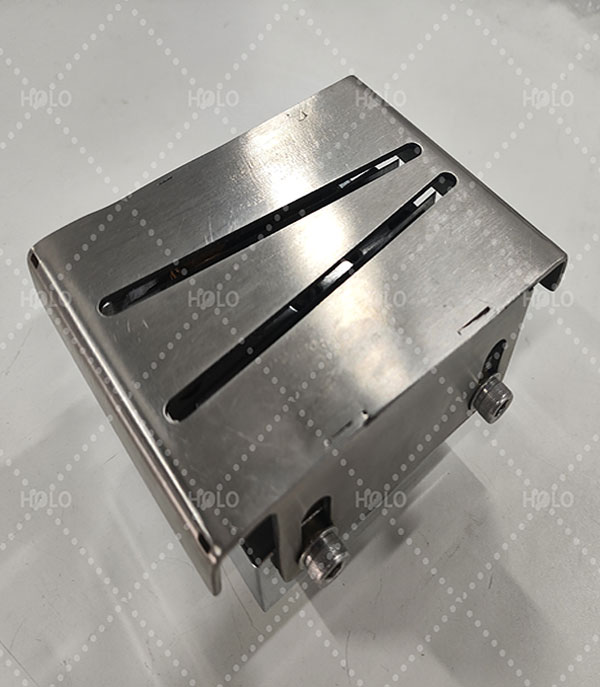

Angle cut die fingers can custom-made

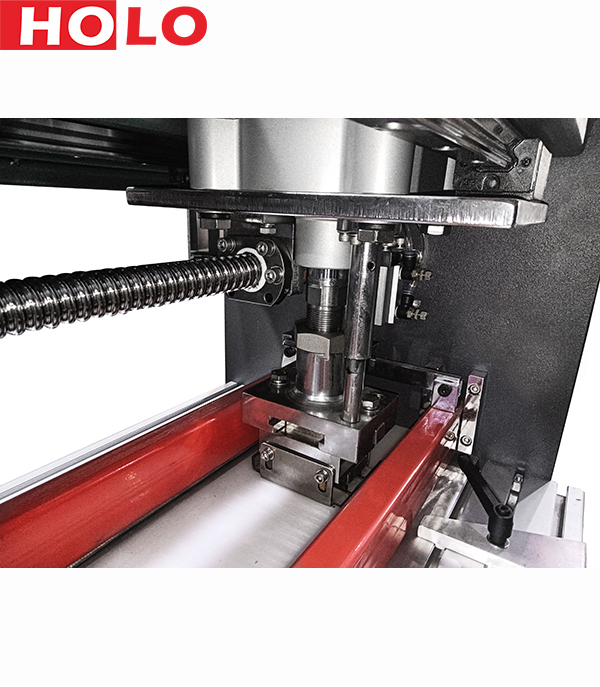

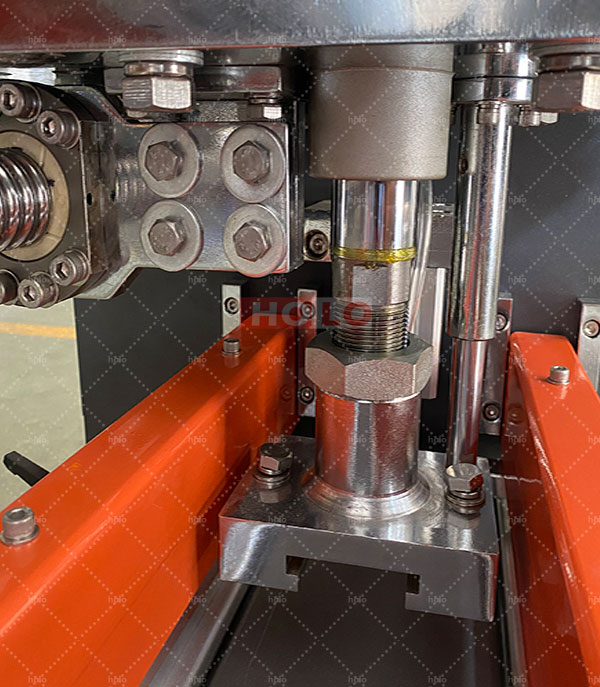

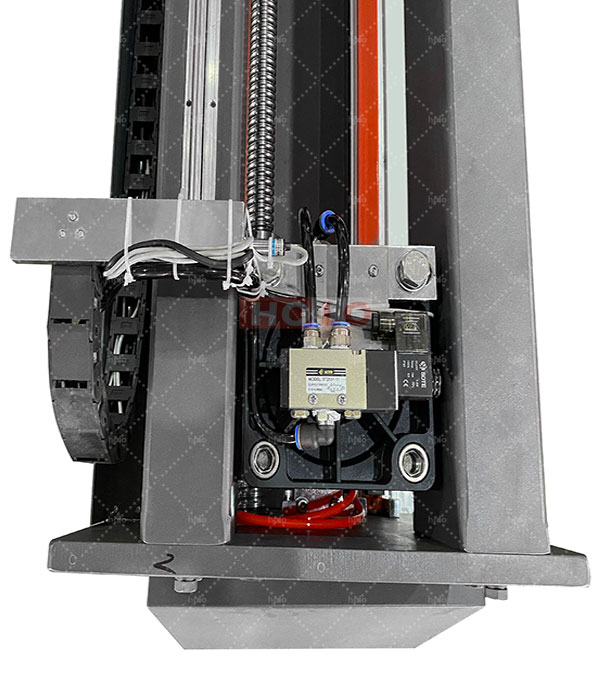

Die on the top operated by hydraulic cylinder
Maximum thickness is up to 10mm for themoplastic conveyor belt
Features and Benefits

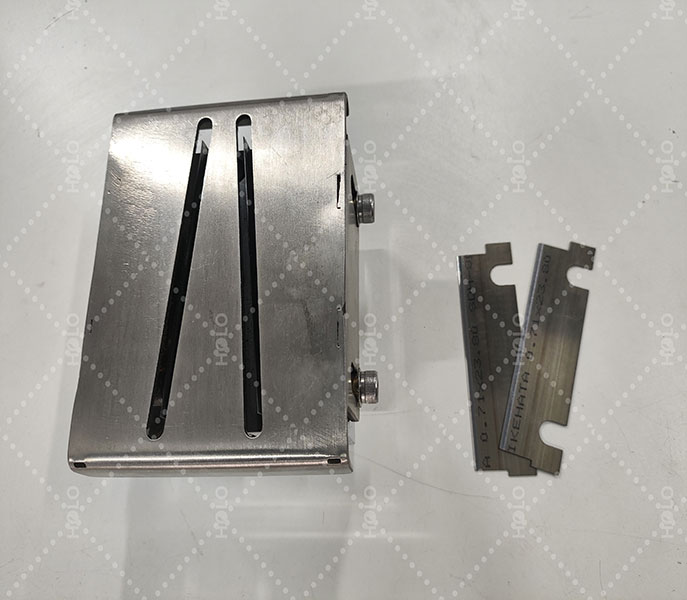

The finger size change easily by changing different dies fingers

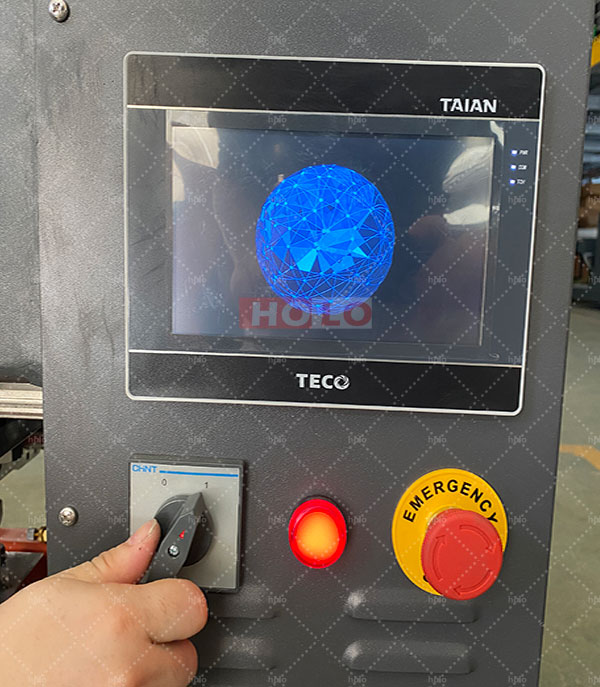

Easy operation, after clamp belt, machine runs automatically

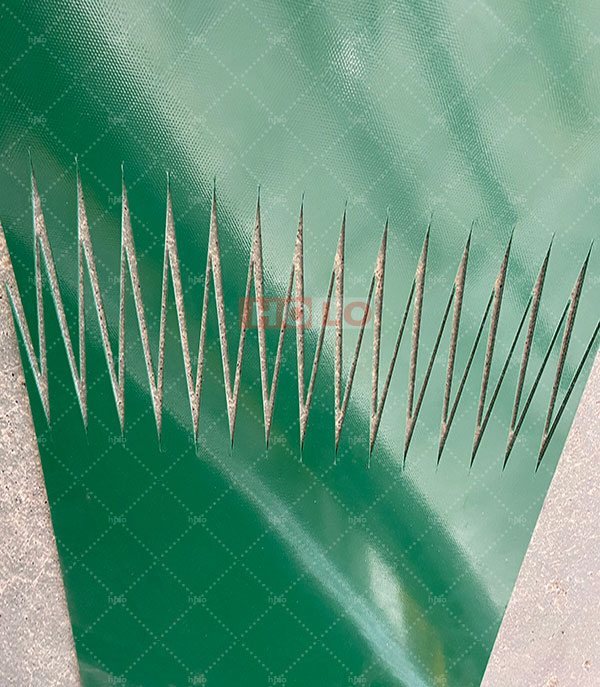

High precision, the finger after punching is more clean
Safety reduce manual work to avoid accident because of wrong operation
Accessories and options
Machine with two standard dies as size 10*80mm and 20*80mm
Other size can request to our sales person
| TB1000 | TB1600 | TB2000 | TB3000 | |
| Max. belt width | 1000mm | 1600mm | 2000mm | 3000mm |
| Voltage (v) | 220V | 220V | 220V | 220V |
| Power(W) | 750W | 750W | 750W | 750W |
| Machine size | 1730*520*800 | 2335*520*800 | 2750*520*900 | 3700*520*900 |
| Machine Weight | 290kg | 425kg | 600kg | 900kg |
| Packing size(mm) | 1920*670*1050 | 2450*600*1100 | 2840*670*1180 | 3870*670*1040 |
| Packing weight | 320kg | 462kg | 680kg | 1048kg |
Note: Considering that the data update takes time, please ask the salesperson for accurate packaging data and machine size
