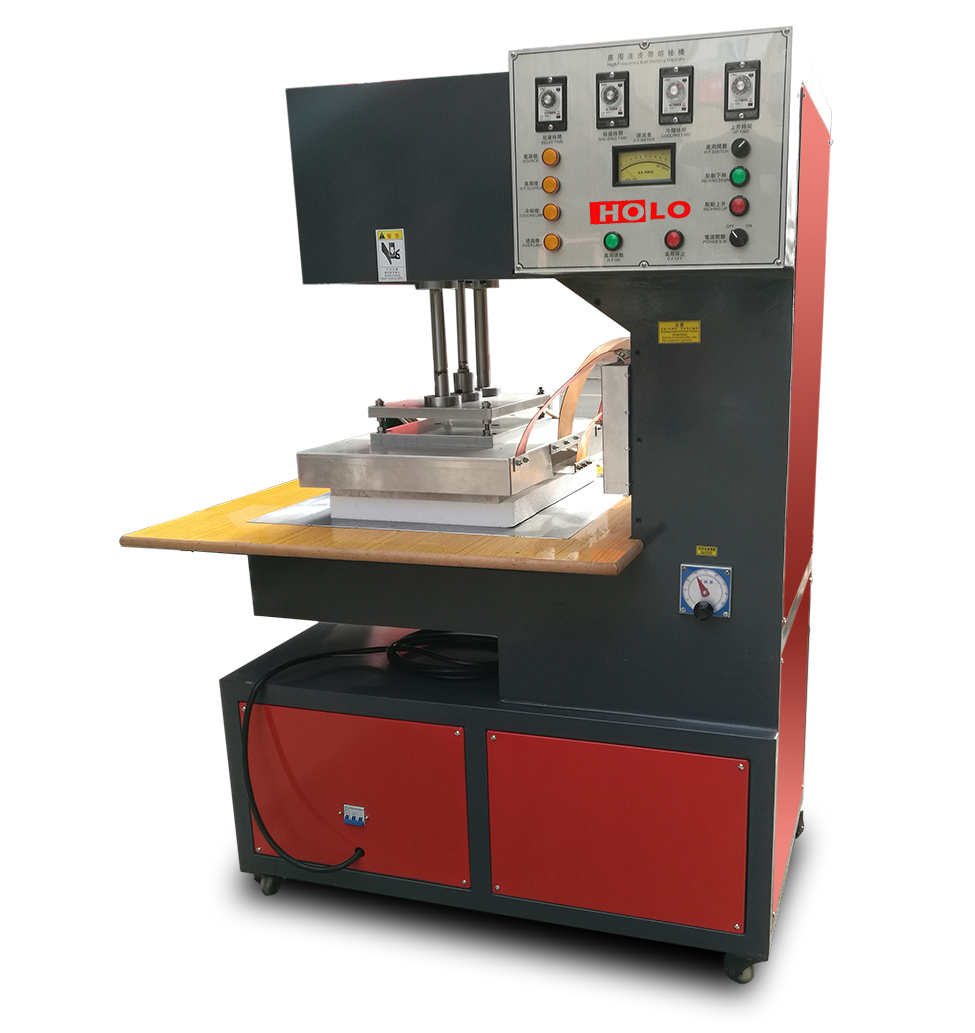

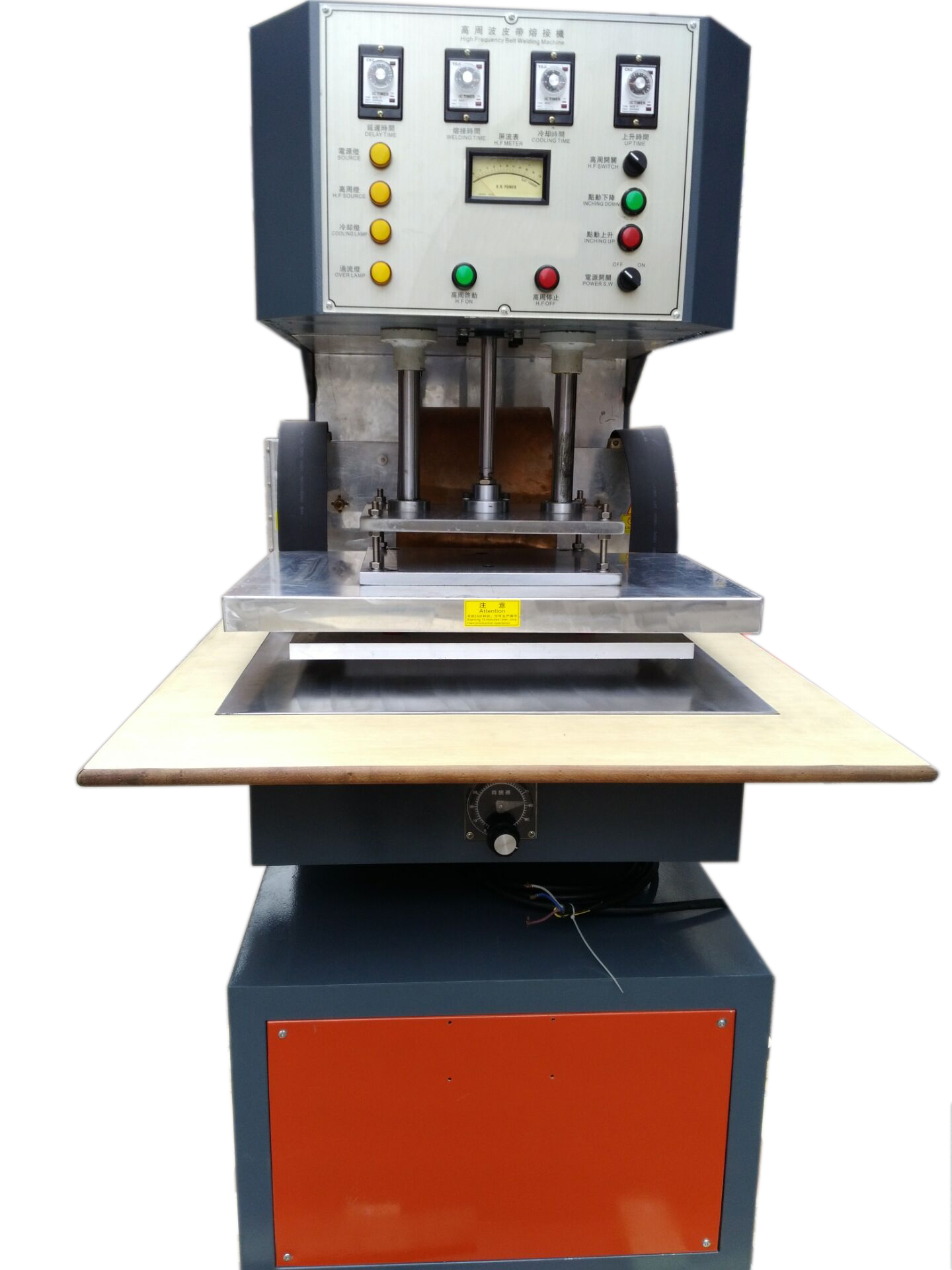

HOLO QA1000 High Frequency Sidewall /Cleat Welding Machine

Product Description
Product Description

    The HF Welding machine utilizes high frequency electromagnetic field to make
    it's internal molecular rearrange


    The effect of welding is beautiful and firm


    The strength of welding is close to the strength of raw materials

Features and Benefits
Features and Benefits

    Machine groove is deep and wide ,convenients to weld large area


    Adopting high senstive spark protect device to avoid damaging the mould


    Welding length can be extended to 50mm or longer for one time

Accessories and options

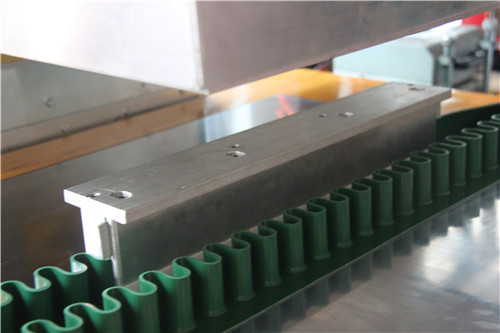

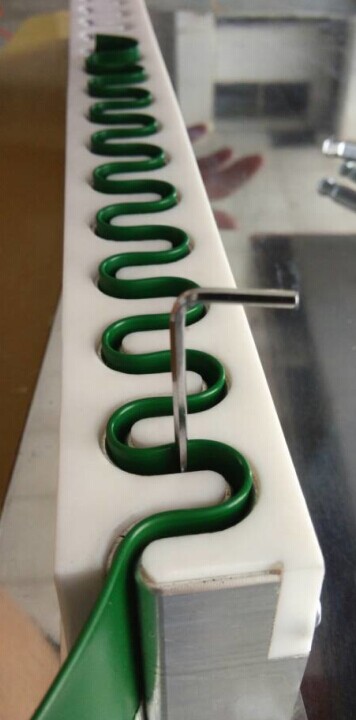

    Sidewall mould as per request


    Cleat mould T10 T20-60 T70-80 as Per request

ModelQA1000
Power voltage380V 50HZ
Input Power20kW
HF Power10kw
HF Frequency27.12MHZ
Recrifier2CL
Oscillation tube7T69
Working Soack200mm

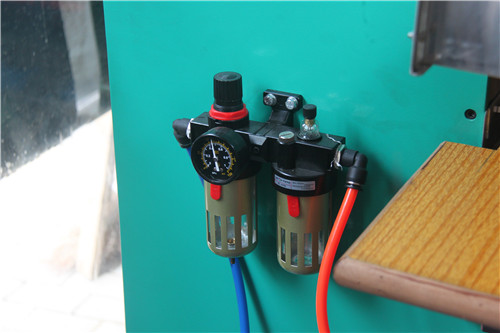

operationAir pressure
Max. Pressure800kgs
Dimensions1100*1450*1900mm
Size of up working plate600*400mm
Size of bottom working plate750*750mm

 Note: Considering that the data update takes time, please ask the salesperson for accurate packaging data and machine size
