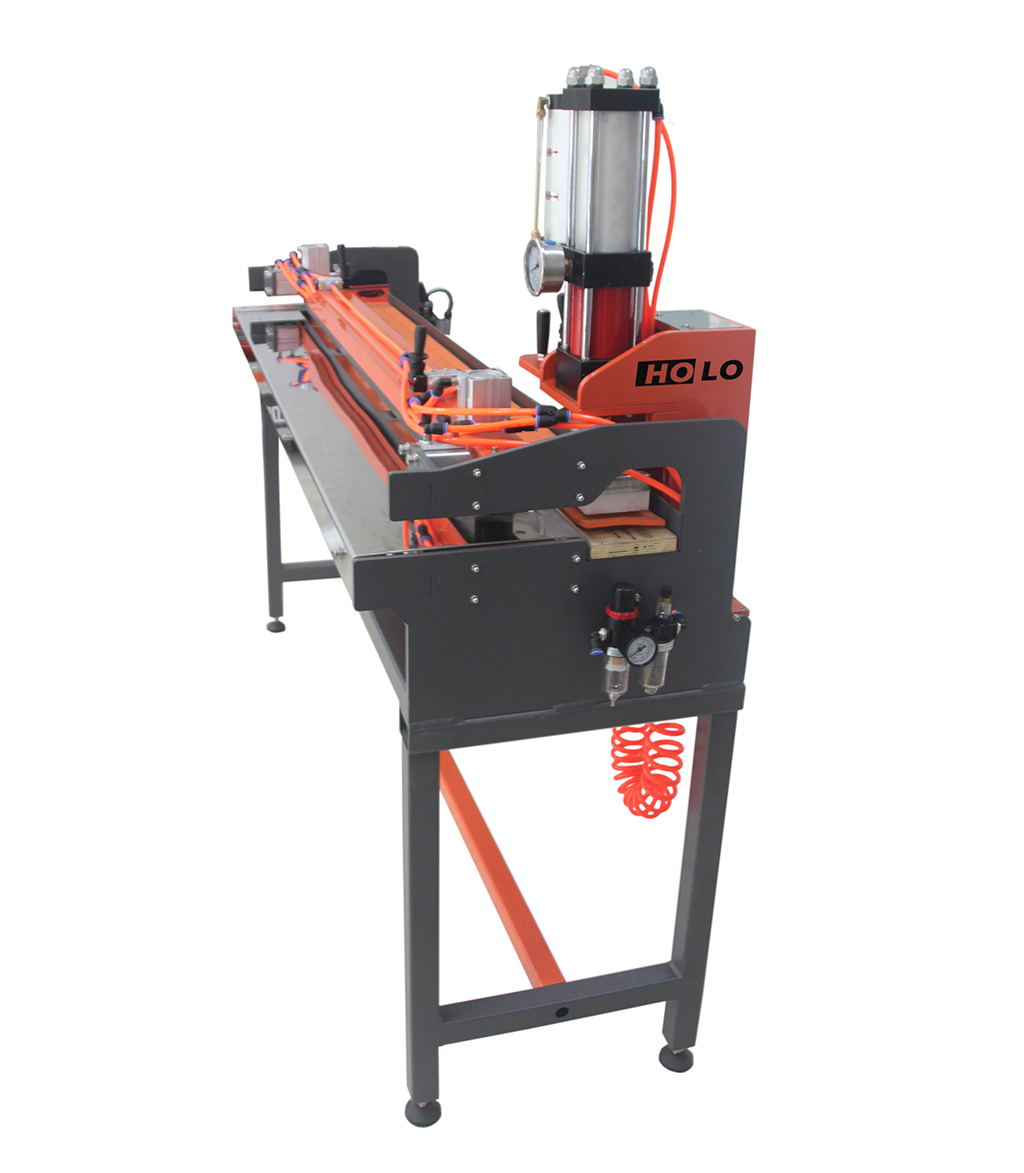

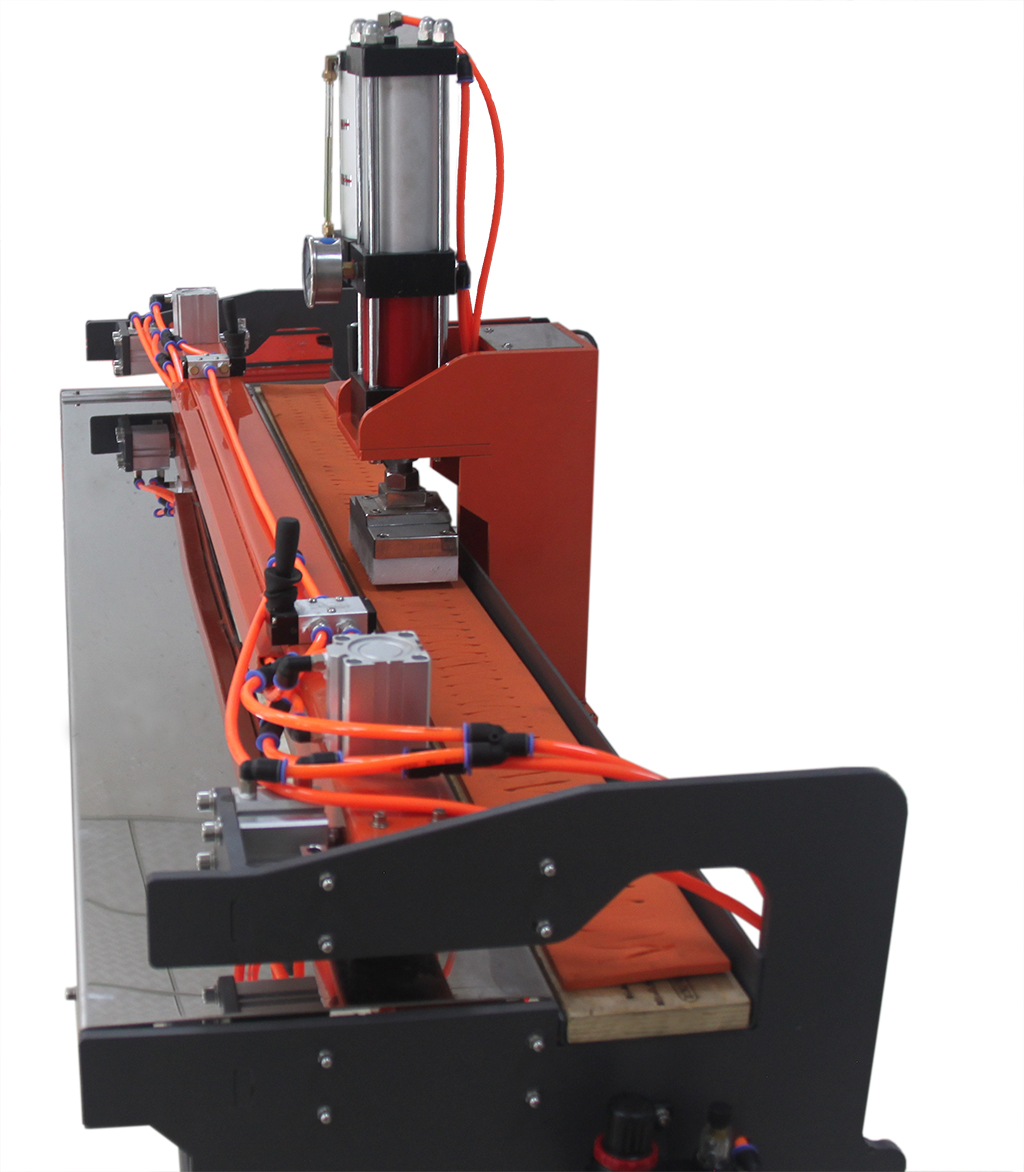

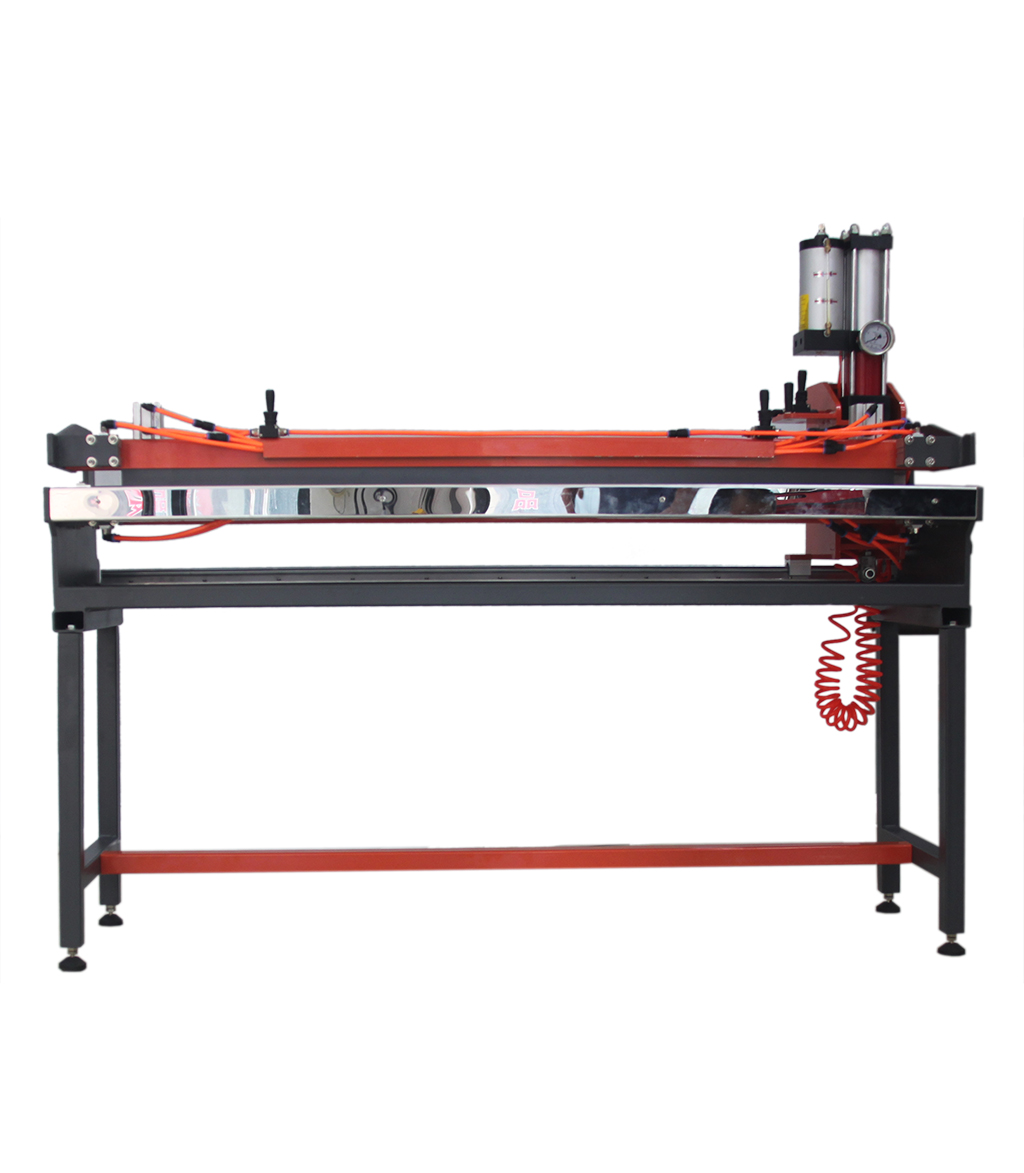

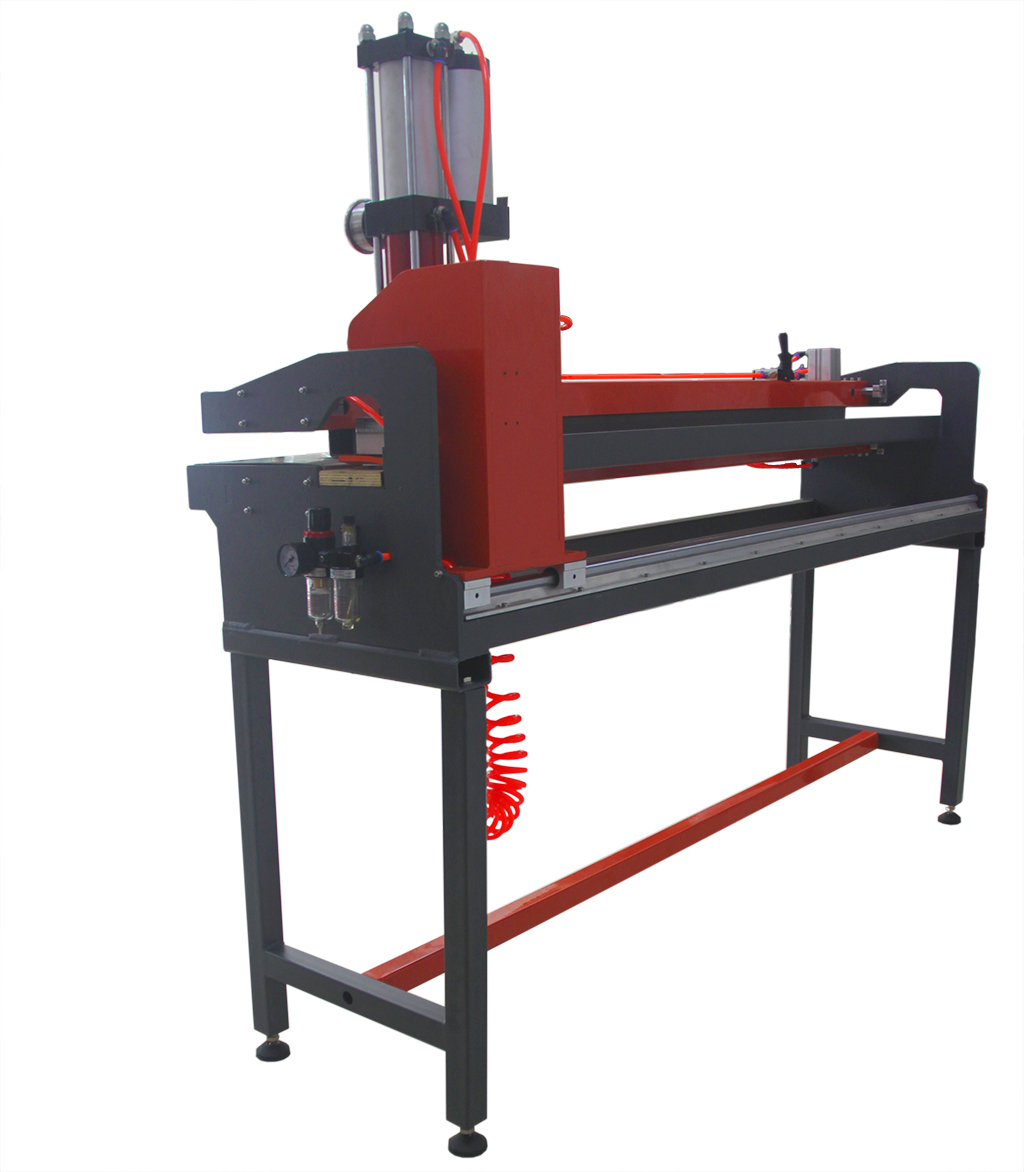

HOLO TA conveyor belt Pneumatic Finger Puncher

Product Description
Product Description

    The conveyor belt punching machine incorporates hydraulic pressure system
    and is composed by the frame, the blade/knife, removable head and clamping bar

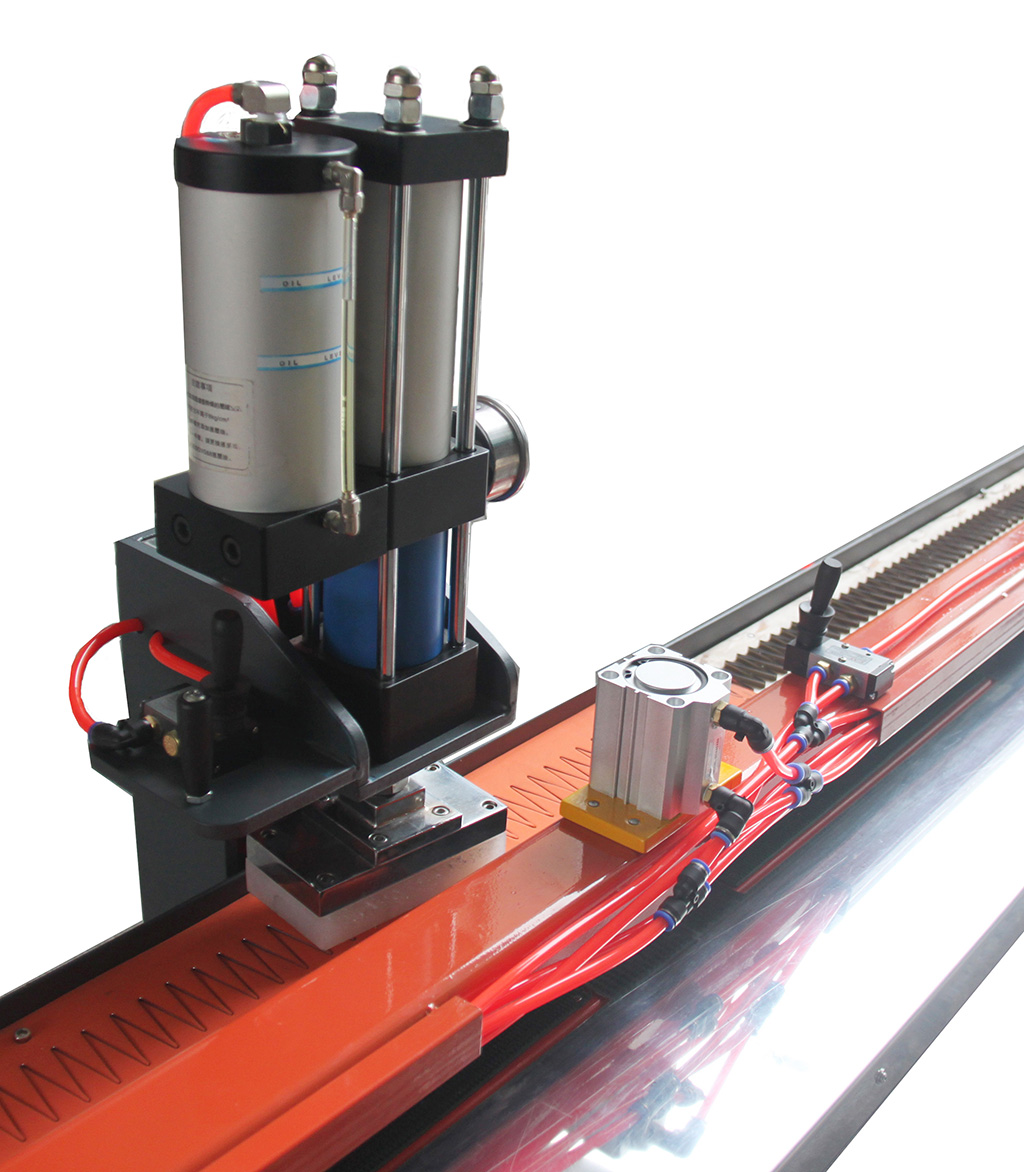

    Punching Head operated by hydraulic cylinder


    Available for standard size 1000mm 1600mm 2100mm and 3200mm

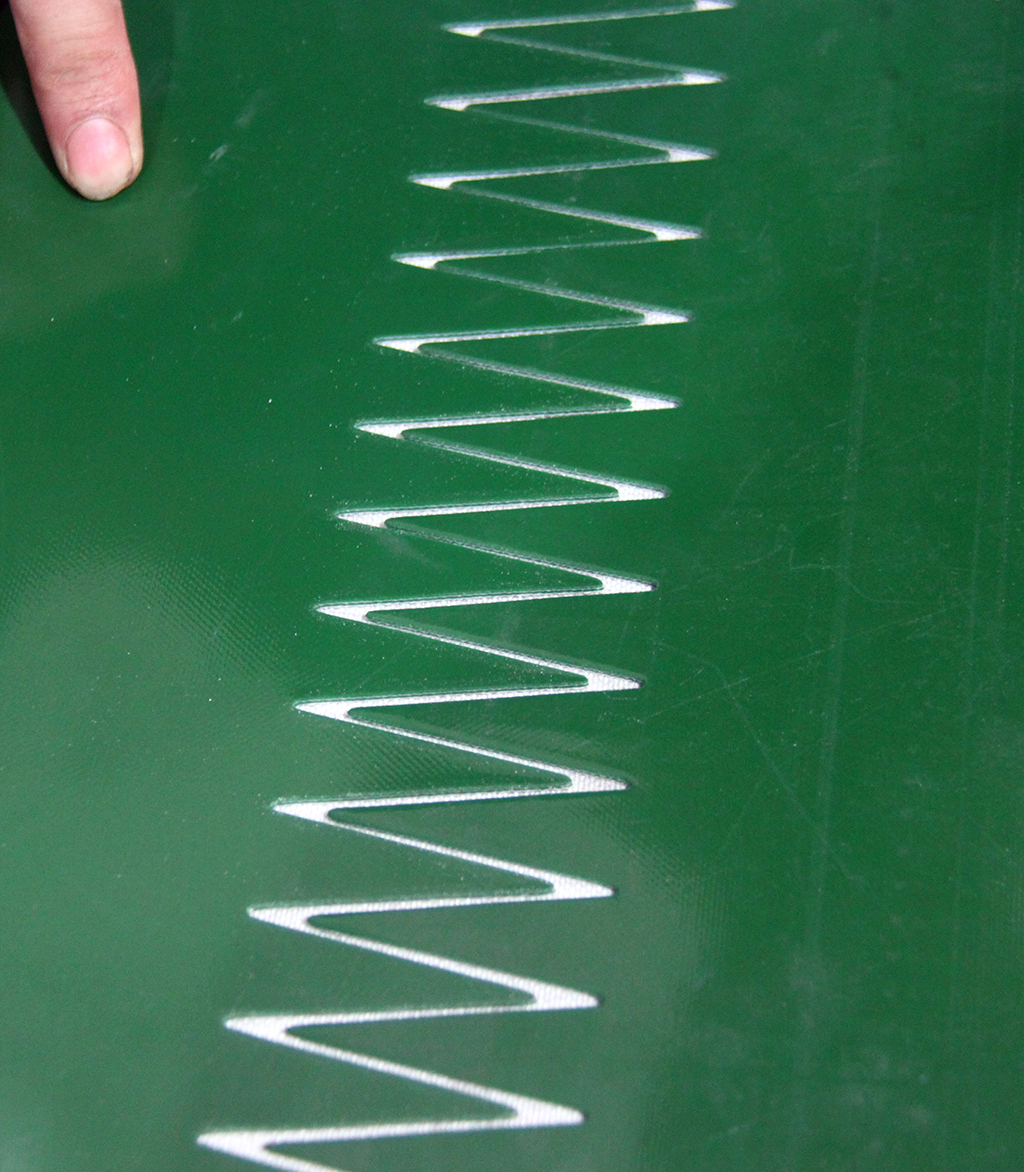

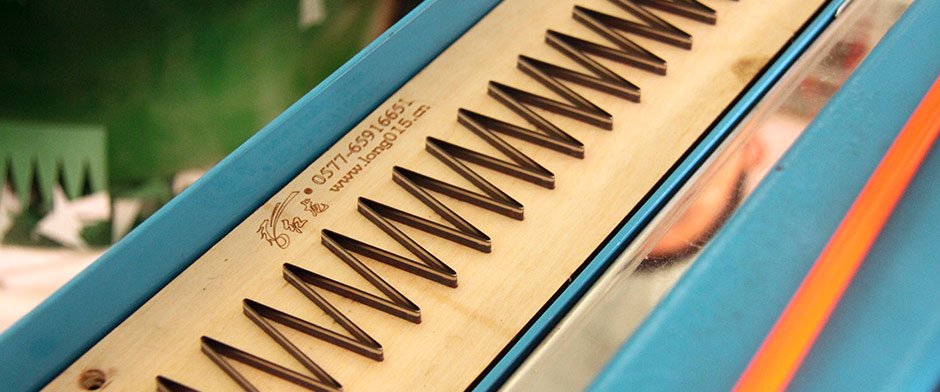

    Standard punching blade size 10*80mm for single finger  and 20*50mm for finger over finger

Features and Benefits
Features and Benefits

    Removable head for easy handling


    Semi-automatic for a comfortable use in the workshop

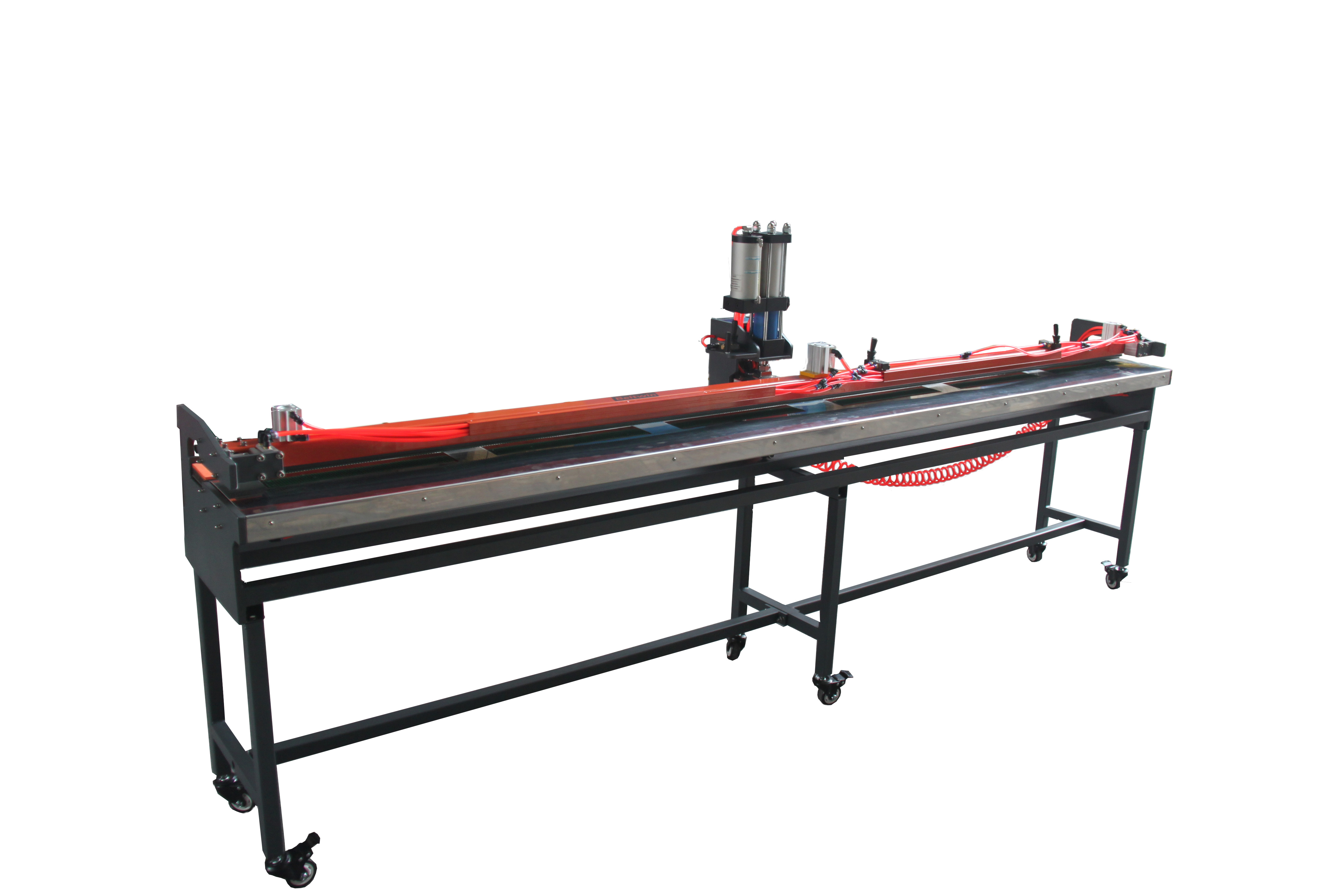

    Open-ended for wider conveyor belts, no width limitation

Accessories and options

    Standard punching blade size 10*80mm for single finger  and 20*50mm for finger over finger


    Others finger size can custom make

    ParametersTA1000TA1600TA2100TA3200
Length     (mm)       1150170022802680
Width      (mm)     510510510650
Height     (mm)          1550155015501700
Height without feet (mm)  850850850850
Package Weight  (kg)          234245345380
Wooden box volume(L*W*H)1220*670*9301800*670*9102360*670*9103640*670*1060

Note: Considering that the data update takes time, please ask the salesperson for accurate packaging data and machine size
