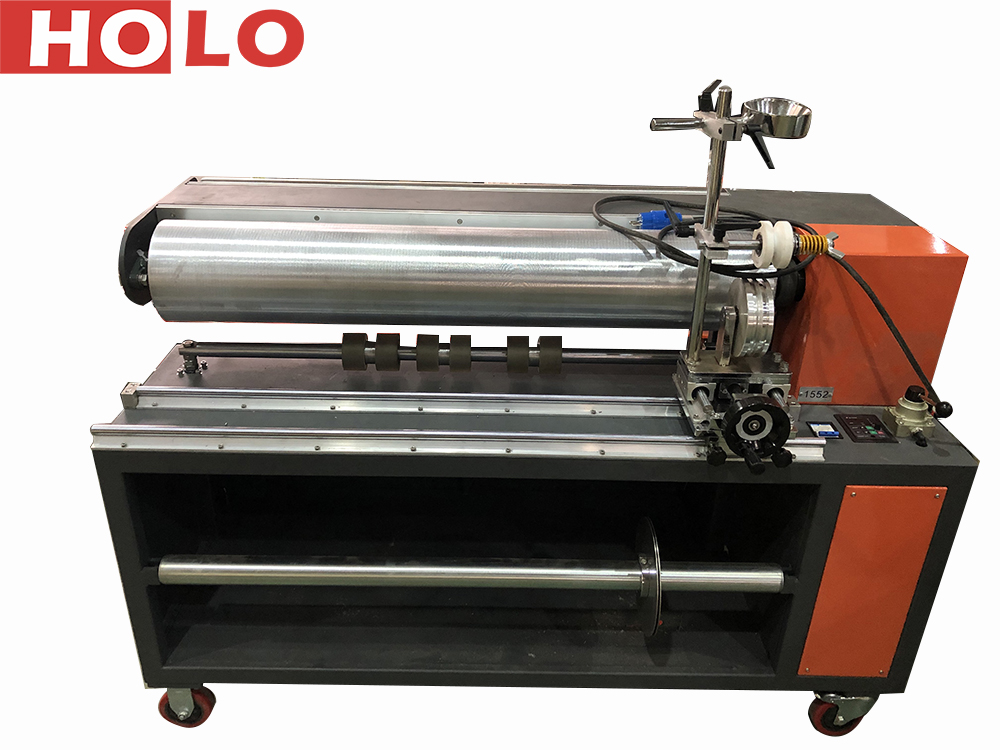

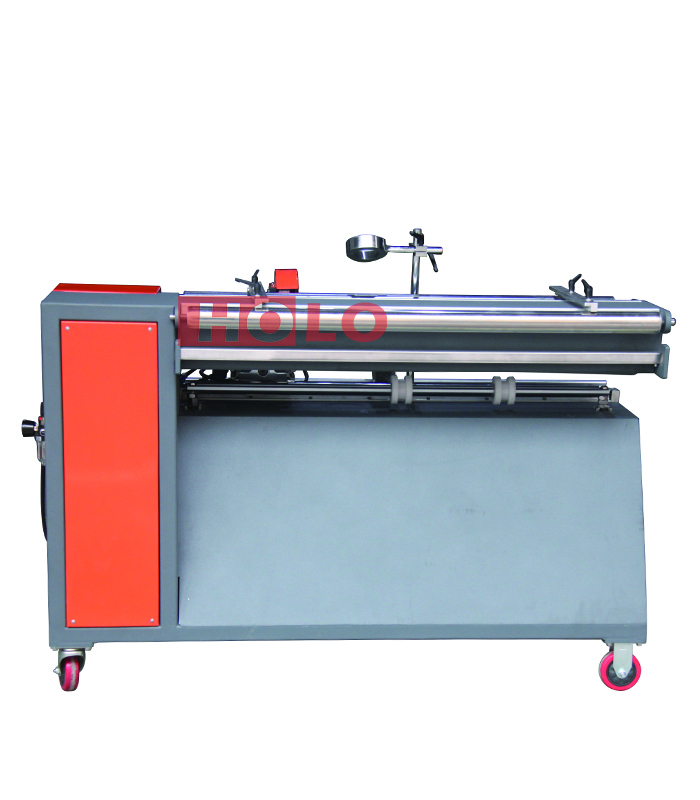

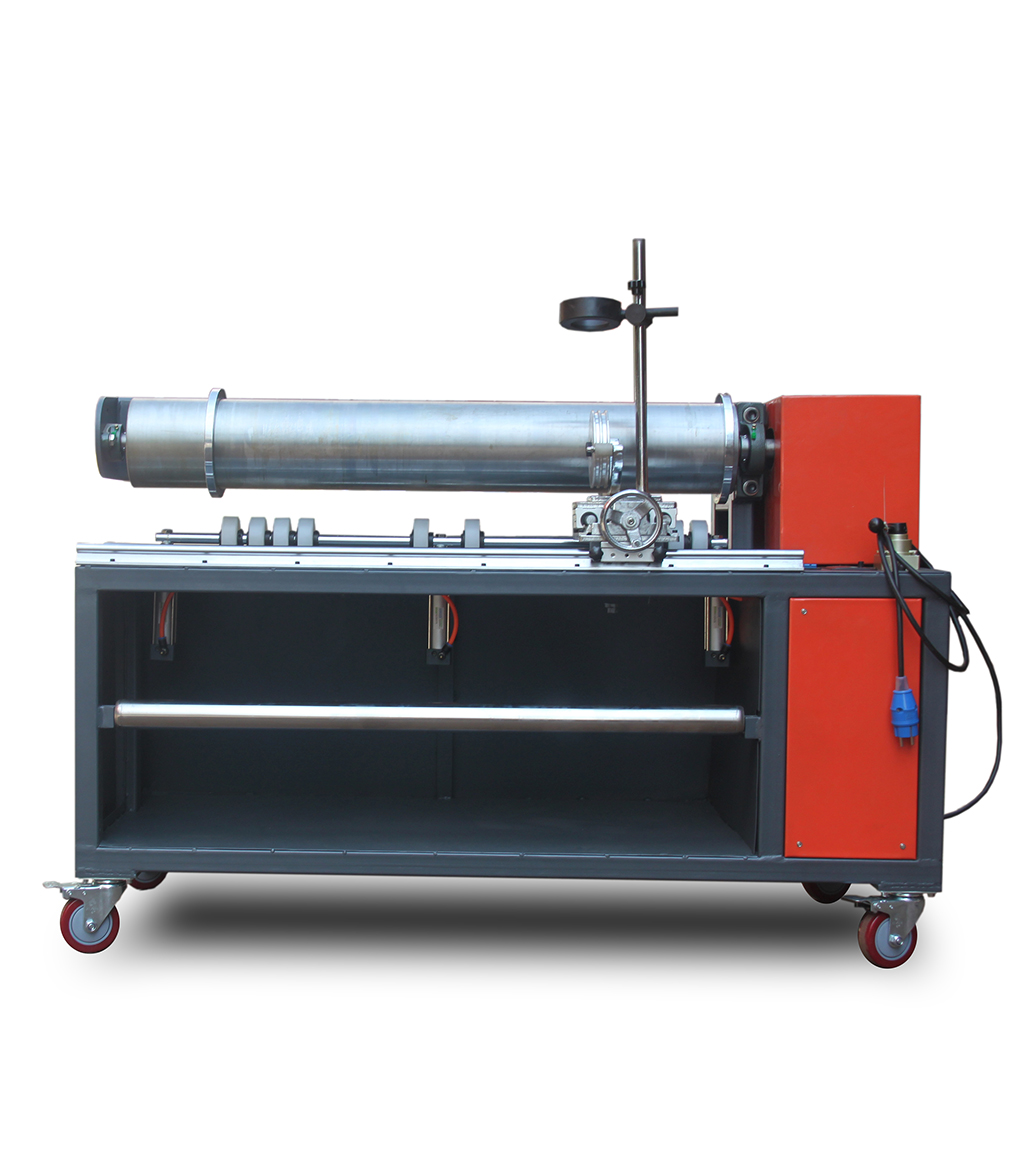

HOLO QB1000 V-Guide Welding Machine

Product Description
Product Description

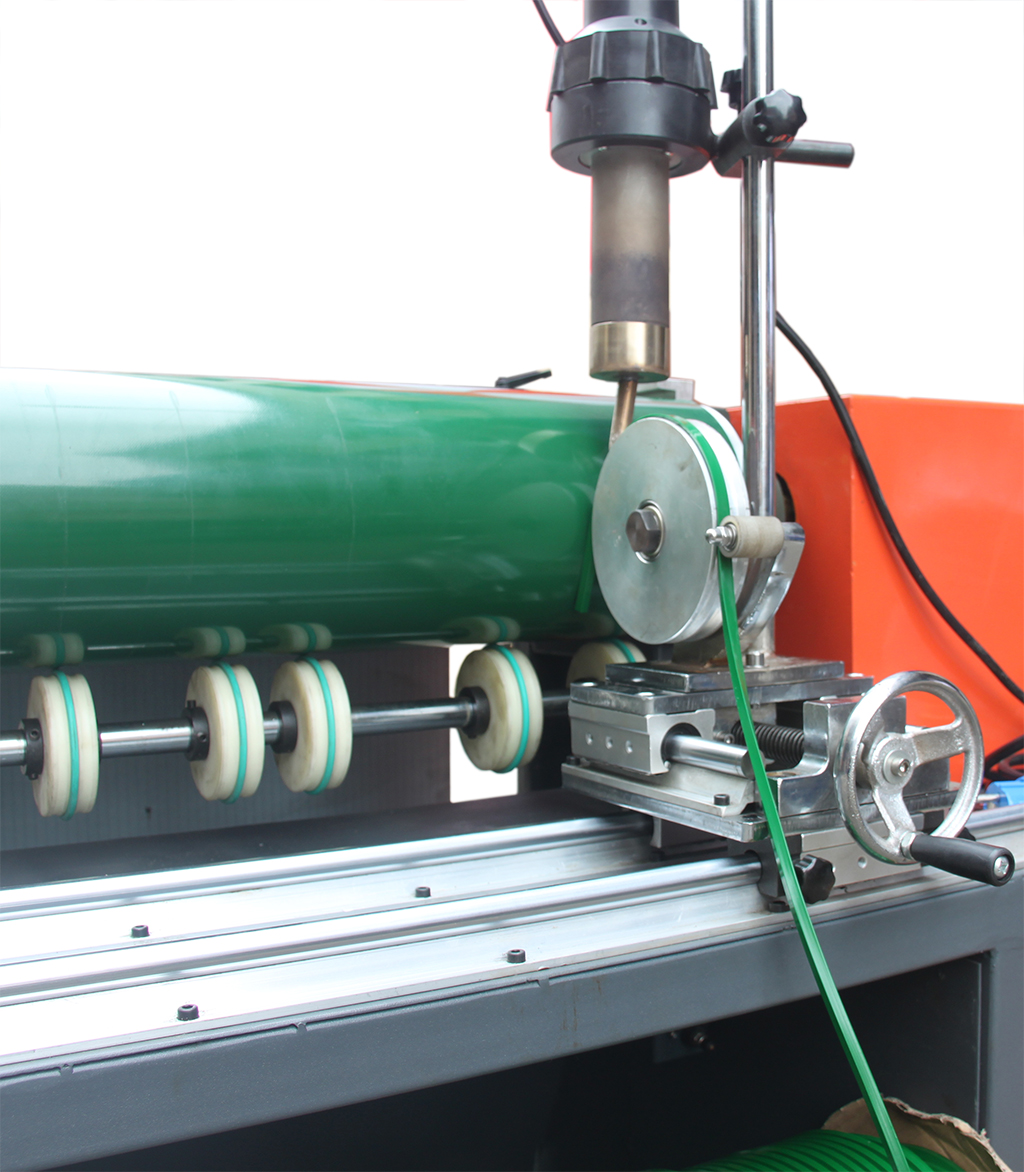

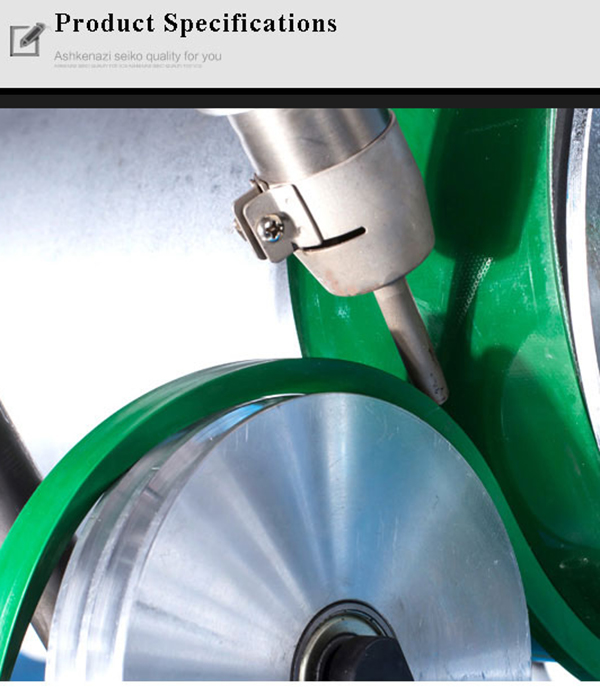

    Welding by heating gun


    Guide Mould can be easy change

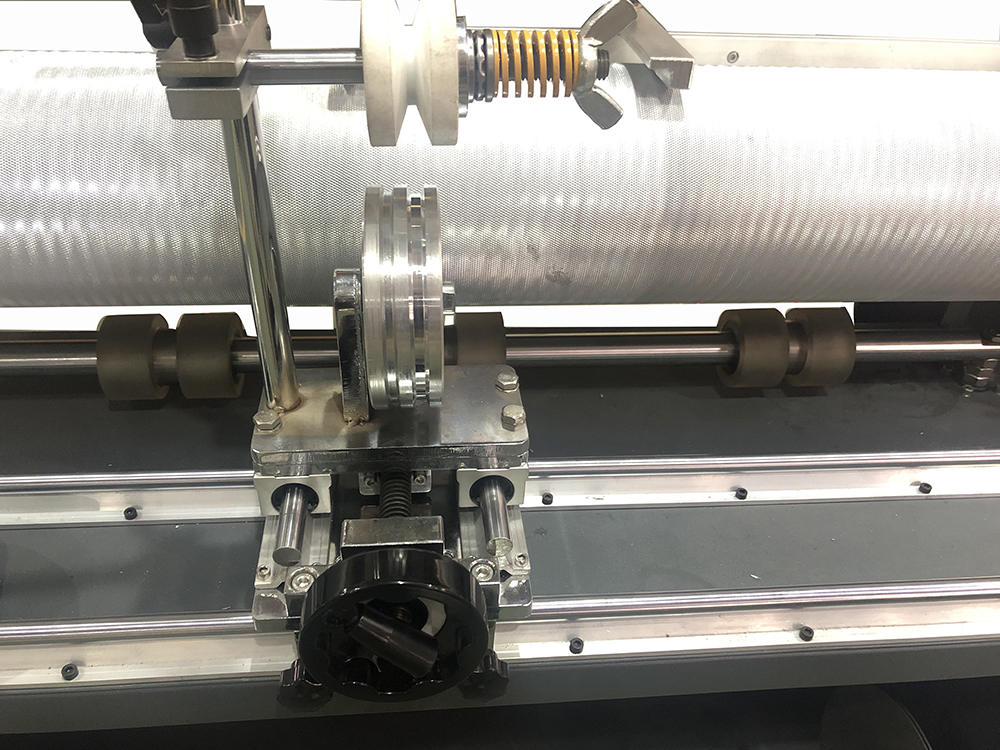

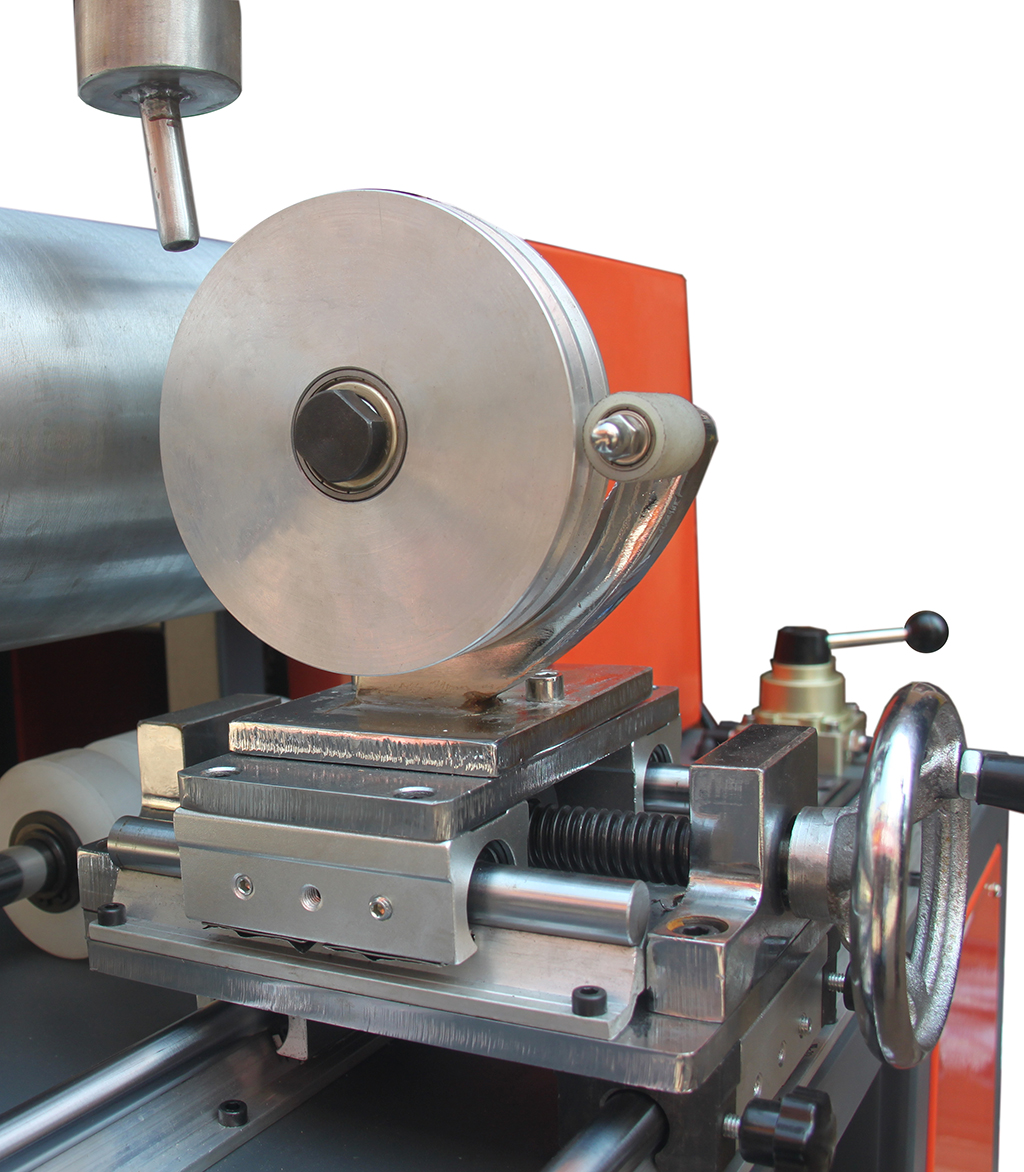

    Welding head horizontal and vertical direction moveable

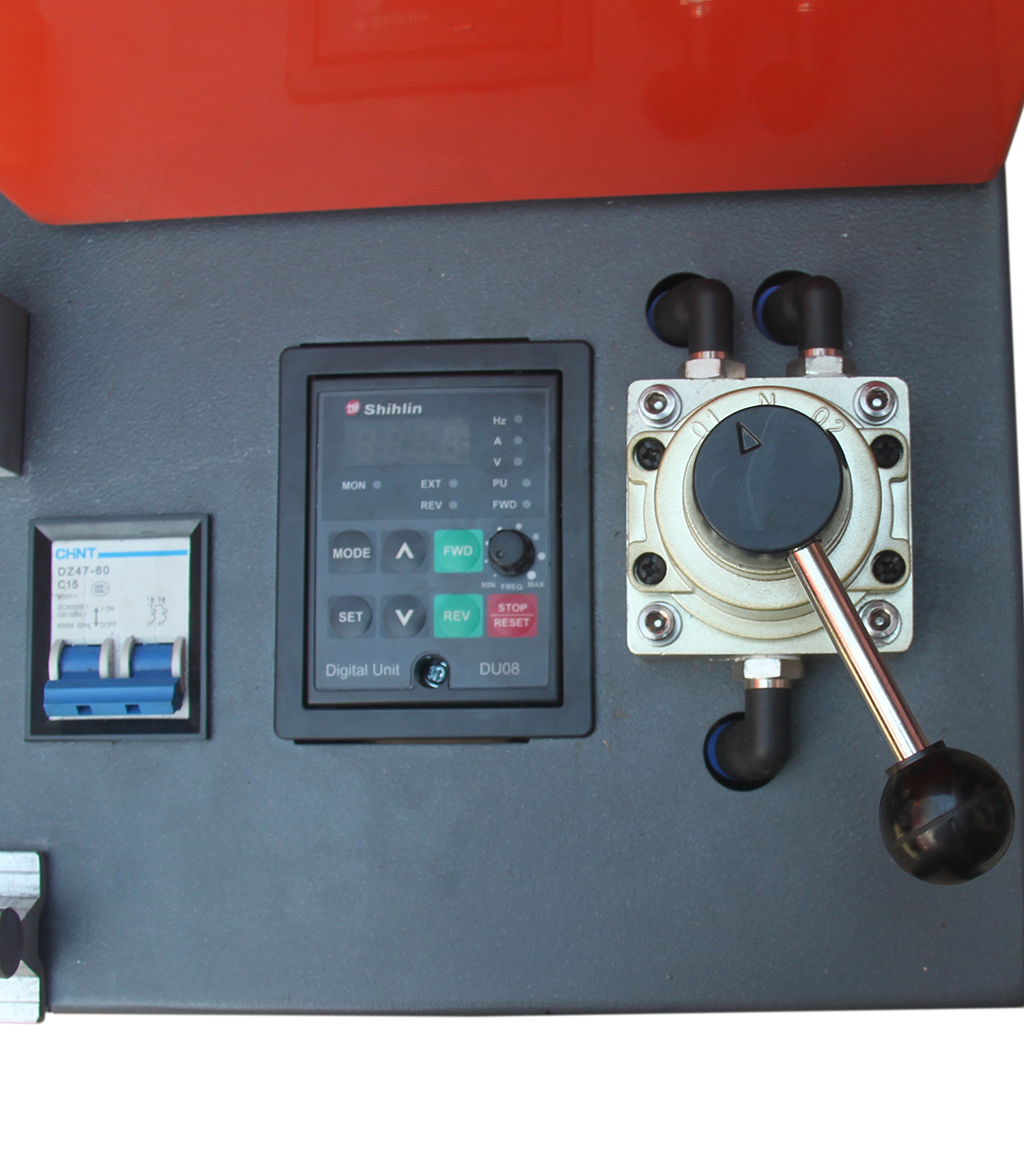

    Using motor and high quality frequency inverter to control the roller running and speed

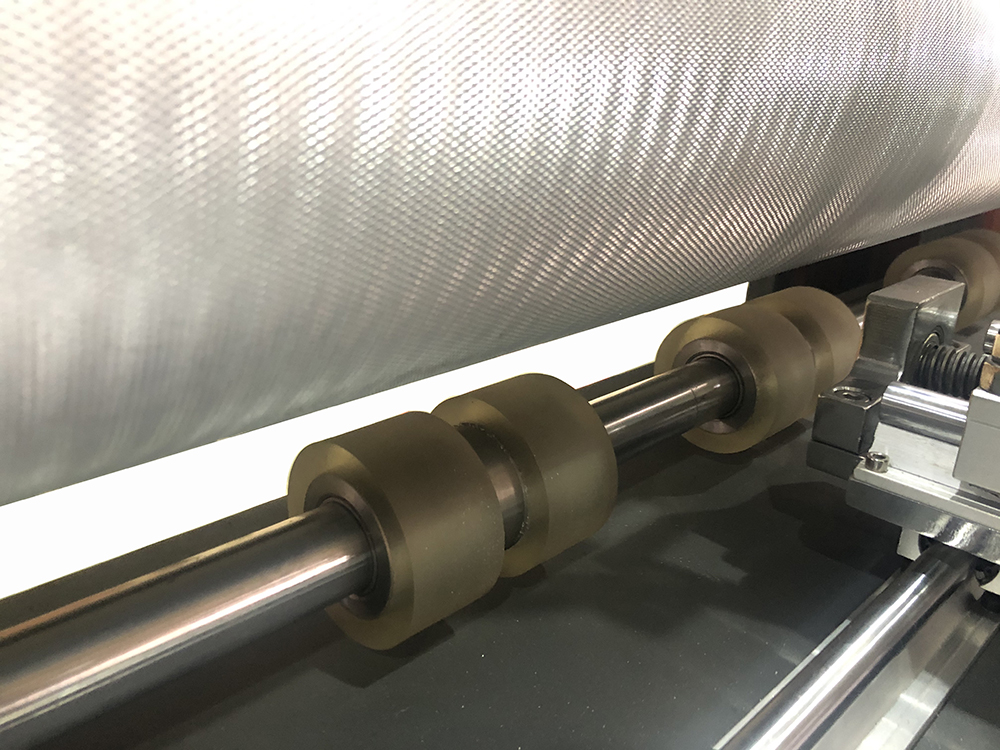

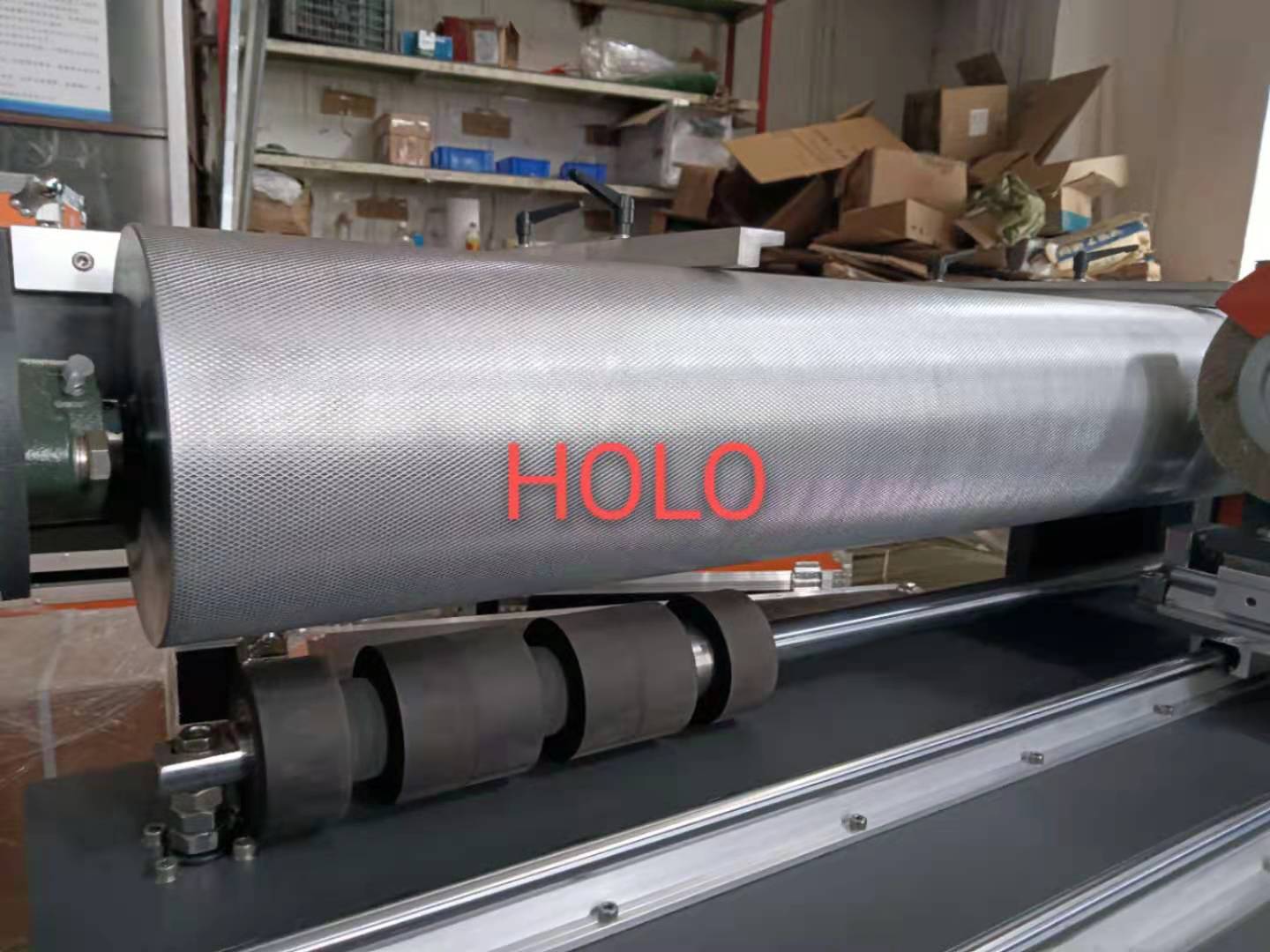

    Roller length 1000mm

Features and Benefits
Features and Benefits

    High working effect, about 8 meters long per minute.


    High quality frequency inverter, easy to change the working speed


    Wheel-base design, machine can be moved easily

Accessories and options

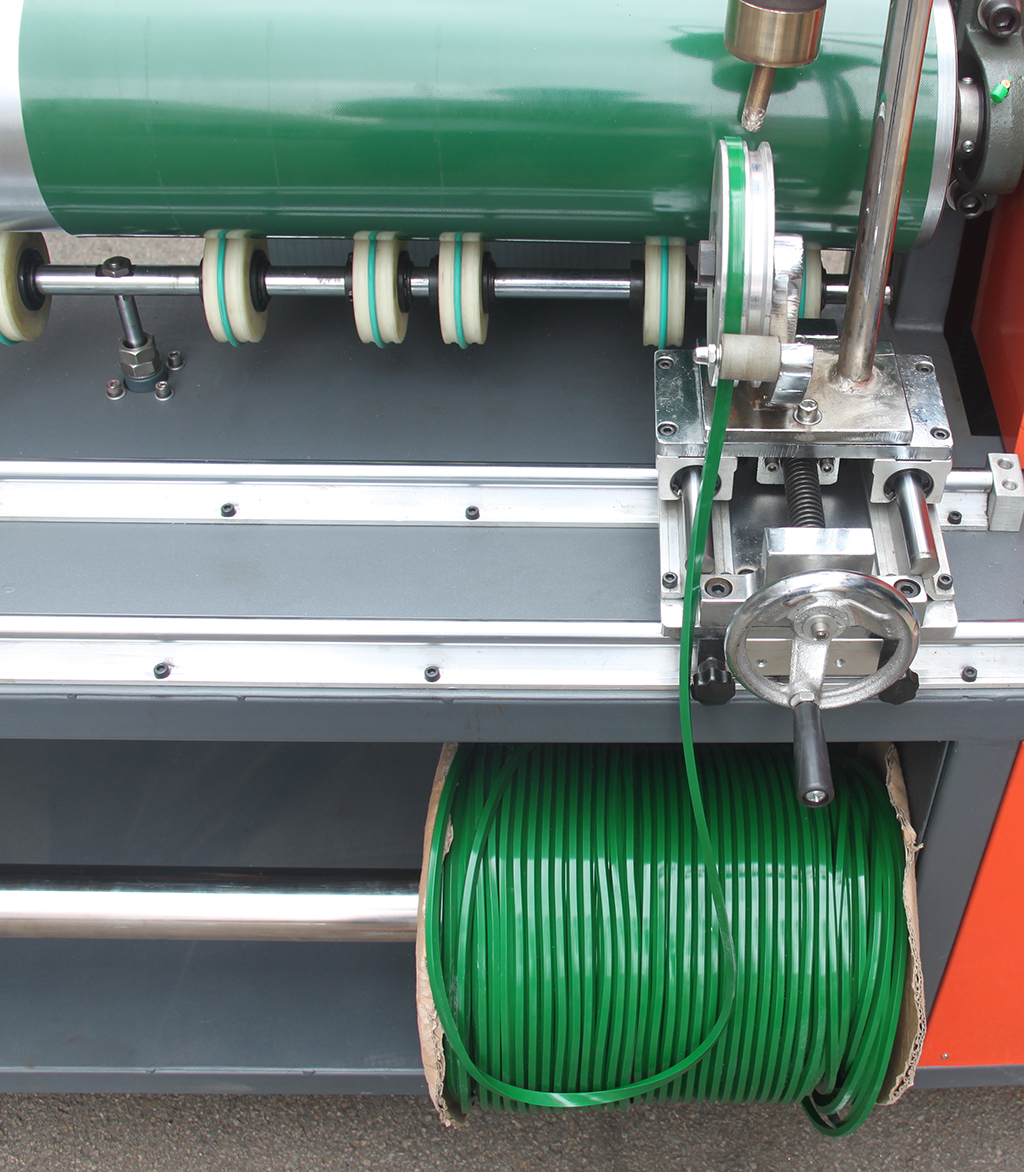

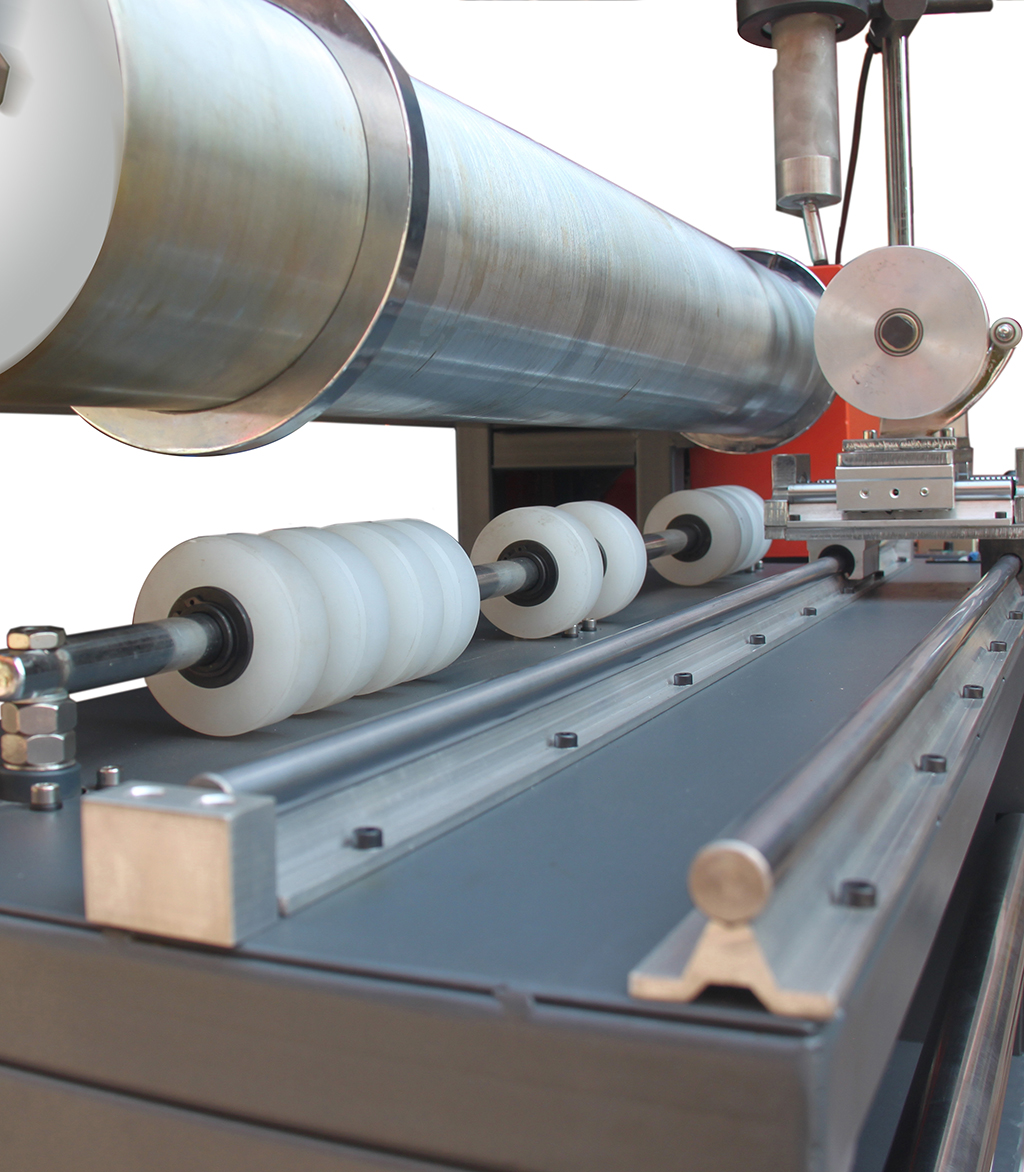

    For different guide, use different mould,
    standard with machine size is 6×4 8×5 10×6 and 13×8, o
    ther can cutom make

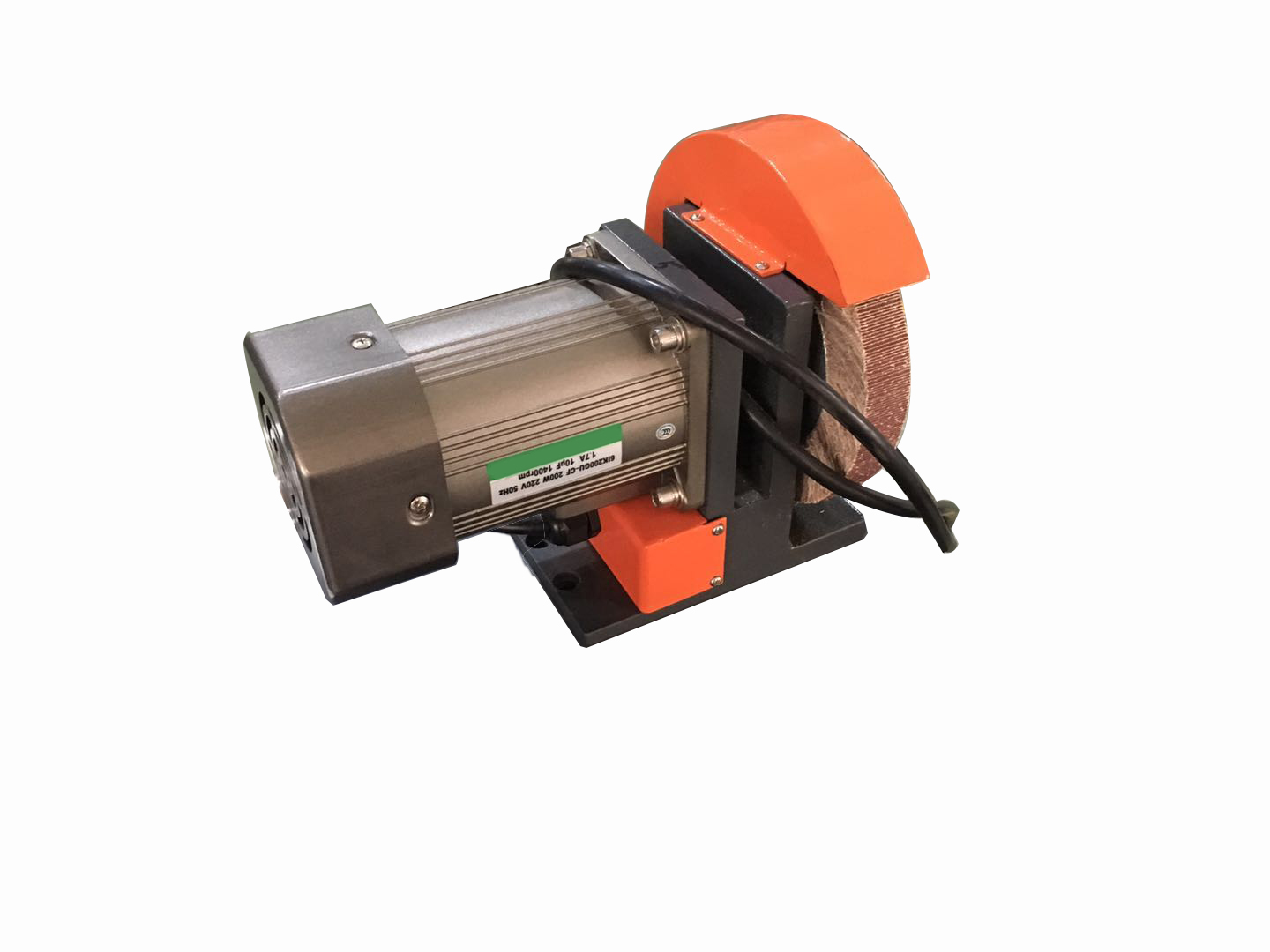

    Grinding device is optional


    Heating Gun is optional (Brand Weldy 1600w)

QB1000Data
Machine Length         (mm)1400
Machine width             (mm)580
Machine Height         (mm)1200
Machine Weight            (kg)180
Package weight            (kg)282
Package volume(L*W*H)     (mm)1540*1060*760
Machine Power             (W)550
Maximum Roller speed      (m /min)8
Maximum welding width      (mm)1000

 Note: Considering that the data update takes time, please ask the salesperson for accurate packaging data and machine size
