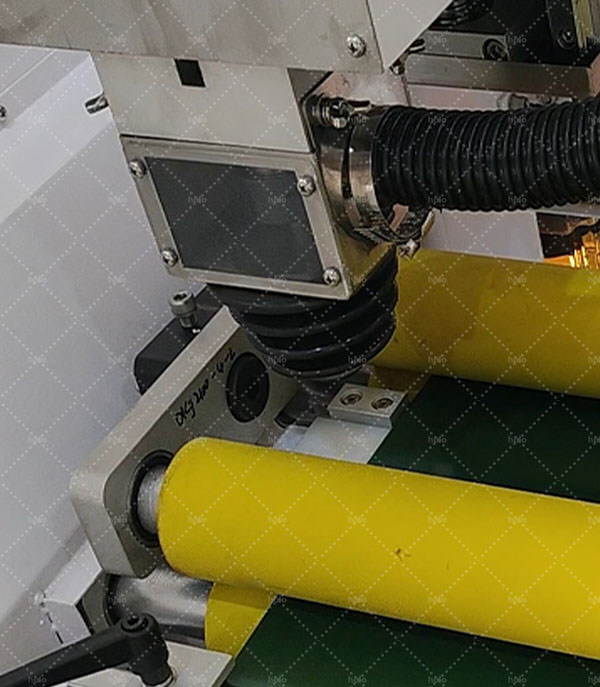

Blade protect area
Adjustable punching speed:80-120 holes per minute.

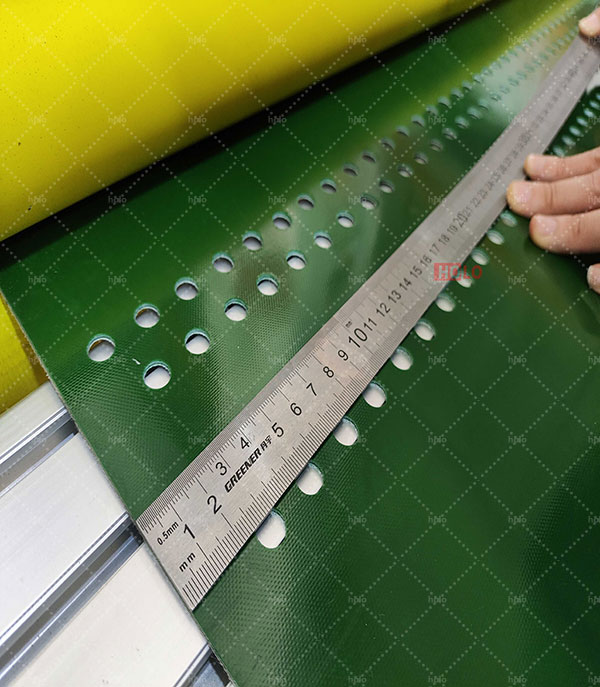

Holes type: Round size for 3mm up to 20mm

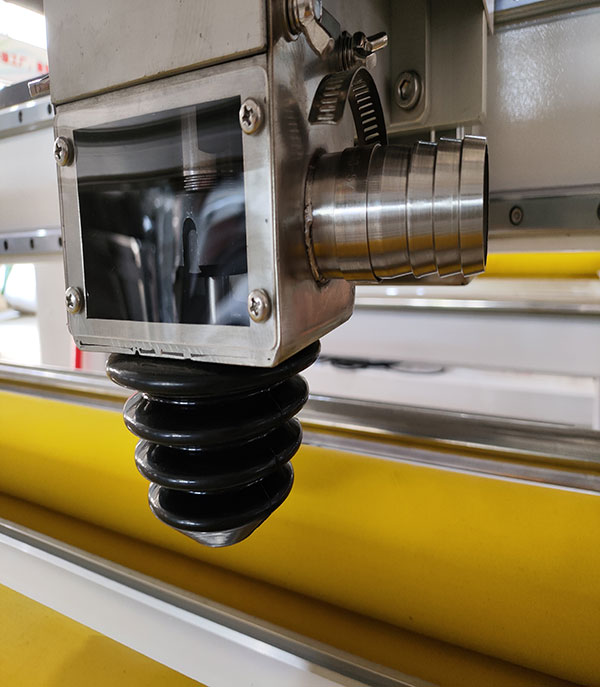

Humanized transparent observation window

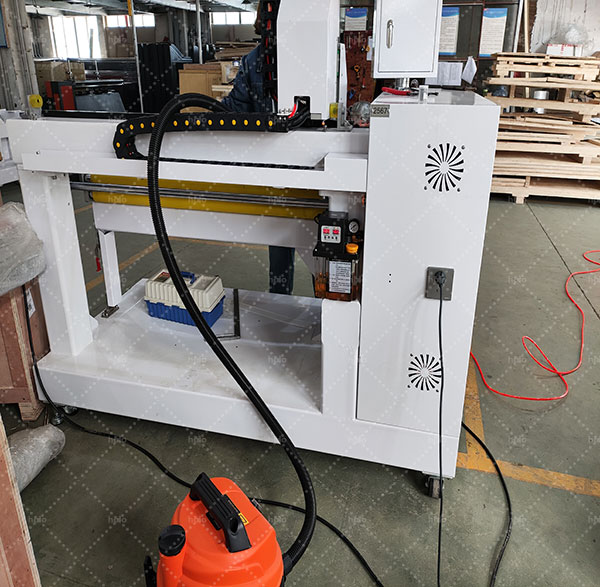

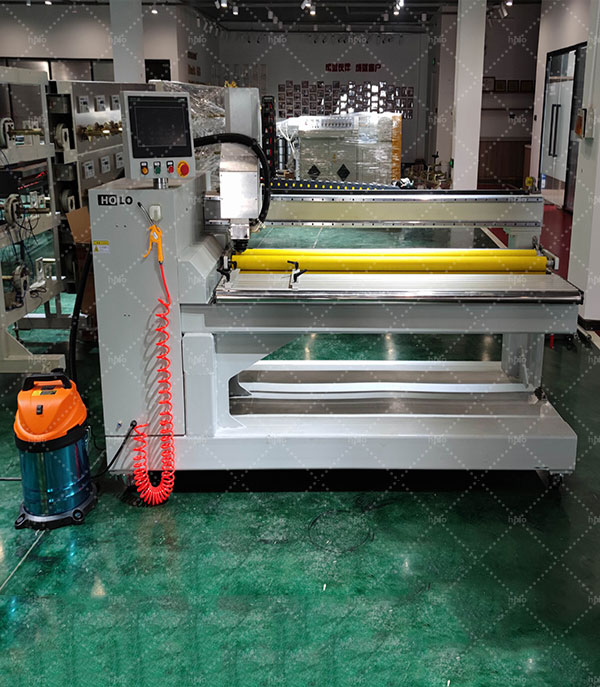

Vacuum cleaner system
Keep clean working site.
To avoid the material stuck parts.

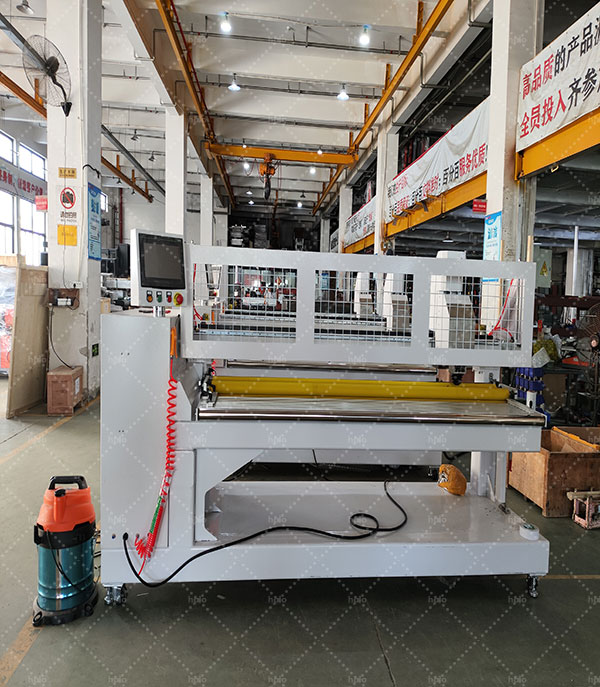

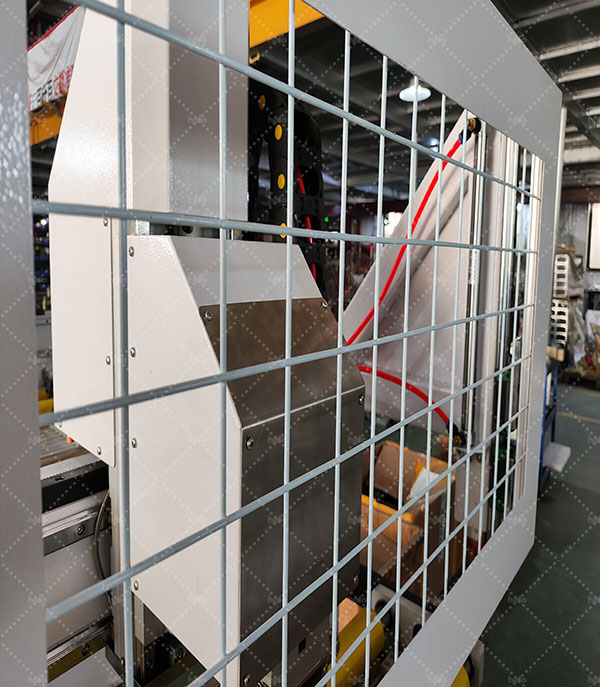

optional protection plate lift
Better protection to avoid hurt when the machine running.
The system has built-in programming protection, which can only be operated after the protective cover is opened.

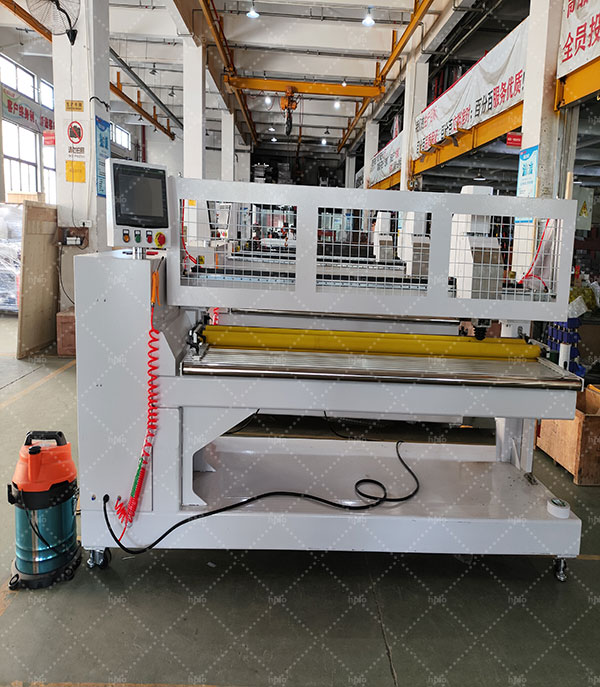

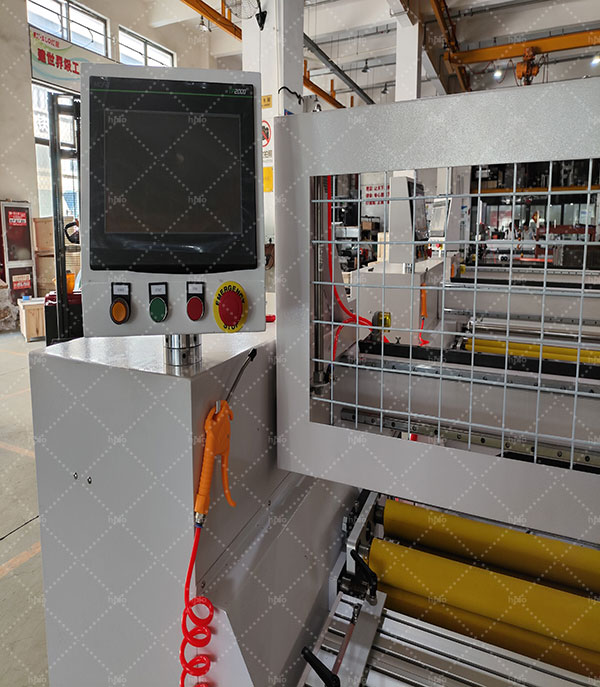

Screen and botton control
Guarantee the precise operation of data, double guarantee of physical buttons.
| Model | TD1100 | TD1600 | TD2100 | TD2600 | TD3200 |
| Belt Width | ≤1100mm | ≤1600mm | ≤2100mm | ≤2600mm | ≤3200mm |
| Protection Cover(Optional) | Drilling area≤1000mm | Drilling area≤1500mm | Drilling area≤2000mm | Drilling area≤2500mm | Drilling area≤3100mm |
| Power | 3.5KW | ||||
| Voltage | 220v 1Phase | ||||
| Belt Type | 10mm | ||||
| Drill Speed | 2PCS holes/second (The speed is affected by the hole spacing) | ||||
| Hole Size | Φ2-Φ20mm(3pcs blades as free,you can choose from Φ2-Φ15mm) | ||||
| Min Belt Length | 800mm | ||||
| Min Drill Error | The drilling error of 1000mm length of the belt is 0.1mm (the error can be calibrated through the program) | ||||
| Machine Weight | 815KG | 915KG | 1015KG | 1115KG | 1300KG |
| Machine Size | 1950*1000*1600mm | 2450*1000*1600mm | 2950*1000*1600mm | 3450*1000*1600mm | 4050*1000*1600mm |
| Components | 1.8KW Vacuum Cleaners | ||||
