Air cooling press 600mm is suitable for small belt width splice, Same good imported components and stable quality.
12mins fast splice saving your time and assistance you get more order from clients.

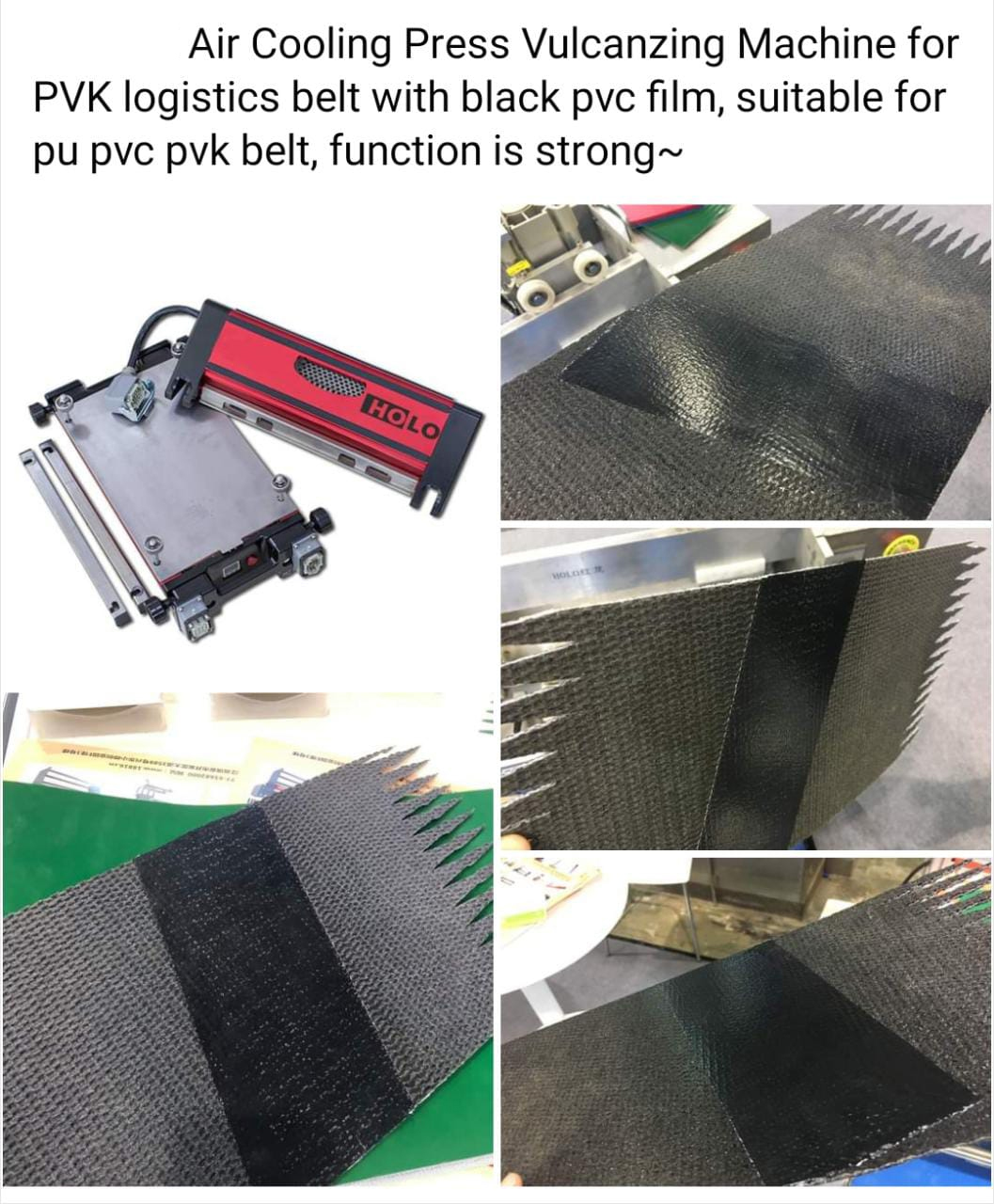

We has treadmill/PVC/PU/PKV splice document for reference.
We are keep moving on the machine effect, if you'd like know more, Please contact us
Use high quality axial fan from Chinese Taiwan with CE
Anodizing Surface no painting
2.Clamp Bar Studs&Thumbnuts
Fix tightly long belt in case of sliding
3.Completed Splicing Process Around 12 mins
Eurotherm controller from UK
SMC pressure controller from Japan
4.Electric Connect (500V)
From WAIN ELECTRICAL with CE
Simply plug it into electricity and it's ready for use

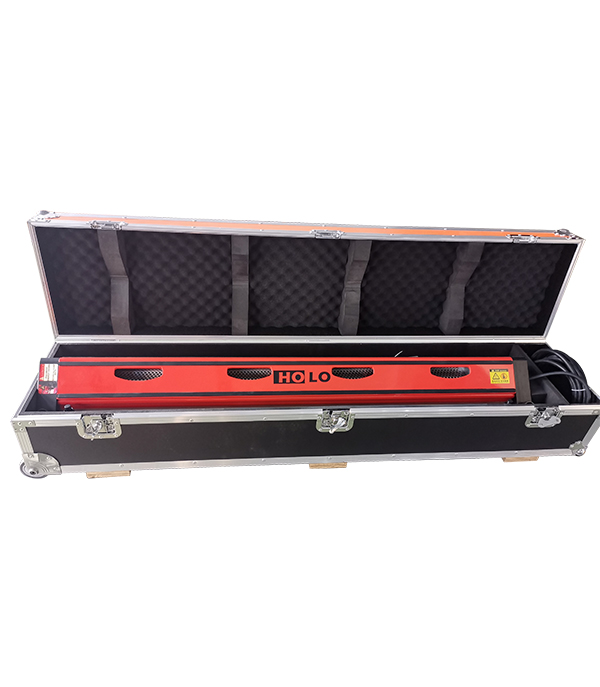

5.Flight Box with Wheels
It's easy to bring anywhere for belt splicing and on-site work
Splice times very short around 12 minutes
All-in-one unit with no external components, better than water cooling type.
Two dwell levels of temperature for different conveyor belt
Light and easy to handle
Mass production since founded factory, more than 15 years experence in machine manufacture.

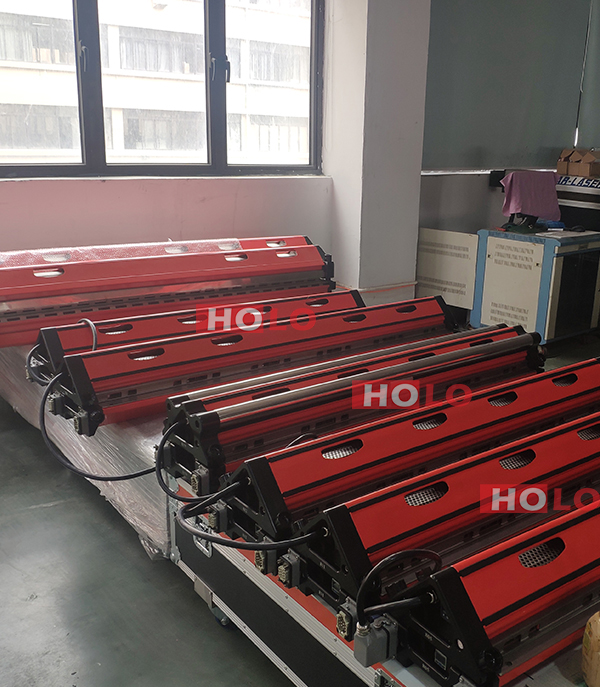

Keep machine instock for fast delivery.
|Effective length||1200 mm|
|Weight upper part||28.5 kg|
|Weight lower part||25.5 kg|
|Total weight||54 kg|
|Overall Height||225 mm|
|Press+case+wooden box weight||104kg|
|Wooden box size(L*W*H)||1400*460*660mm|
