V-GUIDE

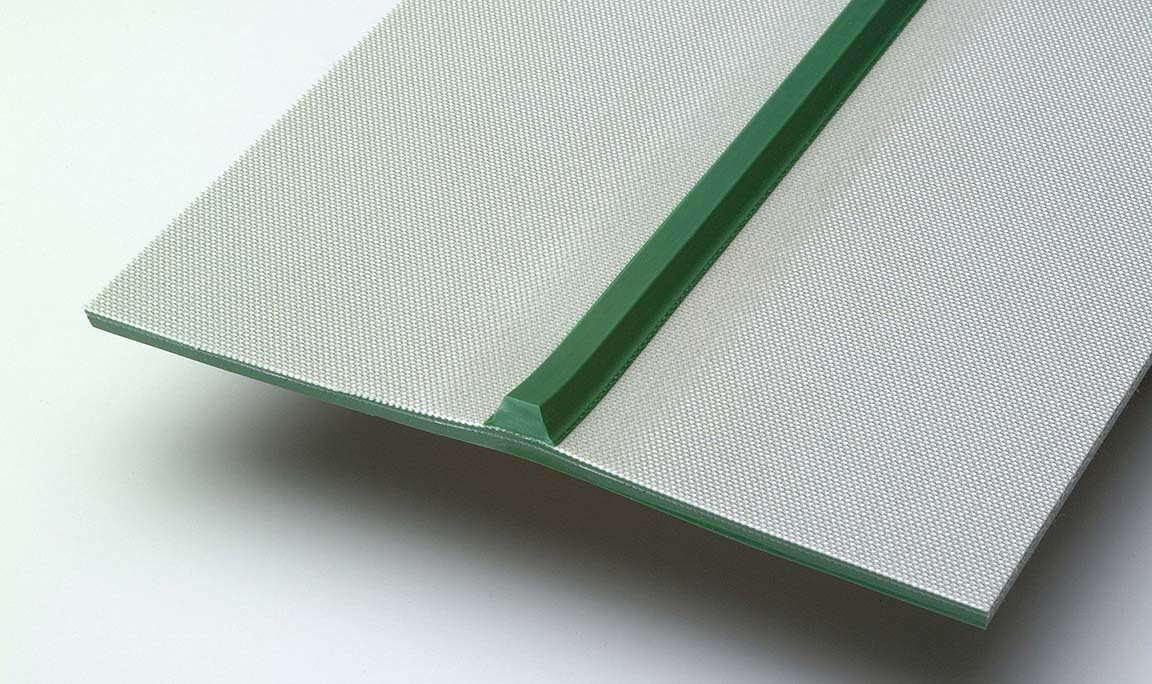

V-guides are profiles applied to the bottom of conveyor belts to help in tracking the belt. They are a trapezoidal cross section (similar to V-belts) and come in different sizes.

V-guides are generally thermal welded or vulcanized to the belt.



Placement of the guide(s) is dictated by the design of the conveyor.

A single guide on belt centerline is the most common V-guide request, although belts can have the guide not on centerline, or have multiple guides.

 It is crucial to understand that the use of V-guides does not fully prohibit tracking issues—tracking problems caused by poor conveyor design and/or improper maintenance are generally not eliminated by adding a V-guide to the belt.

Use of guides

Short, wide belts, and long, narrow belts are both good candidates for V-guides, as well as popular for reversing belts. Guides also aid in performance on systems with low tension or low speed. Belts with side loading/diverting may also benefit from use of guides. Again, keep in mind that guides only aid in tracking a belt. They cannot overcome conveyor design or maintenance shortcomings.

Placement

Positioning the guide on the belt is critical for proper performance. Start with the centerline of the guide and tell us where that line is positioned on the belt: i.e. centerline of belt; 2" from centerline of belt, etc. Avoid using a worn belt edge as a reference point to measure guide placement from the edge(s) of the belt, as this may result in an incorrectly positioned V-guide. When multiple guides are required always give center to center of guides.

Sizes

Guides come in different sizes, with larger belts usually having a larger sized V-guide. To identify V-guide size, measure the width at the widest point, where it attaches to the belt, and then measure the thickness. (See the chart below for dimensions). Guides should not fit snuggly in the grooves on the pulleys − there should be a 1/16" clearance on both sides and bottom of the guide. Selecting a notched guide will allow you to negotiate a slightly smaller pulley than with a solid guide.




V-GUIDE GENERAL SPECS




Domestic Size Designation	Nearest European Size Designation	Dimensions Domestic/Metric						Generally add these amounts to the Minimum Pulley Diameter of the base belt, (back bends and others circumstances may increase the addition), Check with the Factory.
		1		2		3		Standard	Notched
		inch	millimeter	inch	millimeter	inch	millimeter	inch	inch
OOO	K6	0.250	6.0	0.156	4.0	0.156	4.0	0.500	0.500
Z	K8	0.313	8.0	0.188	5.0	0.188	4.0	1.750	0.750
O	K10	0.375	10.0	0.250	6.0	0.250	5.0	2.50	1.000
A	K13	0.500	13.0	0.313	8.0	0.313	6.0	3.000	1.500
N/A	K15	N/A	15.0	N/A	8.0	N/A	9.5	3.500	2.000
B	K17	0.625	17.0	0.375	11.0	0.375	9.5	5.000	2.50
C	K22	0.938	22.0	0.438	15.0	0.625	11.0	6.000	3.500
N/A	K30	N/A	30.0	N/A	18.0	N/A	13.0	8.000	5.000
THE PULLEYS, CONVEYOR BED AND OR IDLER ROLLERS SHOULD BE GROOVED 1/4 INCH WIDER AND 1/16 INCH DEEPER THAN THE SIZE OF THE ADDED V-GUIDE.
