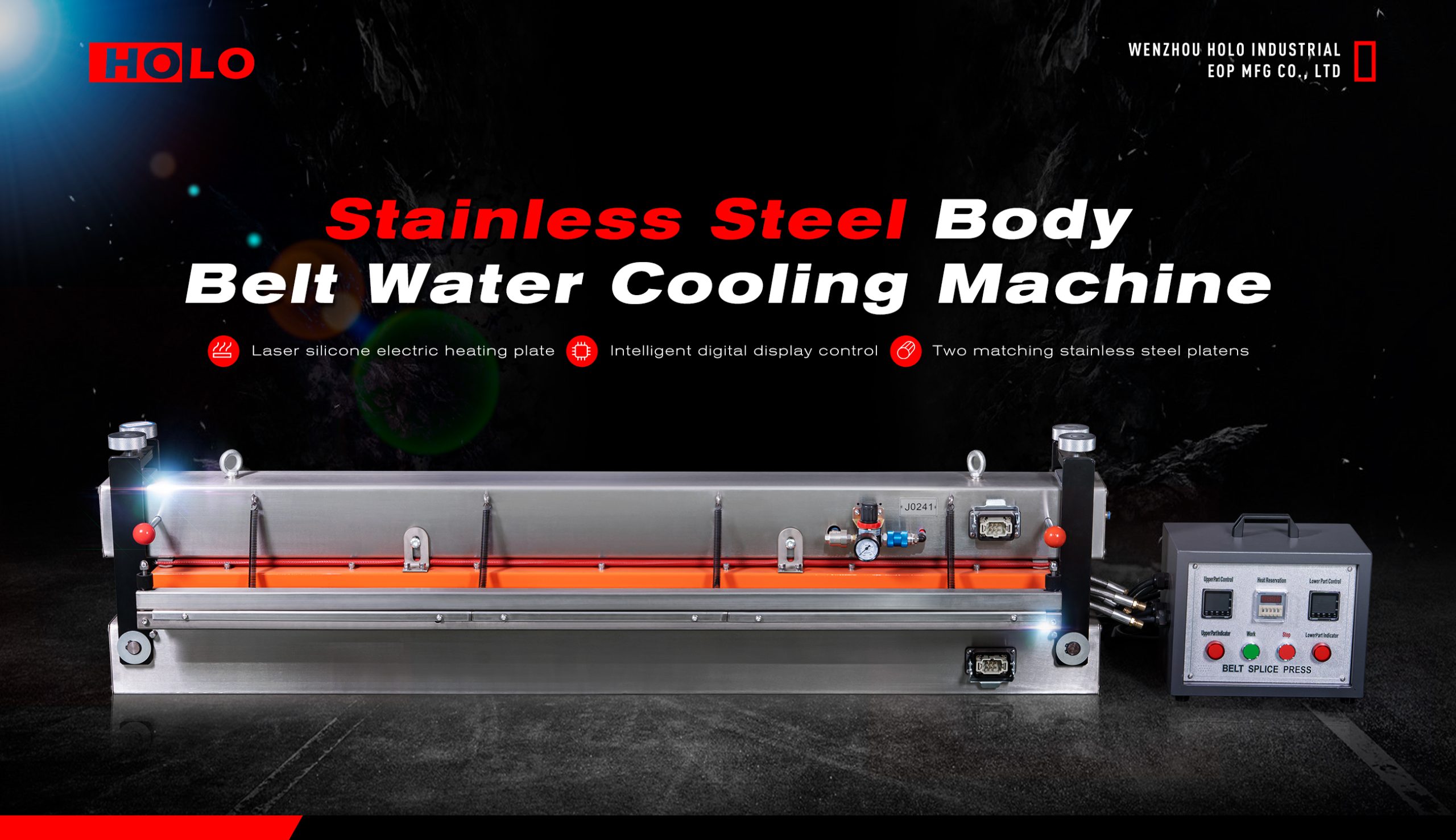

Water Cooling Belt Splicing Press (Stainless Steel) PB600-1600
Precise & Reliable Water-Cooled Splicing Solution for PVC & PU Conveyor Belts
Engineered for medium to wide conveyor belts, this water-cooled splicing machine delivers precise temperature control, consistent splice quality, and stable performance in industrial environments.
Key Advantages
Lightweight Aluminum Alloy Frame
Strong, corrosion-resistant, and suitable for long-term industrial use.Laser-Processed Silicone Heating Plate
Ensures uniform heat distribution for consistent PVC & PU belt splicing.Digital Temperature & Time Control

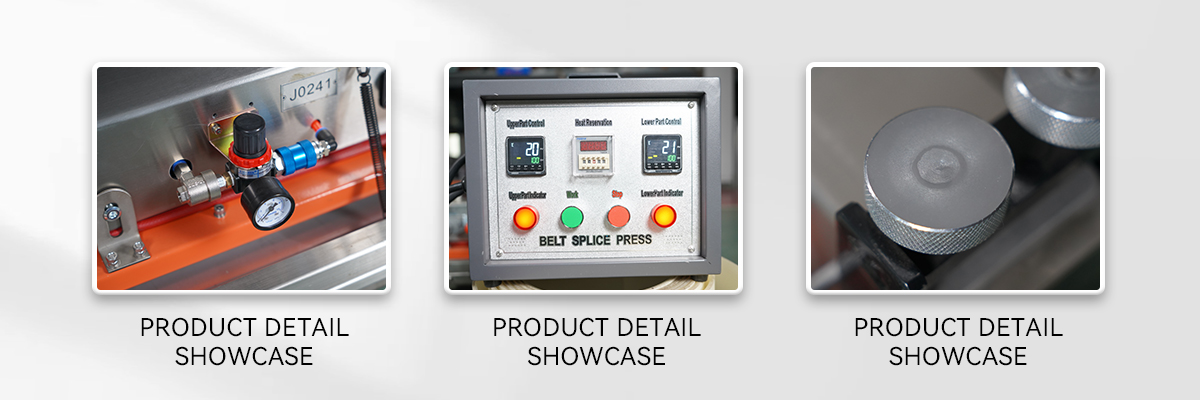

Accurate settings and real-time monitoring for repeatable results.Stainless-Steel Support Trays
Provide stable belt positioning and precise alignment during splicing.Efficient Water-Cooling System
Shortens cooling time, improves splice consistency, and boosts productivity.Wide Belt Capacity
Handles belts up to 1500 mm width and 10 mm thickness.
Application Areas
Technical Specifications
| Model | PB 600*150 | PB 1100*150 | PB 1600*150 |
|---|---|---|---|
Belt Width | 500mm/19.7″ | 1000mm/39.4″ | 1500mm/59.1″ |
| Heating Zone | 600*130(mm)23.6″*5.1″ | 1100*130(mm)43.3″*5.1″ | 1600*130(mm)62.9″*5.1″ |
| Specifications | 800*345*330(mm) | 1300*345*330(mm) | 1800*345*420(mm) |
| Maximum Temperature | 200℃ | ||
| Pressure | 2Bar | 2Bar | 2Bar |
| Maximum Belt Thickness | 10mm/0.8″ | ||
| Minimum Length | 850mm/33.5″ | 850mm/33.5″ | 900mm/35.4″ |
| Lower Mold Height | 130mm/5.1″ | 130mm/5.1″ | 175mm/6.9″ |
| Total Weight | 65kg/143.3lb | 105kg/231.5lb | 150kg/330.7lb |
| Voltage | 220v | ||
| Power | 2.5kw | 4.2kw | 5.5kw |
| Cooling Method | Water cooling | ||
| Jointing Time (PU Belt) | Heating time: 20 minutes Insulation time: 3 minutes Cooling time: 3 minutes | ||
Why Choose HOLO
Reliable Water-Cooling Belt Press
Although manufactured in China, the PB Series is designed, assembled, and tested according to international industrial quality standards, comparable to European and American benchmarks.
Key advantages include:
Precision laser silicone heating for uniform temperature
Digital control for accurate, repeatable operations
Water-cooling system for consistent, fast, and safe belt splicing
Matched stainless-steel trays for optimal belt support
Handles PVC and PU belts up to 1500 mm width and 10 mm thickness
HOLO delivers precision, durability, and operational convenience for professional belt splicing.
Quality Control & Factory Inspection
Each PB Series press undergoes a dual-stage factory inspection:
Pre-storage inspection
Verifies mechanical stability, heating performance, water-cooling function, and electrical safety.Pre-shipment inspection
Confirms temperature accuracy, pressure consistency, joint quality, and overall performance before delivery.
This ensures each machine meets HOLO quality standards.
Warranty & After-Sales Support
HOLO provides a 12-month warranty from shipment date.
During the warranty period:
Technical support and troubleshooting
Spare parts for quality-related issues
Remote assistance via email, phone, WhatsApp, or video guidance
Long-term technical support remains available after the warranty period.
FAQ & Support
Q1: What belt widths can the PB Series handle?
A: 500 mm, 1000 mm, and 1500 mm depending on model.
Q2: What is the maximum belt thickness?
A: Up to 10 mm / 0.8″.
Q3: How long does PU belt jointing take?
A: Heating: 20 min, Insulation: 3 min, Cooling: 3 min per joint.
Q4: Is operation simple?
A: Yes, intelligent digital display allows easy temperature and time setting.
Q5: How does the cooling system work?
A: Water-cooling ensures rapid, uniform cooling for consistent quality and safety.
Q6: What warranty and support does HOLO provide?
A: 12-month warranty, technical support, spare parts, and long-term after-sales service.
Contact HOLO
For technical consultation, wide-belt water-cooling splicing solutions, or after-sales support, contact HOLO directly.
Our expert team ensures your PVC and PU conveyor belt operations are precise, safe, and efficient.
