Portable Timing Belt Joint Machine
Automatic Belt Jointing Machine for Continuous Operation
Compact solution for fast and precise belt jointing with minimal downtime.
-
Compact & Portable
On-site jointing without disassembly. -
One-Button Automatic Cycle
Hot-press and cooling fully automated. -
Stable, Flat Joint Quality
Durable and wear-resistant joints. -
Wide Belt Compatibility
Adjustable temperature and press time. -
Customizable Dimensions
Adapted to different production lines.
Application Areas
Technical Specifications
| Machine Model | Portable Timing Belt Splicing Machine | |||||
|---|---|---|---|---|---|---|
| Voltage | Single phase 220V | |||||
| Power | 2200W | |||||
| Heating Board Size | 130mm*150mm | |||||
| Timing Belt Max. Width | 50mm | |||||
| Timing Belt Max. Thickness | 50mm | |||||
| Min.Splicing Circumference | 420mm | |||||

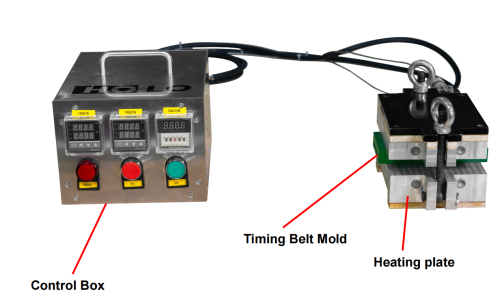

Product Structure Diagram
Why Choose HOLO
Efficient & Reliable Belt Jointing Solutions
HOLO develops belt splicing equipment focusing on precision, portability, and operational efficiency:
-
On-site, portable operation reduces downtime
-
Automatic hot-press and cooling for reliable joints
-
Adjustable settings for different belt materials and thicknesses
-
Precise and durable belt connections
-
Customizable dimensions for production flexibility
Although manufactured in China, HOLO machines are engineered to benchmark the quality standards of leading European and American brands, ensuring reliable and precise belt jointing.
Quality Control & Factory Inspection
Dual Inspection System
Each Portable Timing Belt Joint Machine undergoes:
-
Pre-assembly inspection to ensure mechanical integrity and heating accuracy
-
Pre-shipment inspection to verify joint precision, heating performance, and operational reliability
This ensures high-quality joints and safe, stable operation on production lines.
After-Sales Service & Support
-
Warranty: 1 year
-
Support Services: Installation guidance, operator training, and technical consultation
-
Special Applications: HOLO engineering team supports customized portable belt jointing solutions
FAQ & Support
Q1: Can this machine operate without stopping the production line?
A: Yes. Its compact and portable design allows on-site operation without dismantling equipment.
Q2: How is jointing performed?
A: One-button start automates the hot-press and cooling process for precise, durable joints.
Q3: Can it handle different belt materials and thicknesses?
A: Yes. Temperature and pressing time are adjustable for wide compatibility.
Q4: Is the joint stable and reliable?
A: Yes. Precise hot-press ensures flat, wear-resistant joints with smooth transmission.
Q5: Can the machine size be customized?
A: Yes. Dimensions can be adjusted according to customer requirements for flexible applications.
