Pneumatic Timing Belt Joint Machine
Pneumatic Pressure-Controlled Jointing Solution for Seamless Timing Belt Transmission
Key Features
-
Pneumatic-driven pressure system for stable and precise joint control
-
Dual-side synchronous heating ensures uniform temperature distribution
-
One-button operation completes heating and cooling automatically
-
Adjustable temperature range for different timing belt materials
-
Designed for safe and efficient jointing in industrial environments
For belt type, width, and jointing requirements, please submit your details via the contact form.
Application Areas
Technical Specifications
| Machine Model | 200 Timing Belt Jointing Machine | |||||
|---|---|---|---|---|---|---|
| power | 4kw | |||||
| voltage | 220v | |||||
| Belts are available | pu | |||||
| Belt splice time | 20min-25min | |||||
| atmospheric pressure | 0.5MPa | |||||
| Effective heating wide | 200*200 | |||||
| assorted | Two Heating rods | |||||
| Heating time | 15min | |||||
| Heating time | Water cooling | |||||
| Machine weight | 160KG | |||||
| specification | 450*600*1200 | |||||
| The minimum circumference of the ring | 850mm | |||||

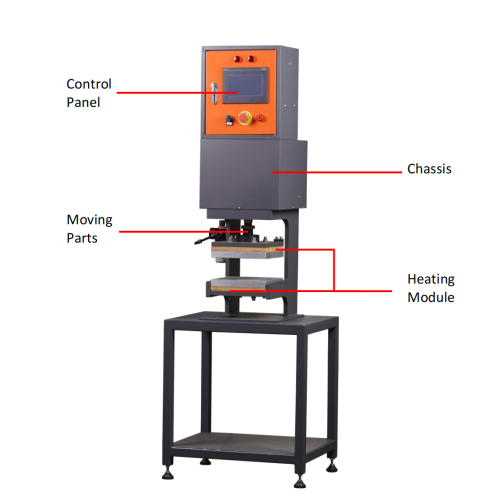

Product Structure Diagram
Why Choose HOLO
HOLO designs timing belt jointing equipment with a focus on pressure stability, joint consistency, and operational efficiency.
This pneumatic joint machine helps factories achieve reliable, repeatable belt joints while reducing operator workload.
-
Stable pneumatic pressure for consistent joint quality
-
Clean and even heating for smooth, durable belt joints
-
Simple operation suitable for production and maintenance use
-
Practical solution for factories and equipment distributors
Quality Control & Factory Inspection
Each Pneumatic Timing Belt Joint Machine is inspected before shipment, including:
-
Pneumatic pressure stability testing
-
Heating plate temperature uniformity verification
-
Control system and safety function checks
-
Final operational inspection prior to delivery
After-Sales Service & Support
-
Installation guidance and operation training support
-
Technical consultation for belt material and jointing parameters
-
Spare parts availability and long-term service support
-
Remote technical assistance when required
FAQ & Support
Q1: What types of timing belts can this machine handle?
A: It is suitable for various thermoplastic timing belts used in industrial transmission systems.
Q2: How is joint pressure controlled?
A: The machine uses a pneumatic pressure system that allows precise adjustment for stable and uniform jointing.
Q3: Is the jointing process automatic?
A: Yes. With one-button operation, the machine automatically completes heating and cooling without manual pressing.
Q4: How is joint quality ensured?
A: Dual-side synchronous heating provides even temperature distribution, resulting in smooth and wear-resistant joints.
Q5: Is the machine safe to operate?
A: Yes. It features adjustable temperature control, heat protection design, and fast cooling for safe operation.
