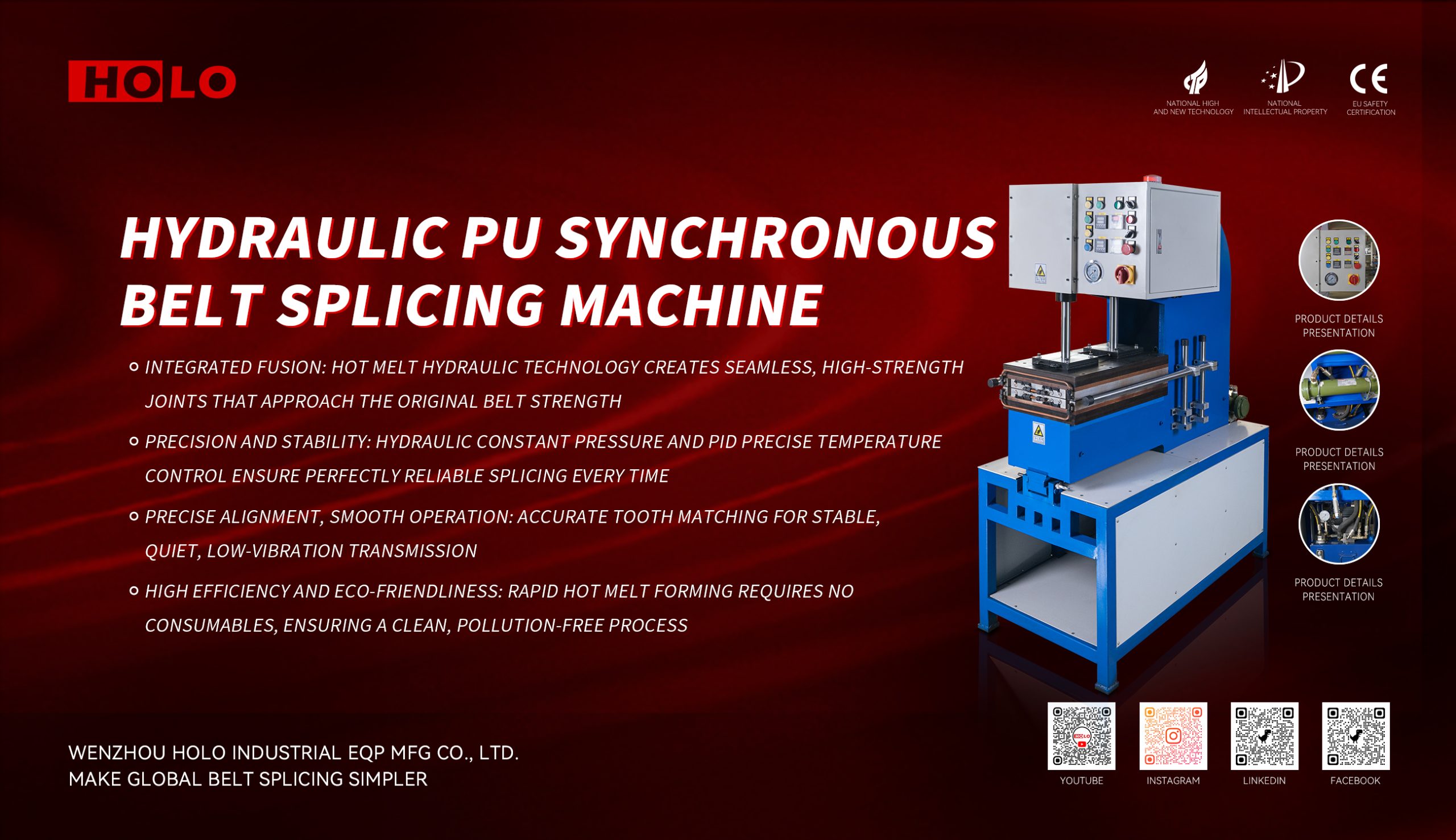

Hydraulic PU Timing Belt Joint Machine
Hydraulic Splicing Machine
For PU Timing Belts
Precise pressure. Stable jointing.
-
PU Timing Belt Dedicated
Optimized pressure distribution. -
100 / 150 / 200 mm Widths
Custom sizes available. -
Hydraulic Pressure System
Stable force with pressure gauge. -

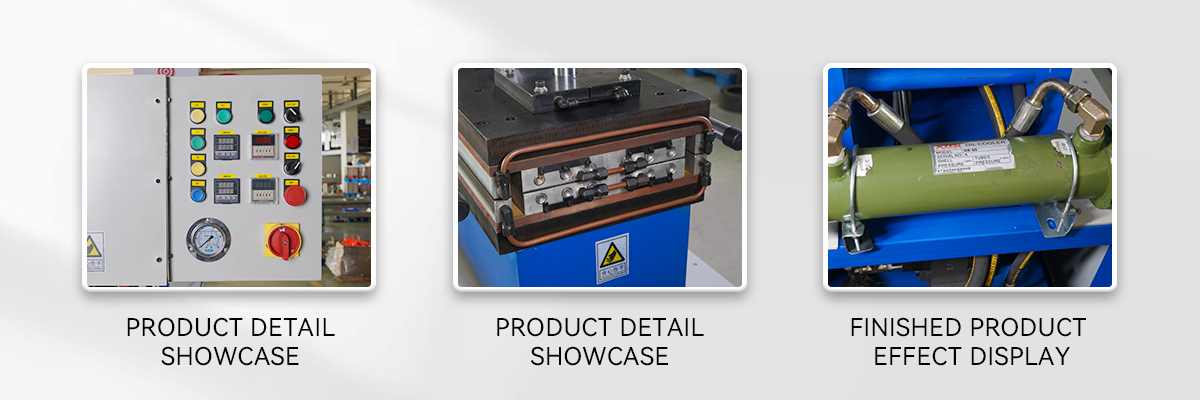

Multi-Button Control Panel
Accurate, repeatable operation. -
Pipe-Frame Support Structure
Stable positioning, ergonomic use. -
Simple Electrical System
Reliable, low maintenance.
Application Areas
Technical Specifications
| Model | 500 | |
|---|---|---|
| Voltage | Three-phase 415V (Customizable) | |
| Power | 4kw | |
| Maximum Pressure | 10Mpa | |
| Maximum Belt Width | 500mm | |
| Heating Plate Size | 600X360mm | |
| Minimum Butt Joint Circumference | 1300mm | |
Why Choose HOLO
Reliable PU Timing Belt Jointing Equipment
Although manufactured in China, this hydraulic PU timing belt joint machine is designed, assembled, and tested according to international industrial standards, comparable to European and American equipment in performance and durability.
Key advantages include:
-
Purpose-built for PU timing belts
-
Hydraulic pressure for precise and repeatable joints
-
Standard and custom widths available
-
Stable structure with easy operation
-
Reliable electrical and control systems
HOLO focuses on professional belt splicing solutions, not low-cost compromises.
Quality Control & Factory Inspection
Each machine undergoes strict factory inspection before delivery:
-
Pre-storage inspection
Verification of hydraulic pressure stability, control panel accuracy, and structural integrity. -
Pre-shipment inspection
Full functional testing to ensure safe operation, precise pressure control, and consistent joint quality.
Only machines that meet HOLO quality standards are approved for shipment.
Warranty & After-Sales Support
HOLO provides a 12-month warranty from the shipment date.
Warranty coverage includes:
-
Technical troubleshooting support
-
Replacement parts for quality-related issues
-
Remote assistance via email, WhatsApp, phone, or video guidance
Long-term technical support remains available beyond the warranty period.
FAQ & Support
Q1: What belt types is this machine designed for?
A: Specifically designed for PU timing belts.
Q2: What standard widths are available?
A: 100 mm, 150 mm, and 200 mm. Custom widths are available on request.
Q3: Why use a hydraulic system instead of manual pressure?
A: Hydraulic pressure provides more stable, uniform, and precise force, ensuring consistent joint quality.
Q4: Is the machine easy to operate?
A: Yes. The multi-button control panel and stable support structure make operation safe and user-friendly.
Q5: What warranty does HOLO provide?
A: 12-month warranty with technical support and spare parts service.
Contact HOLO
For PU timing belt jointing solutions, technical consultation, or customized machine configurations, contact HOLO directly.
We provide stable, precise, and professional splicing solutions for industrial timing belt applications.
