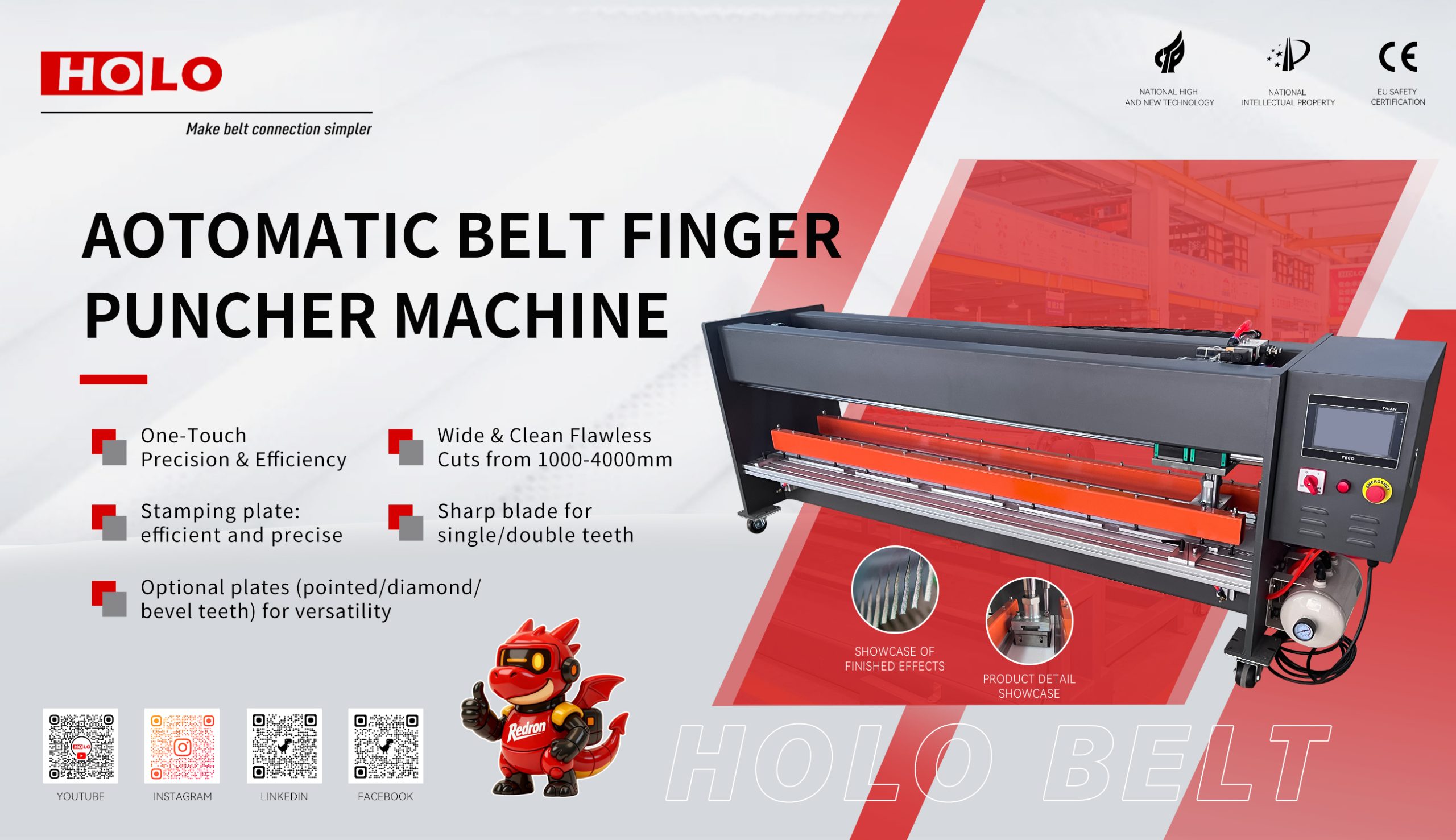

High-Speed Automatic PVC PU Belt Finger Puncher TB1000-5000
Fully Automatic Finger Punching Solution for PVC and PU Conveyor Belts
Key Features
-
Fully automatic punching: one-button operation completes the entire process
-
Easy finger specification switching: change cutter head to adjust punch size
-
High punching accuracy: computer-controlled execution
-
Operator-friendly: minimal manual intervention required
-
Enhanced safety: reduces manual handling and avoids accidents
For belt width, finger pitch, and application requirements, please submit your details via the contact form.
Application Areas
Technical Specifications
| Machine Model | High-speed Automatic Tooth Cutting Machine 1m | High-speed Automatic Tooth Cutting Machine 1.6m | High-speed Automatic Tooth Cutting Machine 2m | High-speed Automatic Tooth Cutting Machine 3m | High-speed Automatic Tooth Cutting Machine 3.5m |
|---|---|---|---|---|---|
| Power | 0.75kw | 0.75kw | 0.75kw | 1kw | 1kw |
| Standard Voltage | 220v | 220v | 220v | 220v | 220v |
| Applicable Belts | PU/PVC/Substrate Belt | PU/PVC/Substrate Belt | PU/PVC/Substrate Belt | PU/PVC/Substrate Belt | PU/PVC/Substrate Belt |
| Maximum Standard Belt Thickness | 8mm | 8mm | 8mm | 8mm | 8mm |
| Effective Width | 1050mm | 1650mm | 2050mm | 3050mm | 3550mm |
| Specifications (mm) | 1770*540*1110 | 2370*540*1110 | 2770*540*1110 | 3820*540*1210 | 4520*580*1210 |
| Common Cylinder Working Pressure | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa |
| External Connecting Pipe | diameter14mm | diameter14mm | diameter14mm | diameter14mm | diameter14mm |
| Machine Weight | / | / | / | / | / |
| Packaging Weight | / | / | 714kg | 1140kg | / |
| Standard-equipped Punch | Spur Gear Z-10×80 / Spur Gear Z-20×80 | ||||
| Air Compressor | Air Storage:120L Displacement:720L/min | Air Storage:120L Displacement:720L/min | Air Storage:120L Displacement:720L/min | Air Storage:120L Displacement:720L/min | Air Storage:120L Displacement:720L/min |
Why Choose HOLO
HOLO develops belt punching equipment with a focus on precision, safety, and workflow efficiency.
The TB1000–4000 Finger Puncher helps factories and distributors achieve consistent, accurate belt teeth while minimizing operator risk.
-
Fully automatic operation reduces labor requirements
-
High precision ensures uniform finger profiles
-
Quick specification changes for flexible production
-
Safe and stable operation for industrial environments
Quality Control & Factory Inspection
Each TB1000–4000 undergoes inspection before shipment, including:
-
Punching accuracy and repeatability testing
-
Cutter head specification switch verification
-
Electrical control and safety checks
-
Final operational inspection
After-Sales Service & Support
-
Installation guidance and operator training
-
Technical consultation for belt type, width, and finger pitch
-
Spare parts supply and long-term service support
-
Remote technical assistance available
FAQ & Support
Q1: What types of belts can this machine punch?
A: Suitable for PVC and PU conveyor belts of various widths.
Q2: How is punching precision ensured?
A: The process is computer-controlled, providing consistent and accurate finger teeth.
Q3: Can I switch finger sizes easily?
A: Yes. Simply change the cutter head to adjust punching specifications.
Q4: Is the operation safe?
A: Yes. Fully automatic operation minimizes manual handling and reduces accident risk.
Q5: Can HOLO support customized applications?
A: Yes. Our team can assist with belt width, finger pitch, and production requirements.
