Extra-Wide Air Cooling Belt Splicing Press PA2100-3600
Extra-Wide Air-Cooled Belt Splicing Machine (2100–4200 mm)
Fast and intelligent splicing solution for extra-wide PVC & PU conveyor belts.
-
Fast Splicing Cycle
8–15 min per splice. -
Extra-Wide Belt Support
2100–4200 mm width. -
Air-Cooling System
Uniform cooling, shorter cycle. -
Digital Control System
Stable and repeatable parameters. -
Industrial-Duty Structure
Reliable long-term operation.
Application Areas
Technical Specifications
| Model | PA-2400 Gen-3 | PA-2700 Gen-3 | PA-3000 Gen-3 | PA-3300 Gen-3 |
|---|---|---|---|---|
| Effective Length | 2400mm/94.5″ | 2700mm/106.3″ | 3000mm/118.1″ | 3300mm/129.9″ |
| Effective Width | 150mm/5.9″ | 150mm/5.9″ | 150mm/5.9″ | 150mm/5.9″ |
| Weight Upper Part | 63kg/138.9Lb | 69kg/152.1Lb | 77kg/169.7Lb | 92kg/202.8Lb |
| Weight Bottom Part | 100kg/220.5Lb | 133kg/293.2Lb | 140kg/308.6Lb | 160kg/352.7Lb |
| Weight | 163kg/359.4Lb | 202kg/293.2Lb | 217kg/478.4Lb | 252kg/555.6Lb |
| UpperPart Overall Height | 370mm/14.6″ | 380mm/15.0″ | 400mm/15.7″ | 440mm/17.3″ |
| LowerPart Overall Height | 345mm/13.6″ | 345mm/13.6″ | 380mm/15.0″ | 405mm/15.9″ |
| Overall Height with wheels | 805mm/31.6″ | 805mm/31.6″ | 865mm/34.0″ | 925mm/36.4″ |
| Overall Length | 2735mm/107.6″ | 3035mm/119.4″ | 3335mm/131.2″ | 3635mm/143.1″ |
| Max Pressure | 2bar /28PSI | |||
| Max Temperature | 200℃/390F | 200℃/390F | 200℃/390F | 200℃/390F |
| Power | 8.8KW | 9.5KW | 10KW | 10.8KW |
| Packing List | 2940*500*720(mm) | 3300*600*660(mm) | 3390*550*1020(mm) | 3690*600*1020(mm) |
| Packing List | 115.7″*19.7″*28.3″ | 129.9″*23.6″*26.0″ | 133.5″*21.7″*40.2″ | 145.3″*23.6″*40.2″ |

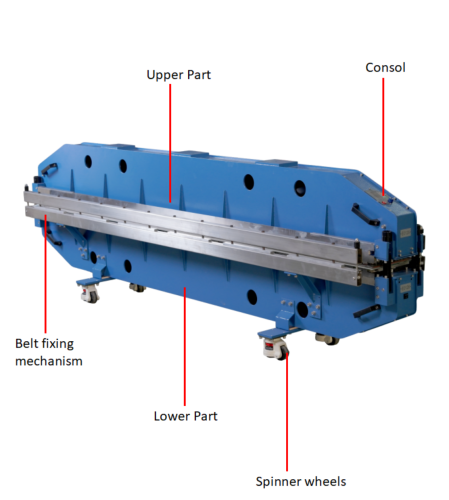

Product Structure Diagram
Why Choose HOLO
Reliable Extra-Wide Belt Splicing Machine
Although manufactured in China, the PA-Ⅲ is designed, assembled, and tested according to international industrial quality standards, comparable to European and American benchmarks.
Key advantages include:
-
Rapid 8–15 minute splicing cycle for large belts
-
Supports extra-wide belts from 2100–4200 mm
-
Air-cooling system for uniform and fast cooling
-
Intelligent control for precision and safety
-
Durable construction for industrial use
HOLO delivers precision, safety, and operational convenience for professional extra-wide belt splicing.
Quality Control & Factory Inspection
Each PA-Ⅲ undergoes a dual-stage factory inspection:
-
Pre-storage inspection
Checks mechanical stability, air-cooling performance, and electrical safety. -
Pre-shipment inspection
Confirms splice quality, speed, cooling uniformity, and overall operational reliability.
This ensures each machine meets HOLO quality standards.
Warranty & After-Sales Support
HOLO provides a 12-month warranty from shipment date.
During the warranty period:
-
Technical support and troubleshooting
-
Spare parts for quality-related issues
-
Remote assistance via email, phone, WhatsApp, or video guidance
Long-term technical support remains available after the warranty period.
FAQ & Support
Q1: What belt widths can the PA-Ⅲ process?
A: PVC and PU belts ranging from 2100 mm to 4200 mm.
Q2: How fast is the splicing process?
A: Completed in 8–15 minutes per splice, depending on belt type and thickness.
Q3: Is operation easy and safe?
A: Yes, the intelligent digital control system ensures precise, safe, and user-friendly operation.
Q4: Can the machine handle large industrial belts efficiently?
A: Yes, designed specifically for extra-wide industrial belts beyond traditional machine capacity.
Q5: What warranty and support does HOLO provide?
A: 12-month warranty, technical support, spare parts, and long-term after-sales service.
Contact HOLO
For technical consultation, extra-wide belt splicing solutions, or after-sales support, contact HOLO directly.
Our expert team ensures your 2100–4200 mm conveyor belt operations are precise, safe, and efficient.
