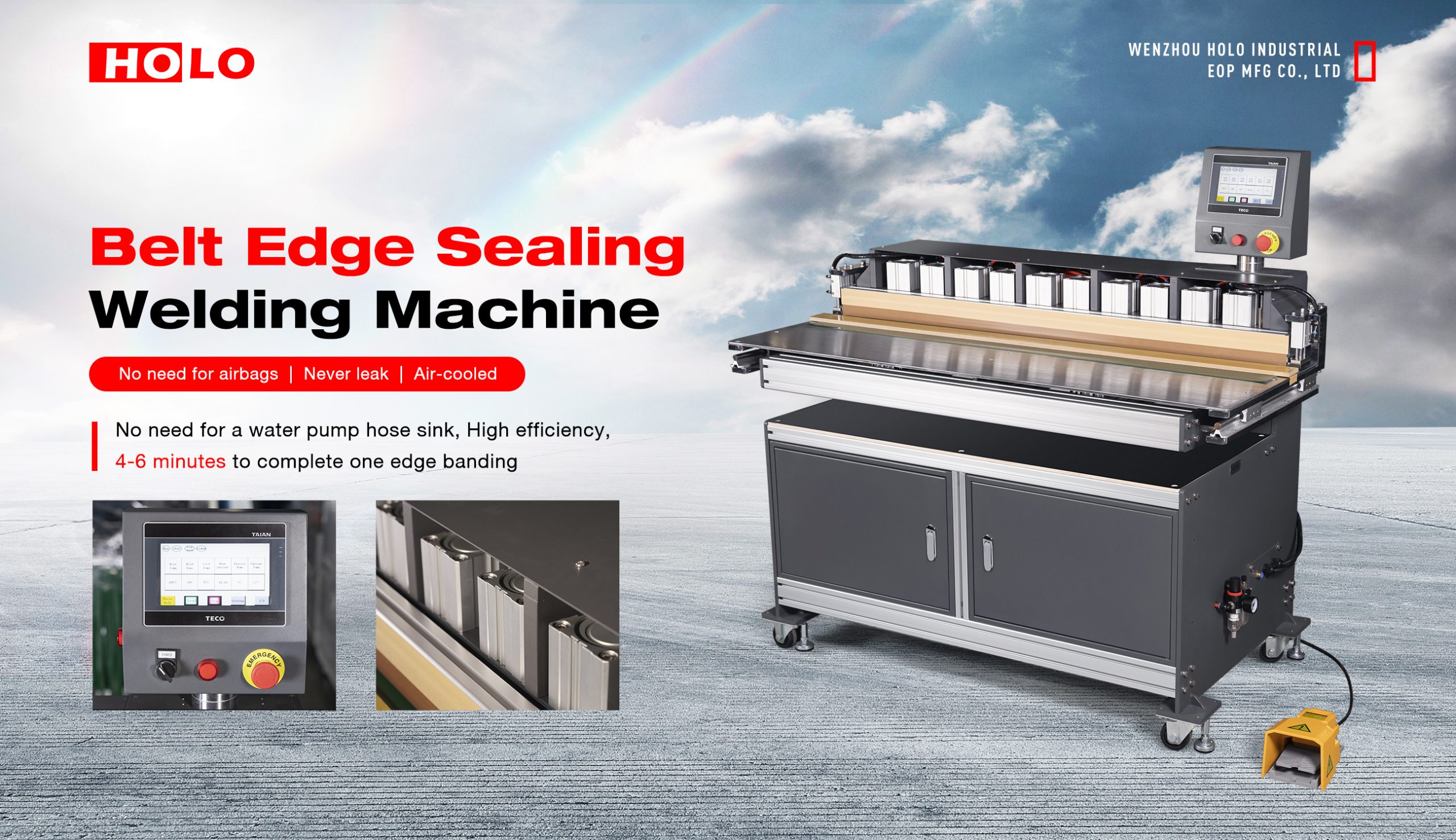

Belt Edge Sealing Welding Machine QD1200-1500
Fast, leak-proof edge sealing with a simple and maintenance-friendly air-cooled design.
No Airbags Required
Simplifies setup and reduces maintenance.100% Leak-Proof Sealing
Strong, durable edge protection.Air-Cooled System
No water, pumps, or hoses needed.Fast Cycle (4–6 min)
Higher efficiency and throughput.Easy to Operate & Maintain
Reliable for continuous industrial use.
Application Areas
Technical Specifications
| Product Name | Edge Sealing Machine | ||||
|---|---|---|---|---|---|
| Machine Parameters | 1200Edge Sealing Machine | 1500Edge Sealing Machine | 100Edge Sealing Machine | 200Edge Sealing Machine | 500Edge Sealing Machine |
| Power | 1.8kw | 2kw | 500w | 700w | 1200w |
| Voltage | 220v | ||||
| Applicable Belt | pu pvc | ||||
| Belt Edge Sealing Time | 3-5min | ||||
| Minimum Belt Thickness | 0.8mm | ||||
| Maximum Belt Thickness | 3-5mm | ||||
| Effective Heating Width | 1200*10mm | 1500*10mm | 80*10mm | 200*10mm | 500*10mm |
| Cooling Medium | Air Cooling | ||||
| Machine Weight | 350kg | 400kg | 150kg | 150kg | 150kg |
| Package Weight | / | / | / | / | / |
| Specifications | 1500*700*1400mm | 800*700*1400mm | 700*700*1200 | 700*700*1200 | 700*700*1200 |
| Extrusion Dimensions (Belt Thickness÷2) | 0.8=0.8÷2 | ||||
| Minimum Circumference of Endless Belt | 3300mm | 3900mm | 400mm | 650mm | 1250mm |
| Matching | Silicone Cloth Teflon Backing Plate Electric Heating Plate (4 units) | ||||
Why Choose HOLO
Efficient & Leak-Proof Belt Edge Sealing
HOLO develops belt processing equipment with a focus on efficiency, safety, and durability:
Air-cooled, water-free design for clean operation
Leak-proof edge sealing ensures long-lasting belt performance
High-speed sealing, completing cycles in 4–6 minutes
No airbag system required, reducing maintenance and setup
Simple operation suitable for all skill levels
Although manufactured in China, HOLO machines are engineered and tested to benchmark the quality standards of leading European and American brands, ensuring reliable and high-efficiency belt edge sealing.
Quality Control & Factory Inspection
Dual Inspection System
Each Belt Edge Sealing Welding Machine undergoes:
Pre-assembly inspection to verify heating plates, edge sealing alignment, and air-cooling performance
Pre-shipment inspection to ensure leak-proof sealing, operational efficiency, and stable cycle times
This ensures high-quality, safe, and efficient edge sealing for industrial conveyor belts.
After-Sales Service & Support
Warranty: 1 year
Support Services: Installation guidance, operator training, and technical consultation
Special Applications: HOLO engineering team supports customized belt edge sealing solutions
FAQ & Support
Q1: Does this machine require airbags?
A: No. The machine operates without airbags, simplifying setup and maintenance.
Q2: Is the edge sealing leak-proof?
A: Yes. The machine is designed for complete leak-proof sealing, ensuring durable belt edges.
Q3: Does it use water for cooling?
A: No. It uses an air-cooled system, eliminating the need for water pumps, hoses, or tanks.
Q4: How long does one sealing cycle take?
A: Each cycle takes 4–6 minutes, depending on belt size.
Q5: Can HOLO customize the machine for special belt types?
A: Yes. Our engineering team can provide tailored solutions for different belt widths, materials, or production requirements.
