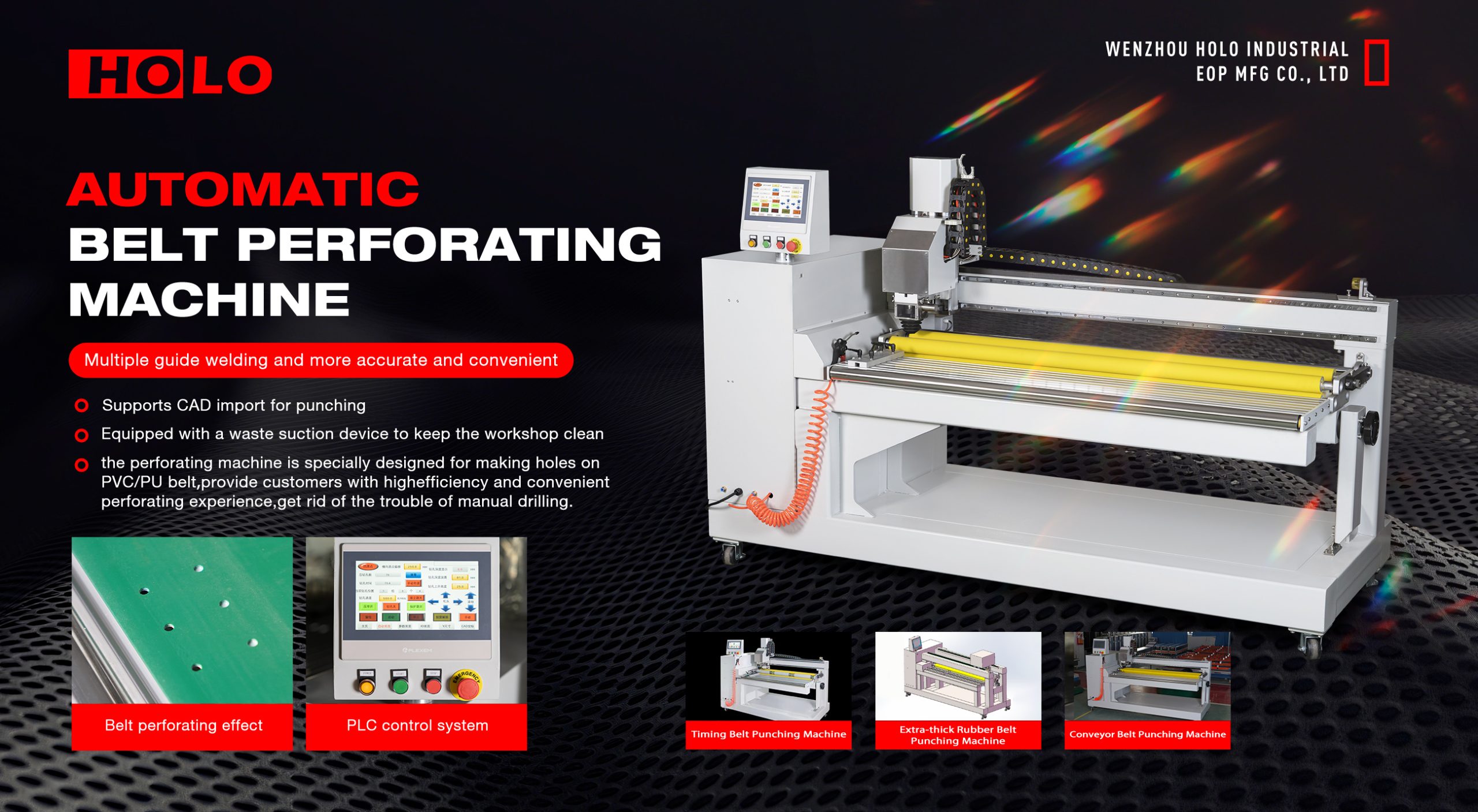

Rubber Conveyor Belt Perforating Machine TD1100-2100(H)
CAD-Controlled Perforating Machine
For Thick Rubber Conveyor Belts
Belt Thickness ≤16 mm (Std.)
Stable perforating for thick rubber beltsCAD File Input
Automatic, repeatable hole positioningAutomated Operation
High efficiency, no manual drillingIntegrated Waste Suction
Clean, continuous processingOptional Heavy-Duty Version
17–25 mm rubber belts
.
Application Areas
Technical Specifications
| Class C Punching Machine | |||||
|---|---|---|---|---|---|
| Machine Parameters | 1.1m | 1.6m | 2.1m | 2.6m | 3.2m |
| Power | 3.5kw | ||||
| Motor | Four 750W Servo Motors | ||||
| Voltage | 220v | ||||
| Air Pressure | 0.5 Mpa | ||||
| Applicable Belt | PU/PVC/片基带 | ||||
| Minimum Belt Thickness | 1mm | ||||
| Maximum Belt Thickness | 10mm (15mm for reinforced rubber belts) | ||||
| Punching Speed | Maximum 1.5 units/second (Speed is affected by hole spacing, etc.) | ||||
| Punching Size | φ2-φ20mm（Standard: 3 units（φ2-φ15Optional: 3 units）） | ||||
| Minimum Endless Belt Circumference | 800mm | ||||
| Dust Collection (Standard) | 1800w Vacuum cleaner | ||||
| Minimum Error | 1000mm with 1mm error (Error can be calibrated through the program) | ||||
| Belt Width | ≤1100mm | ≤1600mm | ≤2100mm> | ≤2600mm | ≤3200mm |
| Machine Weight | 815kg | 915kg | 1015kg | 1115kg | 1300kg |
| Machine Dimensions | 1950*1000*1600 | 2450*1000*1600 | 2950*1000*16000 | 3450*1000*1600 | 4050*1000*1600 |
Why Choose HOLO
Reliable Solutions for Heavy-Duty Belt Processing
HOLO specializes in conveyor belt processing equipment designed for durability, precision, and practical industrial use.
Engineered specifically for rubber belt perforating
CAD-controlled automation for consistent results
Clean and efficient operation
Custom solutions for thicker and special belt requirements
Designed for long-term industrial reliability
Although manufactured in China, HOLO equipment is engineered and tested to benchmark the quality standards of leading European and American brands.
Quality Control & Factory Inspection
Dual Inspection Process
Each Rubber Conveyor Belt Perforating Machine undergoes:
Pre-storage inspection after assembly
Pre-shipment inspection before delivery
This ensures stable mechanical performance, accurate perforation, and reliable electrical systems.
After-Sales Service & Support
Warranty: 1 year
Support Services: Installation guidance, operator training, and technical consultation
Complex Applications: Customized perforation solutions supported by HOLO’s engineering team
FAQ & Support
Q1: What is the maximum belt thickness supported?
A: Standard configuration supports rubber belts up to 16 mm. Custom solutions are available for 17–25 mm belts.
Q2: Does the machine support CAD drawings?
A: Yes. CAD files can be imported for accurate and repeatable hole punching.
Q3: How does it improve efficiency compared to manual drilling?
A: It greatly reduces labor effort while improving accuracy, speed, and consistency.
Q4: Is waste handled automatically during perforation?
A: Yes. The integrated suction system removes debris during operation.
Q5: Can HOLO handle special or heavy-duty applications?
A: Yes. Our engineering team can provide customized solutions for complex rubber belt perforating requirements.
