Aluminum Body Water Cooling Belt Splicing Press(PVC / PU) PC2100-5200
Water-Cooled Belt Splicing Machine for PVC & PU Belts
Fast and durable splicing solution for wide industrial conveyor belts.
-

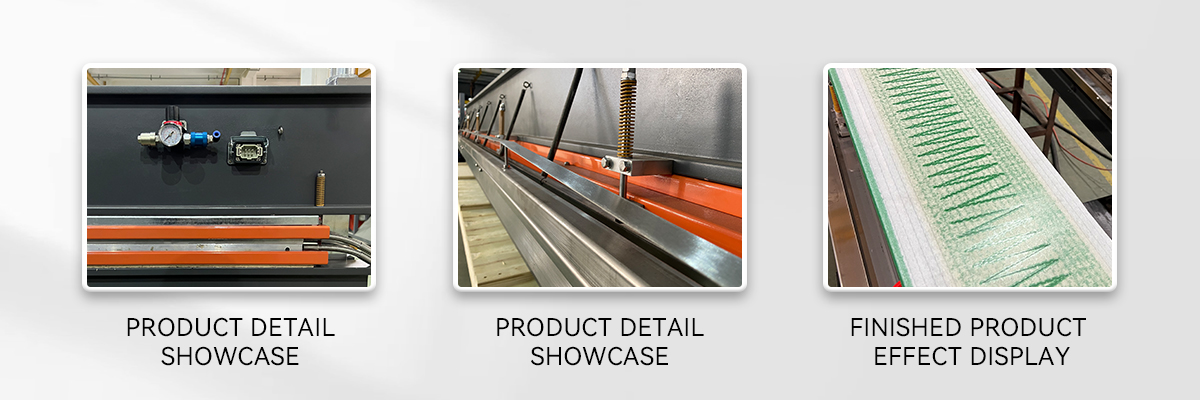

Lightweight Aluminum Frame
Strong, stable, easy to assemble. -
Laser Silicone Heating Plate
150 mm heating width (customizable). -
Fast Water Cooling
180°C → 60°C in 3–5 minutes. -
Airbag Pressure Control
0–0.3 MPa uniform pressure. -
Wide Belt Capability
Suitable for belts up to 4200 mm. -
Automatic Control & Multi-Voltage
220V / 380V, other voltages optional.
Application Areas
Technical Specifications
| Machine Parameters | PC2100-150 Small Well-Type Water Cooling | PC2100-200 Small Well-Type Water Cooling | PC2600-150 Small Well-Type Water Cooling | PC2600-200 Small Well-Type Water Cooling | PC3200-150Large Well-Type Water Cooling | PC3200-200Large Well-Type Water Cooling | PC3600-150Large Well-Type Water Cooling | PC3600-200Large Well-Type Water Cooling | PC4200-150Large Well-Type Water Cooling | PC4200-200Large Well-Type Water Cooling |
|---|---|---|---|---|---|---|---|---|---|---|
| Total Power | 8kw | 8.5kw | 10kw | 12kw | 12kw | 14.4kw | 13.5kw | 16kw | 15.6kw | 16.3kw |
| Heating Plate Power | 7.5kw | 8kw | 9.5kw | 11.5kw | 11.5kw | 13.8kw | 13kw | 15.6kw | 15.1kw | 15.8kw |
| Heating Plate Specifications | 2100*130 | 2100*170 | 2600*130 | 2700*170 | 3300*130 | 3300*170 | 3700*130 | 3700*170 | 4300*130 | 4300*170 |
| Heating Plate Voltage | 220v | 220v | 380v | 380v | 380v | 380v | 380v | 380v | 380v | 380v |
| Maximum Temperature | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ | 200℃ |
| Machine Voltage | 220v/380v | 220v/380v | 380v (220v not available) | 380v (220v not available) | 380v (220v not available) | 380v (220v not available) | 380v (220v not available) | 380v (220v not available) | 380v (220v not available) | 380v (220v not available) |
| Maximum Air Pressure | 2Bar | 2Bar | 2Bar | 2Bar | 2Bar | 2Bar | 2Bar | 2Bar | 2Bar | 2Bar |
| Applicable Belts | pu pvc | pu pvc | pu pvc | pu pvc | pu pvc | pu pvc | pu pvc | pu pvc | pu pvc | pu pvc |
| Belt Jointing Time | 28min | 28min | 28min | 28min | 28min | 28min | 28min | 28min | 28min | 28min |
| Minimum Belt Thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm |
| Maximum Belt Thickness | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm |
| Effective Heating Width | 2000*130mm | 2000*170mm | 2400*130mm | 2550*170mm | 3100*130mm | 3100*170mm | 3500*130mm/3400*130mm | 3500*170mm/3400*170mm | 4000*130mm | 4000*170mm |
| Accessories Included | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) | Silicone Cloth / PTFE (Teflon) |
| Heating Duration | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes | PU heating for 20 minutes, insulation for 3 minutes, cooling for 3 minutes |
| Cooling Medium | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Upper Mold Weight | 95kg | 105kg | 125kg | 145kg | 195kg | 210kg | 210kg | 230kg | 240kg+60kg | 260kg+60kg |
| Lower Mold Weight | 125kg | 140kg | 170kg | 210kg | 265kg | 280kg | 285kg | 310kg | 325kg+60kg | 360kg+60kg |
| Machine Weight | 220kg | 245kg | 295kg | 356kg | 460kg | 490kg | 495kg | 540kg | 565kg+120kg | 620kg+120kg |
| Packing Weight | / | / | / | / | / | / | / | / | / | / |
| Specifications | 2400*340*540mm | 2400*390*540mm | 2900*325*610mm | 3000*390*627mm | 3600*340*705mm | 3600*390*705mm | 4000*340*705mm | 4000*380*705mm | 4600*340*705mm | 4600*380*705mm |
| Lower Mold Height | 222mm | 222m | 252m | 310mm | 305mm | 305mm | 305mm | 305mm | 305mm | 305mm |
| Extrusion Size （Belt Thickness ÷ 2） | / | / | / | / | / | / | / | / | / | / |
| Minimum Loop Circumference | 1000mm | 1150mm | 1050mm | 1300mm | 1200mm | 1260mm | 1200mm | 1260mm | 1200mm | 1260mm |
Why Choose HOLO
Efficient & Durable Belt Splicing Solutions
HOLO develops belt splicing equipment focusing on precision, durability, and operational efficiency:
-
Fast and uniform splicing for PVC, PU, and thermoplastic belts
-
Lightweight aluminum frame with integrated water cooling
-
Laser silicone heating plate ensures precise temperature distribution
-
Quick cooling reduces production downtime
-
Adjustable pneumatic pressure for reliable adhesion
-
Multi-voltage support and easy operation
Although manufactured in China, HOLO machines are designed and tested to benchmark the quality standards of leading European and American brands, ensuring reliable and precise belt jointing.
Quality Control & Factory Inspection
Dual Inspection System
Each Aluminum Body Water Cooling Belt Splicing Press undergoes:
-
Pre-assembly inspection to verify heating plate performance, pneumatic pressure, and mechanical integrity
-
Pre-shipment inspection to ensure uniform heating, cooling efficiency, and reliable operation
This guarantees high-quality, durable, and precise splicing performance.
After-Sales Service & Support
-
Warranty: 1 year
-
Support Services: Installation guidance, operator training, and technical consultation
-
Special Applications: HOLO engineering team supports customized splicing solutions for specific belt sizes or materials
FAQ & Support
Q1: What belt types is this machine suitable for?
A: Designed for PVC, PU, and thermoplastic polyester belts, including single-layer polyester belts.
Q2: What is the maximum belt width supported?
A: Supports belt widths from 2100mm up to 4200mm. Widths below 2100mm are recommended with stainless steel body machines.
Q3: How fast is the splicing and cooling process?
A: Heating to 180°C takes about 15–20 minutes; cooling to 60°C takes 3–5 minutes depending on machine size.
Q4: How is pressure applied during splicing?
A: Pneumatic airbags allow 0–0.3Mpa pressure, ensuring uniform and stable adhesion.
Q5: Is the machine easy to operate?
A: Yes. Automatic temperature control panel with timer ensures precise operation, and assembly is straightforward.
